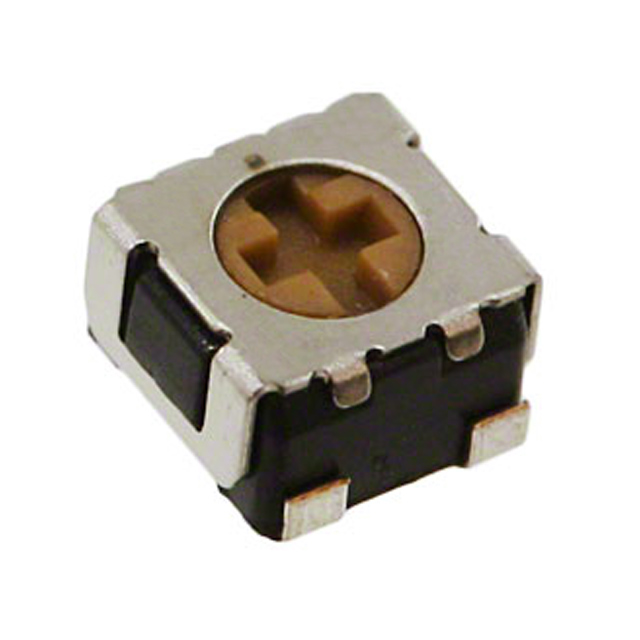

3203X501P

Obsolete

TE Connectivity Passive Product

TRIMMER 500 OHM 0.05W J LEAD TOP

Search across all available documentation for this part.

Obsolete

TE Connectivity Passive Product

TRIMMER 500 OHM 0.05W J LEAD TOP

Technical Specifications

Parameters and characteristics for this part

Part	Power (Watts)	Power (Watts)	Resistive Material	Adjustment Type	Termination Style	Number of Turns	Mounting Type	Resistance	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension	Size / Dimension [x]	Size / Dimension [y]	Temperature Coefficient	Tolerance
TE Connectivity Passive Product 3203X501P	0.05 W	50 mW	Cermet	Top Adjustment	J Lead	1	Surface Mount	500 Ohms	3.4 mm	0.134 in	Square - Face	0.134 "	3.4 mm	250 ppm/°C	25 %
TE Connectivity Passive Product 3203X204P	0.05 W	50 mW	Cermet	Top Adjustment	J Lead	1	Surface Mount	200000 Ohms	3.4 mm	0.134 in	Square - Face	0.134 "	3.4 mm	250 ppm/°C	25 %
TE Connectivity Passive Product 3203X504P	0.05 W	50 mW	Cermet	Top Adjustment	J Lead	1	Surface Mount		3.4 mm	0.134 in	Square - Face	0.134 "	3.4 mm	250 ppm/°C	25 %

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

500 Ohms 0.05W, 1/20W J Lead Surface Mount Trimmer Potentiometer Cermet 1.0 Turn Top Adjustment
