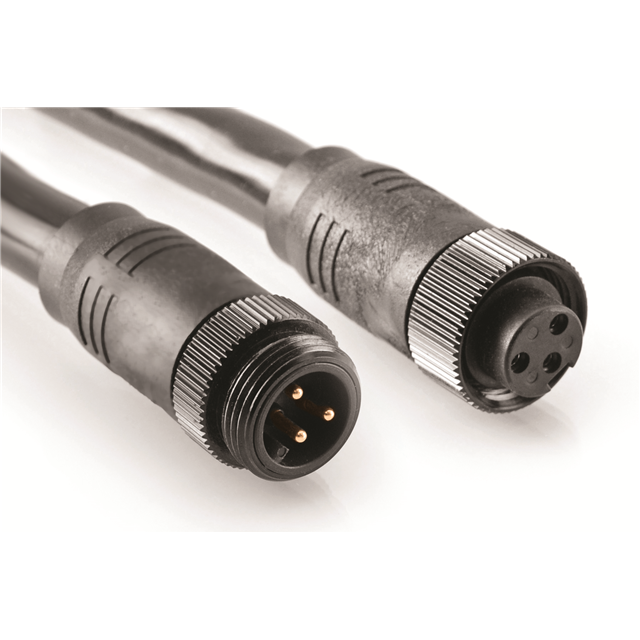

P29012-M1

Active

Amphenol Sine Systems Corp

CBL CIRC 3POS MALE TO FEM 3.28'

Search across all available documentation for this part.

Active

Amphenol Sine Systems Corp

CBL CIRC 3POS MALE TO FEM 3.28'

Technical Specifications

Parameters and characteristics for this part

Specification	P29012-M1

1st Connector Gender	Male Pins
1st Connector Mounting Type	Free Hanging (In-Line)
1st Connector Number of Positions	3
1st Connector Number of Positions Loaded	All
1st Connector Orientation [custom]	Keyed
1st Connector Shell Size - Insert	0.875 in
1st Connector Shell Size - Insert	M22
1st Connector Type	Receptacle
2nd Connector Gender	Female Sockets
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Connector Number of Positions	3
2nd Connector Number of Positions Loaded	All
2nd Connector Shell Size - Insert	0.875 "
2nd Connector Shell Size - Insert	M22
2nd Connector Type	Plug
Assembly Configuration	Standard
Cable Material	Polyvinyl Chloride (PVC)
Cable Type	Round
Color	Black
Ingress Protection	IP67 - Dust Tight, Waterproof
Length [x]	1 m
Length [x]	3.28 ft
Shielding	Unshielded
Usage	Industrial Environments

Part	2nd Connector Shell Size - Insert	2nd Connector Shell Size - Insert	1st Connector Mounting Type	1st Connector Number of Positions	Assembly Configuration	2nd Connector Mounting Type	1st Connector Type	2nd Connector Number of Positions Loaded	Ingress Protection	1st Connector Number of Positions Loaded	1st Connector Shell Size - Insert	1st Connector Shell Size - Insert	1st Connector Orientation [custom]	Shielding	Color	Usage	2nd Connector Type	1st Connector Gender	Length [x]	Length [x]	2nd Connector Gender	Cable Type	2nd Connector Number of Positions	Cable Material
Amphenol Sine Systems Corp P29012-M15	0.875 "	M22	Free Hanging (In-Line)	3	Standard	Free Hanging (In-Line)	Receptacle	All	IP67 - Dust Tight Waterproof	All	0.875 in	M22	Keyed	Unshielded	Black	Industrial Environments	Plug	Male Pins	15 m	49.2 ft	Female Sockets	Round	3	Polyvinyl Chloride (PVC)
Amphenol Sine Systems Corp P29012-M1	0.875 "	M22	Free Hanging (In-Line)	3	Standard	Free Hanging (In-Line)	Receptacle	All	IP67 - Dust Tight Waterproof	All	0.875 in	M22	Keyed	Unshielded	Black	Industrial Environments	Plug	Male Pins	1 m	3.28 ft	Female Sockets	Round	3	Polyvinyl Chloride (PVC)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	5	$ 73.02

General part information

Cable Assembly 3.28' (1.00m)
