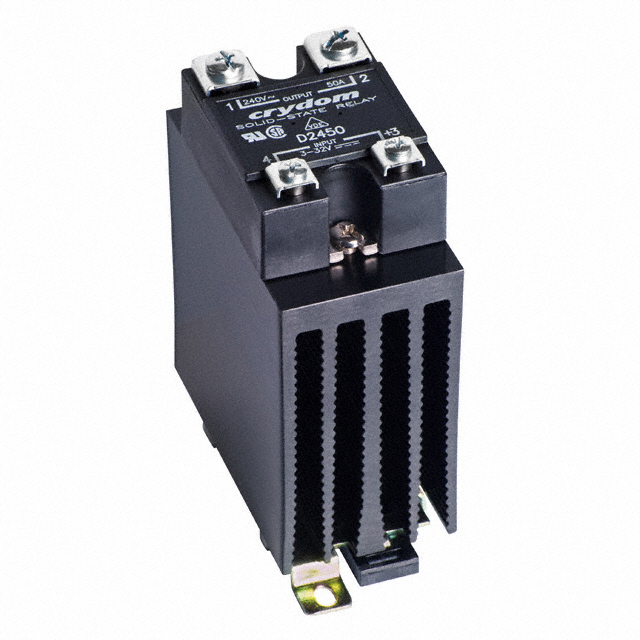

HS201DR-D2450
ActiveSensata-Crydom
SSR RELAY SPST-NO 35A 24-280V
HS201DR-D2450
ActiveSensata-Crydom
SSR RELAY SPST-NO 35A 24-280V
Description
General part information
HS201 Series
Solid State SPST-NO (1 Form A) Hockey Puck with Heat Sink
Technical Specifications
Parameters and characteristics for this part
| Specification | HS201DR-D2450 |
|---|---|
| Approval Agency | CSA, UL, CE, VDE |
| Circuit | SPST-NO (1 Form A) |
| Load Current | 35 A |
| Mounting Type | DIN Rail |
| Operating Temperature (Max) | 80 °C |
| Operating Temperature (Min) | -40 °C |
| Output Type | AC, Zero Cross |
| Package / Case | Hockey Puck with Heat Sink |
| Termination Style | Screw Terminal |
| Voltage - Input (DC) Maximum | 32 VDC |
| Voltage - Input (DC) Minimum | 3 VDC |
| Voltage - Load (Max) | 280 V |
| Voltage - Load (Min) | 24 V |
