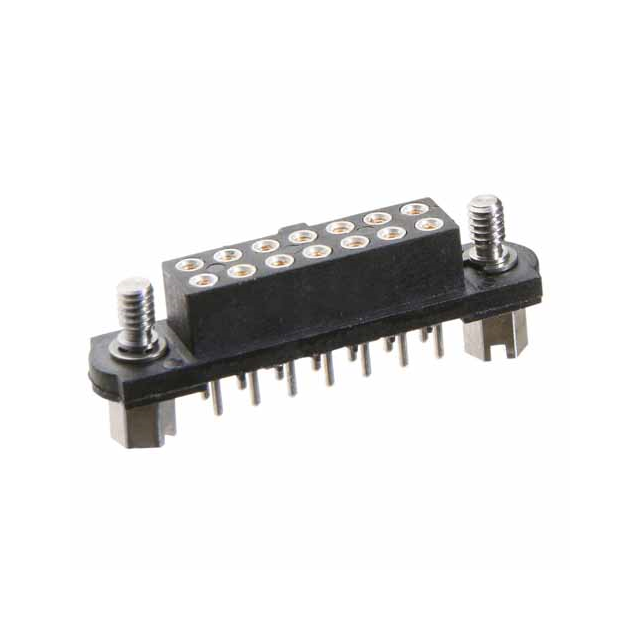

M80-4002242
ActiveHarwin Inc.
CONN RCPT 22POS 0.079 GOLD PCB
Deep-Dive with AI
Search across all available documentation for this part.
M80-4002242
ActiveHarwin Inc.
CONN RCPT 22POS 0.079 GOLD PCB
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | M80-4002242 |
|---|---|
| Applications | Automotive, Military, General Purpose |
| Connector Type | Receptacle |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | 12 µin |
| Contact Finish Thickness - Mating | 0.3 µm |
| Contact Finish Thickness - Post | 137.8 Áin |
| Contact Finish Thickness - Post | 3.5 Ám |
| Contact Length - Post | 0.118 in |
| Contact Length - Post | 3 mm |
| Contact Material | Beryllium Copper |
| Contact Shape | Circular |
| Contact Type | Female Socket |
| Features | Polarizing Key, Mounting Flange, Jackscrews, Mating Flange |
| Insulation Color | Black |
| Insulation Height | 0.205 in |
| Insulation Height | 5.2 mm |
| Insulation Material | Polyphenylene Sulfide (PPS), Glass Filled |
| Mated Stacking Heights | 7.3 mm, 7.55 mm |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions | 22 positions |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pitch - Mating [x] | 0.079 in |
| Pitch - Mating [x] | 2 mm |
| Row Spacing - Mating | 0.079 in |
| Row Spacing - Mating | 2 mm |
| Style | Board to Board, Cable |
| Termination | Solder |
| Voltage Rating | 120 VDC |
M80-400 Series
| Part | Number of Rows | Termination | Features | Connector Type | Number of Positions Loaded | Contact Finish - Mating | Contact Length - Post | Contact Length - Post | Number of Positions | Contact Type | Insulation Color | Insulation Height | Insulation Height | Style | Contact Shape | Contact Material | Mounting Type | Contact Finish - Post | Operating Temperature [Min] | Operating Temperature [Max] | Material Flammability Rating | Insulation Material | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Pitch - Mating [x] | Pitch - Mating [x] | Voltage Rating | Applications | Row Spacing - Mating | Row Spacing - Mating | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Mated Stacking Heights |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Harwin Inc. | 2 | Solder | Jackscrews Mating Flange Mounting Flange Polarizing Key | Receptacle | All | Gold | 0.118 in | 3 mm | 28 | Female Socket | Black | 0.205 in | 5.2 mm | Board to Board Cable | Circular | Beryllium Copper | Through Hole | Tin | -55 °C | 125 °C | UL94 V-0 | Polyphenylene Sulfide (PPS) Glass Filled | 137.8 Áin | 3.5 Ám | 0.079 in | 2 mm | 120 VDC | Automotive General Purpose Military | 0.079 in | 2 mm | 12 µin | 0.3 µm | 7.3 mm 7.55 mm |
Harwin Inc. | 2 | Solder | Jackscrews Mating Flange Mounting Flange Polarizing Key | Receptacle | All | Gold | 0.118 in | 3 mm | 18 | Female Socket | Black | 0.205 in | 5.2 mm | Board to Board Cable | Circular | Beryllium Copper | Through Hole | Tin-Lead | -55 °C | 125 °C | UL94 V-0 | Polyphenylene Sulfide (PPS) Glass Filled | 137.8 Áin | 3.5 Ám | 0.079 in | 2 mm | 120 VDC | Automotive General Purpose Military | 0.079 in | 2 mm | 12 µin | 0.3 µm | 7.3 mm 7.55 mm |
Harwin Inc. | 2 | Solder | Jackscrews Mating Flange Mounting Flange Polarizing Key | Receptacle | All | Gold | 0.118 in | 3 mm | 10 | Female Socket | Black | 0.205 in | 5.2 mm | Board to Board Cable | Circular | Beryllium Copper | Through Hole | Tin | -55 °C | 125 °C | UL94 V-0 | Polyphenylene Sulfide (PPS) Glass Filled | 137.8 Áin | 3.5 Ám | 0.079 in | 2 mm | 120 VDC | Automotive General Purpose Military | 0.079 in | 2 mm | 12 µin | 0.3 µm | 7.3 mm 7.55 mm |
Harwin Inc. | 2 | Solder | Jackscrews Mating Flange Mounting Flange Polarizing Key | Receptacle | All | Gold | 0.118 in | 3 mm | 36 | Female Socket | Black | 0.205 in | 5.2 mm | Board to Board Cable | Circular | Beryllium Copper | Through Hole | Gold | -55 °C | 125 °C | UL94 V-0 | Polyphenylene Sulfide (PPS) Glass Filled | 10 çin | 0.25 çm | 0.079 in | 2 mm | 120 VDC | Automotive General Purpose Military | 0.079 in | 2 mm | 12 µin | 0.3 µm | 7.3 mm 7.55 mm |
Harwin Inc. | 2 | Solder | Jackscrews Mating Flange Mounting Flange Polarizing Key | Receptacle | All | Gold | 0.118 in | 3 mm | 22 positions | Female Socket | Black | 0.205 in | 5.2 mm | Board to Board Cable | Circular | Beryllium Copper | Through Hole | Tin | -55 °C | 125 °C | UL94 V-0 | Polyphenylene Sulfide (PPS) Glass Filled | 137.8 Áin | 3.5 Ám | 0.079 in | 2 mm | 120 VDC | Automotive General Purpose Military | 0.079 in | 2 mm | 12 µin | 0.3 µm | 7.3 mm 7.55 mm |
Harwin Inc. | 2 | Solder | Jackscrews Mating Flange Mounting Flange Polarizing Key | Receptacle | All | Gold | 0.118 in | 3 mm | 20 | Female Socket | Black | 0.205 in | 5.2 mm | Board to Board Cable | Circular | Beryllium Copper | Through Hole | Tin | -55 °C | 125 °C | UL94 V-0 | Polyphenylene Sulfide (PPS) Glass Filled | 137.8 Áin | 3.5 Ám | 0.079 in | 2 mm | 120 VDC | Automotive General Purpose Military | 0.079 in | 2 mm | 12 µin | 0.3 µm | 7.3 mm 7.55 mm |
Harwin Inc. | 2 | Solder | Jackscrews Mating Flange Mounting Flange Polarizing Key | Receptacle | All | Gold | 0.118 in | 3 mm | 8 | Female Socket | Black | 0.205 in | 5.2 mm | Board to Board Cable | Circular | Beryllium Copper | Through Hole | Gold | -55 °C | 125 °C | UL94 V-0 | Polyphenylene Sulfide (PPS) Glass Filled | 10 çin | 0.25 çm | 0.079 in | 2 mm | 120 VDC | Automotive General Purpose Military | 0.079 in | 2 mm | 12 µin | 0.3 µm | 7.3 mm 7.55 mm |
Harwin Inc. | 2 | Solder | Jackscrews Mating Flange Mounting Flange Polarizing Key | Receptacle | All | Gold | 0.118 in | 3 mm | Female Socket | Black | 0.205 in | 5.2 mm | Board to Board Cable | Circular | Beryllium Copper | Through Hole | Tin | -55 °C | 125 °C | UL94 V-0 | Polyphenylene Sulfide (PPS) Glass Filled | 137.8 Áin | 3.5 Ám | 0.079 in | 2 mm | 120 VDC | Automotive General Purpose Military | 0.079 in | 2 mm | 12 µin | 0.3 µm | 7.3 mm 7.55 mm | |
Harwin Inc. | 2 | Solder | Jackscrews Mating Flange Mounting Flange Polarizing Key | Receptacle | All | Gold | 0.118 in | 3 mm | 50 | Female Socket | Black | 0.205 in | 5.2 mm | Board to Board Cable | Circular | Beryllium Copper | Through Hole | Tin | -55 °C | 125 °C | UL94 V-0 | Polyphenylene Sulfide (PPS) Glass Filled | 137.8 Áin | 3.5 Ám | 0.079 in | 2 mm | 120 VDC | Automotive General Purpose Military | 0.079 in | 2 mm | 12 µin | 0.3 µm | 7.3 mm 7.55 mm |
Harwin Inc. | 2 | Solder | Jackscrews Mating Flange Mounting Flange Polarizing Key | Receptacle | All | Gold | 0.118 in | 3 mm | 26 | Female Socket | Black | 0.205 in | 5.2 mm | Board to Board Cable | Circular | Beryllium Copper | Through Hole | Gold | -55 °C | 125 °C | UL94 V-0 | Polyphenylene Sulfide (PPS) Glass Filled | 10 çin | 0.25 çm | 0.079 in | 2 mm | 120 VDC | Automotive General Purpose Military | 0.079 in | 2 mm | 12 µin | 0.3 µm | 7.3 mm 7.55 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
M80-400 Series
22 Position Receptacle Connector 0.079" (2.00mm) Through Hole Gold
