Specification	1300170058

Cable Opening (Max)	0.48 in
Cable Opening (Min)	0.2 in
Color	Black, Silver
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Current Rating	15 A
Fastening Type	Threaded
Features	Backshell
Ingress Protection Description	Waterproof, Dust Tight
Ingress Protection IP Rating	IP67
Mounting Type	Free Hanging (In-Line)
Number of Positions	4
Operating Temperature (Max)	80 °C
Operating Temperature (Min)	-20 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Brass
Shielding	Unshielded
Termination	Screw
Voltage Rating	600 V
Voltage Rating (Type)	DC

130017 Series

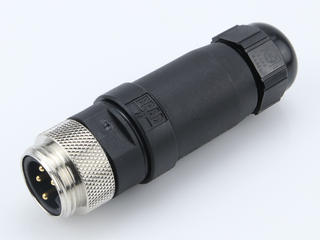

Mini-Change Field Attachable, Male Connector, 4 Pole, Cable Range: 5.08-12.19mm Outside Diameter with External Threads

Part	Fastening Type	Termination	Connector Type	Operating Temperature (Min)	Operating Temperature (Max)	Shell Material	Contact Finish - Mating	Shielding	Current Rating	Color	Primary Material	Number of Positions	Voltage Rating	Voltage Rating (Type)	Cable Opening (Min)	Cable Opening (Max)	Shell Finish	Features	Ingress Protection Description	Ingress Protection IP Rating	Orientation	Mounting Type	Insert Material	Applications	Backshell Material, Plating	Contact Material
Molex 1300170058	Threaded	Screw	Male Pins Receptacle	-20 °C	80 °C	Brass	Gold	Unshielded	15 A	Black Silver	Metal	4	600 V	DC	0.2 in	0.48 in	Nickel	Backshell	Dust Tight Waterproof	IP67	Keyed	Free Hanging (In-Line)
Molex 1300170005	Threaded	Screw	Female Sockets Plug	-20 °C	80 °C	Stainless Steel	Gold	Unshielded	13 A	Black Silver	Metal	3	600 V	DC	0.2 in	0.45 in	Passivated	Backshell Coupling Nut	Dust Tight Waterproof	IP67	Keyed	Free Hanging (In-Line)	Nylon PA Polyamide	Industrial	Nylon Polyamide (PA)	Copper Alloy
Molex 1300170027	Threaded	Screw	Male Pins Plug	-20 °C	80 °C	Stainless Steel	Gold	Shielded	8 A	Black	Metal	5	600 V	DC	0.2 in	0.45 in		Backshell Coupling Nut	Dust Tight Waterproof	IP67	Keyed	Free Hanging (In-Line)	Nylon PA Polyamide		Stainless Steel	Copper Alloy
Molex 1300170017	Threaded	Screw	Female Sockets Plug	-20 °C	80 °C	Brass	Gold	Unshielded	15 A	Black Silver	Metal	4	600 V	DC	0.2 in	0.48 in	Nickel	Backshell Coupling Nut	Dust Tight Waterproof	IP67	Keyed	Free Hanging (In-Line)	Nylon PA Polyamide	Industrial	Nylon Polyamide (PA)	Copper Alloy
Molex 1300170026
Molex 1300170024	Threaded	Screw	Female Sockets Plug	-20 °C	80 °C	Stainless Steel	Gold		8 A	Black Silver	Metal	5	600 V	DC	0.2 in	0.45 in	Passivated	Backshell Coupling Nut	Dust Tight Waterproof	IP67	Keyed	Free Hanging (In-Line)	Nylon PA Polyamide	Industrial	Nylon Polyamide (PA)	Copper Alloy
Molex 1300170020	Threaded	Screw	Male Pins Receptacle	-20 °C	80 °C	Brass	Gold			Black Silver	Metal	4	600 V	DC	0.2 in	0.45 in	Nickel	Backshell	Dust Tight Waterproof	IP67	Keyed	Free Hanging (In-Line)
Molex 1300170057	Threaded	Screw	Female Sockets Plug	-25 °C	80 °C	Nylon Polyamide (PA)	Gold	Unshielded	15 A	Silver	Metal	4	600 V					Backshell Coupling Nut	Dust Tight Waterproof	IP67	Keyed	Free Hanging (In-Line)	Nylon PA Polyamide	Industrial	Nylon Polyamide (PA)	Copper Alloy
Molex 1300170062	Threaded	Screw	Male Pins Plug	-20 °C	80 °C	Nylon Polyamide (PA)	Gold	Unshielded	15 A	Black	Plastic	3	600 V	DC	0.236 in	0.472 in		Backshell Coupling Nut	Dust Tight Waterproof	IP67	Keyed	Free Hanging (In-Line)	Nylon PA Polyamide		Stainless Steel	Brass
Molex 1300170055	Threaded	Screw	Female Sockets Plug	-20 °C	80 °C	Brass	Gold	Unshielded	15 A	Black Silver	Metal	3	600 V	DC	0.2 in	0.48 in	Nickel	Backshell Coupling Nut	Dust Tight Waterproof	IP67	Keyed	Free Hanging (In-Line)	Nylon PA Polyamide	Industrial	Nylon Polyamide (PA)	Copper Alloy
