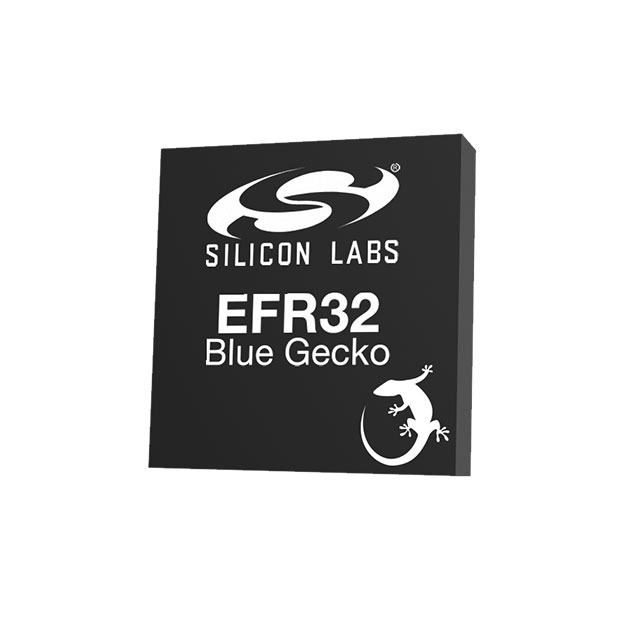

EFR32BG1V132F256GJ43-C0R

Obsolete

Silicon Labs

IC RF TXRX+MCU BLE 43CSP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsA-00000388 Security Advisory Datasheet +1

EFR32BG1V132F256GJ43-C0R

Obsolete

Silicon Labs

IC RF TXRX+MCU BLE 43CSP

Deep-Dive with AI

DocumentsA-00000388 Security Advisory Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	EFR32BG1V132F256GJ43-C0R

Current - Receiving	8.7 mA
Current - Transmitting	8.2 mA
Data Rate (Max)	2 Mbps
Frequency	2.4 GHz
GPIO	19
Memory Size [custom]	16 kB
Memory Size [custom]	256 kB
Modulation	DSSS, OQPSK, GMSK, GFSK, 4FSK, 2FSK
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	43-UFBGA, CSPBGA
Power - Output	19.5 dBm
Protocol	Bluetooth v4.0
RF Family/Standard	Bluetooth
Sensitivity	-99 dBm
Serial Interfaces	UART, I2C, SPI
Supplier Device Package	43-CSP (3.3x3.14)
Type	TxRx + MCU
Voltage - Supply [Max]	3.8 V
Voltage - Supply [Min]	1.85 V

EFR32BG1V132 Series

Part	Voltage - Supply [Min]	Voltage - Supply [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Sensitivity	Current - Transmitting [Min]	Current - Transmitting [Max]	Power - Output	Memory Size	Data Rate (Max)	Supplier Device Package	Current - Receiving	Package / Case	Protocol	Modulation	Type	RF Family/Standard	Serial Interfaces	Mounting Type	Frequency	GPIO	Memory Size [custom]	Memory Size [custom]	Current - Transmitting
Silicon Labs EFR32BG1V132F256GM32-B0	1.85 V	3.8 V	85 °C	-40 °C	-99.2 dBm	8.8 mA	133 mA	0 dBm	16 kB 128 kB	2 Mbps	32-QFN (5x5)	8.7 mA	32-VFQFN Exposed Pad	Bluetooth v4.0	2FSK 4FSK DSSS GFSK GMSK MSK O-QPSK	TxRx + MCU	Bluetooth	I2C UART USART	Surface Mount	2.4 GHz	16
Silicon Labs EFR32BG1V132F128GM32-C0	1.85 V	3.8 V	85 °C	-40 °C	-94 dBm	8.2 mA	126.7 mA	0 dBm	16 kB 128 kB	2 Mbps	32-QFN (5x5)	8.7 mA	32-VFQFN Exposed Pad	Bluetooth v4.0	2FSK 4FSK GFSK GMSK OQPSK	TxRx + MCU	Bluetooth	I2C I2S SPI UART	Surface Mount	2.4 GHz	16
Silicon Labs EFR32BG1V132F128GM48-C0R	1.85 V	3.8 V	85 °C	-40 °C	-94 dBm	8.2 mA	126.7 mA	0 dBm	16 kB 128 kB	2 Mbps	48-QFN (7x7)	8.7 mA	48-VFQFN Exposed Pad	Bluetooth v4.0	2FSK 4FSK GFSK GMSK OQPSK	TxRx + MCU	Bluetooth	I2C I2S SPI UART	Surface Mount	2.4 GHz	16
Silicon Labs EFR32BG1V132F256GJ43-C0R	1.85 V	3.8 V	85 °C	-40 °C	-99 dBm			19.5 dBm		2 Mbps	43-CSP (3.3x3.14)	8.7 mA	43-UFBGA CSPBGA	Bluetooth v4.0	2FSK 4FSK DSSS GFSK GMSK OQPSK	TxRx + MCU	Bluetooth	I2C SPI UART	Surface Mount	2.4 GHz	19	16 kB	256 kB	8.2 mA
Silicon Labs EFR32BG1V132F128GM32-B0R	1.85 V	3.8 V	85 °C	-40 °C	-99.2 dBm	8.8 mA	133 mA	0 dBm	16 kB 128 kB	2 Mbps	32-QFN (5x5)	8.7 mA	32-VFQFN Exposed Pad	Bluetooth v4.0	2FSK 4FSK DSSS GFSK GMSK MSK O-QPSK	TxRx + MCU	Bluetooth	I2C UART USART	Surface Mount	2.4 GHz	16
Silicon Labs EFR32BG1V132F256GM48-C0	1.85 V	3.8 V	85 °C	-40 °C	-94 dBm	8.2 mA	126.7 mA	0 dBm		2 Mbps	48-QFN (7x7)	8.7 mA	48-VFQFN Exposed Pad	Bluetooth v4.0	2FSK 4FSK GFSK GMSK OQPSK	TxRx + MCU	Bluetooth	I2C I2S SPI UART	Surface Mount	2.4 GHz	16	16 kB	256 kB

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

EFR32BG1V132F256GJ43-C0R

Deep-Dive with AI

EFR32BG1V132F256GJ43-C0R

Deep-Dive with AI

Technical Specifications

EFR32BG1V132 Series

Pricing

Description

EFR32BG1V132 Series

Documents

A-00000388 Security Advisory

Datasheet

A-00000447 Security Advisory

EFR32BG1V132 Series
