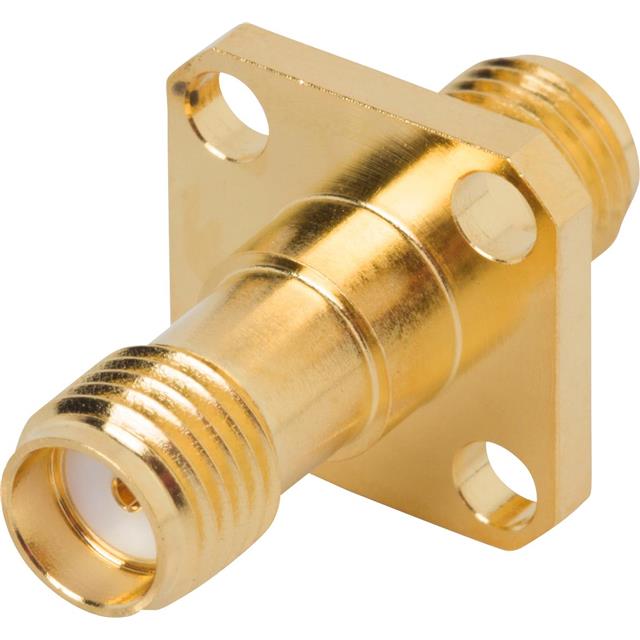

2991-6007

Active

Amphenol SV Microwave

CONN ADAPT JACK-JACK SMA 50 OHM

Search across all available documentation for this part.

Active

Amphenol SV Microwave

CONN ADAPT JACK-JACK SMA 50 OHM

Technical Specifications

Parameters and characteristics for this part

Specification	2991-6007

Adapter Series	SMA to SMA
Adapter Type	Jack to Jack
Body Finish	Gold
Body Material	Stainless Steel
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Center Gender	Female to Female
Conversion Type	Same Series
Convert From (Adapter End)	Female Socket, SMA Jack
Convert To (Adapter End)	SMA Jack, Female Socket
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	18 GHz
Impedance	50 Ohms
Mating Cycles	500
Mounting Feature	Flange
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-65 ░C
Style	Straight

Part	Body Material	Style	Mounting Feature	Frequency - Max [Max]	Conversion Type	Includes	Center Contact Plating	Impedance	Body Finish	Convert To (Adapter End)	Center Gender	Center Contact Material	Mating Cycles	Convert From (Adapter End)	Adapter Type	Adapter Series	Dielectric Material	Operating Temperature [Max]	Operating Temperature [Min]
Amphenol SV Microwave 2991-6002	Stainless Steel	Straight	Bulkhead	18 GHz	Same Series	1 Connector 1 Lockwasher 1 Nut	Gold	50 Ohms	Gold	Female Socket SMA Jack	Female to Female	Beryllium Copper	500	Female Socket SMA Jack	Jack to Jack	SMA to SMA	Polytetrafluoroethylene (PTFE)
Amphenol SV Microwave 2991-6007	Stainless Steel	Straight	Flange	18 GHz	Same Series		Gold	50 Ohms	Gold	Female Socket SMA Jack	Female to Female	Beryllium Copper	500	Female Socket SMA Jack	Jack to Jack	SMA to SMA	Polytetrafluoroethylene (PTFE)	125 °C	-65 ░C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Coaxial Connector SMA Jack, Female Socket To SMA Jack, Female Socket 50 Ohms
