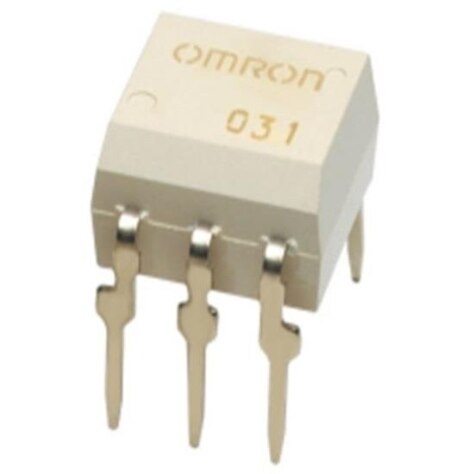

G3VM-101BR1

Active

SOLID STATE RELAYS - PCB MOUNT DA SIGNAL RELAY, MOSFET RELAY, HIGHER POWER, 3.5-A SWITCHING WITH A 100-V LOAD VOLTAGE, DIP6 PACKAGE. LOW 50 MO ON RESISTANCE.

Find alt

Alpha

G3VM-101BR1

Active

Omron Electronics Inc-EMC Div

SOLID STATE RELAYS - PCB MOUNT DA SIGNAL RELAY, MOSFET RELAY, HIGHER POWER, 3.5-A SWITCHING WITH A 100-V LOAD VOLTAGE, DIP6 PACKAGE. LOW 50 MO ON RESISTANCE.

Find alt

Alpha

Description Specifications Series Pricing CAD Documents

Description

General part information

G3VM Series

SOLID STATE RELAYS - PCB MOUNT DA SIGNAL RELAY, MOSFET RELAY, HIGHER POWER, 3.5-A SWITCHING WITH A 100-V LOAD VOLTAGE, DIP6 PACKAGE. LOW 50 MO ON RESISTANCE.

Technical Specifications

Parameters and characteristics for this part

Specification	G3VM-101BR1

Circuit	SPST-NO (1 Form A)
Load Current	3.5 A
Mounting Type	Through Hole
On-State Resistance (Max)	80 mOhms
Operating Temperature (Max)	110 °C
Operating Temperature (Min)	-40 °C
Output Type	AC, DC
Package Length	0.3 in
Package Name	6-DIP
Package Width	7.62 mm
Termination Style	PC Pin
Voltage - Input	1.64 VDC
Voltage - Load (Max)	100 V
Voltage - Load (Min)	0 V

G3VM Series

Part	Termination Style	Operating Temperature (Min)	Operating Temperature (Max)	Load Current	On-State Resistance (Max)	Voltage - Input	Mounting Type	Package Name	Voltage - Load (Max)	Output Type	Circuit	Package Length	Package Width
Omron Electronics Inc-EMC Div G3VM-101HR2(TR05)	Gull Wing	-40 °C	85 °C 110 °C	3 A	65 mOhms	1.65 VDC	Surface Mount	6-SOP	100 V	AC DC	SPST-NO (1 Form A)	0.173 in	4.4 mm
Omron Electronics Inc-EMC Div G3VM-101UR(TR05)	SMD (SMT) Tab	-40 °C	85 °C 110 °C	0.1 A	14 Ohms	1.27 VDC	Surface Mount	4-SMD 4-VSON	100 V	AC DC	SPST-NO (1 Form A)	0.096 \	2.45 mm
Omron Electronics Inc-EMC Div G3VM-101CR	PC Pin	-40 °C	85 °C 110 °C	3 A	150 mOhms	1.64 VDC	Through Hole	8-DIP	100 V	AC DC	SPST-NO (1 Form A)	0.3 in	7.62 mm
Omron Electronics Inc-EMC Div G3VM-101HR2	Gull Wing	-40 °C	85 °C 110 °C	3 A	65 mOhms	1.65 VDC	Surface Mount	6-SOP	100 V	AC DC	SPST-NO (1 Form A)	0.173 in	4.4 mm
Omron Electronics Inc-EMC Div G3VM-101HR1(TR05)	Gull Wing	-40 °C	85 °C 110 °C	2 A	70 mOhm	1.33 VDC	Surface Mount	6-SOP	100 V	AC DC	SPST-NO (1 Form A)	0.173 in	4.4 mm
Omron Electronics Inc-EMC Div G3VM-101ER1	Gull Wing	-40 °C	85 °C 110 °C	3.5 A	80 mOhms	1.64 VDC	Surface Mount	6-SMD	100 V	AC DC	SPST-NO (1 Form A)	0.3 in	7.62 mm
Omron Electronics Inc-EMC Div G3VM-101HR1	Gull Wing	-40 °C	85 °C 110 °C	2 A	70 mOhm	1.33 VDC	Surface Mount	6-SOP	100 V	AC DC	SPST-NO (1 Form A)	0.173 in	4.4 mm
Omron Electronics Inc-EMC Div G3VM-101FR	Gull Wing	-40 °C	85 °C 110 °C	3 A	150 mOhms	1.64 VDC	Surface Mount	8-SMD	100 V	AC DC	SPST-NO (1 Form A)	0.3 in
Omron Electronics Inc-EMC Div G3VM-101HR(TR)	Gull Wing	-40 °C	85 °C 110 °C	1.4 A	0.2 Ohms	1.33 VDC	Surface Mount	6-SOP	100 V	AC DC	SPST-NO (1 Form A)	0.173 in	4.4 mm
Omron Electronics Inc-EMC Div G3VM-101QR1(TR05)	SMD (SMT) Tab	-40 °C	85 °C 110 °C	650 mA	0.6 Ohms	1.21 VDC	Surface Mount	4-SMD S-VSON4	100 V	AC DC	SPST-NO (1 Form A)	0.079 in	2 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

G3VM-101BR1 | Datasheet
