G3VM-10 Series

Manufacturer: Omron Electronics Inc-EMC Div

Catalog

SOLID STATE RELAYS - PCB MOUNT MOSFET SOP 6-PIN 3A 100V LOW RON

Part	Termination Style	Operating Temperature (Min)	Operating Temperature (Max)	Load Current	On-State Resistance (Max)	Voltage - Input	Mounting Type	Package Name	Voltage - Load (Max)	Output Type	Circuit	Package Length	Package Width
Omron Electronics Inc-EMC Div G3VM-101HR2(TR05)	Gull Wing	-40 °C	85 °C 110 °C	3 A	65 mOhms	1.65 VDC	Surface Mount	6-SOP	100 V	AC DC	SPST-NO (1 Form A)	0.173 in	4.4 mm
Omron Electronics Inc-EMC Div G3VM-101UR(TR05)	SMD (SMT) Tab	-40 °C	85 °C 110 °C	0.1 A	14 Ohms	1.27 VDC	Surface Mount	4-SMD 4-VSON	100 V	AC DC	SPST-NO (1 Form A)	0.096 \	2.45 mm
Omron Electronics Inc-EMC Div G3VM-101CR	PC Pin	-40 °C	85 °C 110 °C	3 A	150 mOhms	1.64 VDC	Through Hole	8-DIP	100 V	AC DC	SPST-NO (1 Form A)	0.3 in	7.62 mm

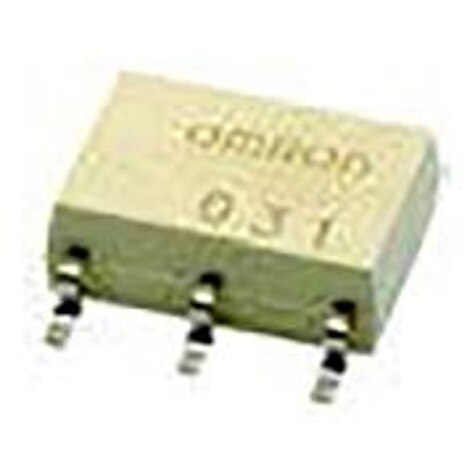

Omron Electronics Inc-EMC Div G3VM-101HR2	Gull Wing	-40 °C	85 °C 110 °C	3 A	65 mOhms	1.65 VDC	Surface Mount	6-SOP	100 V	AC DC	SPST-NO (1 Form A)	0.173 in	4.4 mm
Omron Electronics Inc-EMC Div G3VM-101HR1(TR05)	Gull Wing	-40 °C	85 °C 110 °C	2 A	70 mOhm	1.33 VDC	Surface Mount	6-SOP	100 V	AC DC	SPST-NO (1 Form A)	0.173 in	4.4 mm

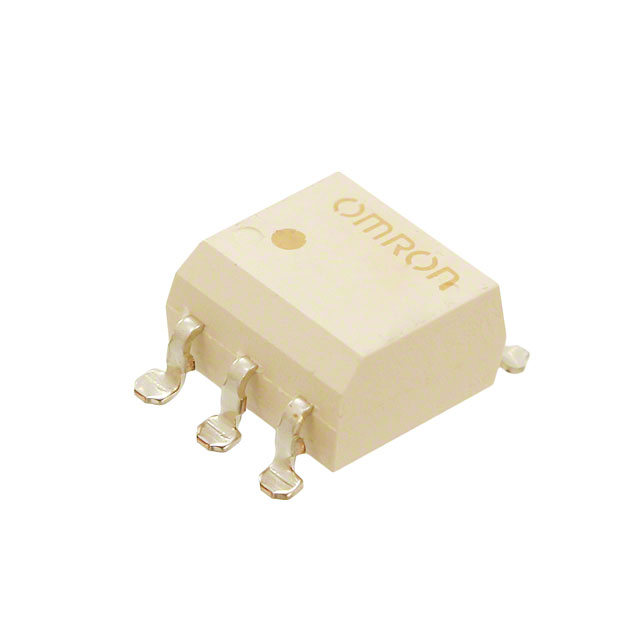

Omron Electronics Inc-EMC Div G3VM-101ER1	Gull Wing	-40 °C	85 °C 110 °C	3.5 A	80 mOhms	1.64 VDC	Surface Mount	6-SMD	100 V	AC DC	SPST-NO (1 Form A)	0.3 in	7.62 mm
Omron Electronics Inc-EMC Div G3VM-101HR1	Gull Wing	-40 °C	85 °C 110 °C	2 A	70 mOhm	1.33 VDC	Surface Mount	6-SOP	100 V	AC DC	SPST-NO (1 Form A)	0.173 in	4.4 mm
Omron Electronics Inc-EMC Div G3VM-101FR	Gull Wing	-40 °C	85 °C 110 °C	3 A	150 mOhms	1.64 VDC	Surface Mount	8-SMD	100 V	AC DC	SPST-NO (1 Form A)	0.3 in
Omron Electronics Inc-EMC Div G3VM-101HR(TR)	Gull Wing	-40 °C	85 °C 110 °C	1.4 A	0.2 Ohms	1.33 VDC	Surface Mount	6-SOP	100 V	AC DC	SPST-NO (1 Form A)	0.173 in	4.4 mm
Omron Electronics Inc-EMC Div G3VM-101QR1(TR05)	SMD (SMT) Tab	-40 °C	85 °C 110 °C	650 mA	0.6 Ohms	1.21 VDC	Surface Mount	4-SMD S-VSON4	100 V	AC DC	SPST-NO (1 Form A)	0.079 in	2 mm
