FGS.1M.308.XLMT

Active

LEMO

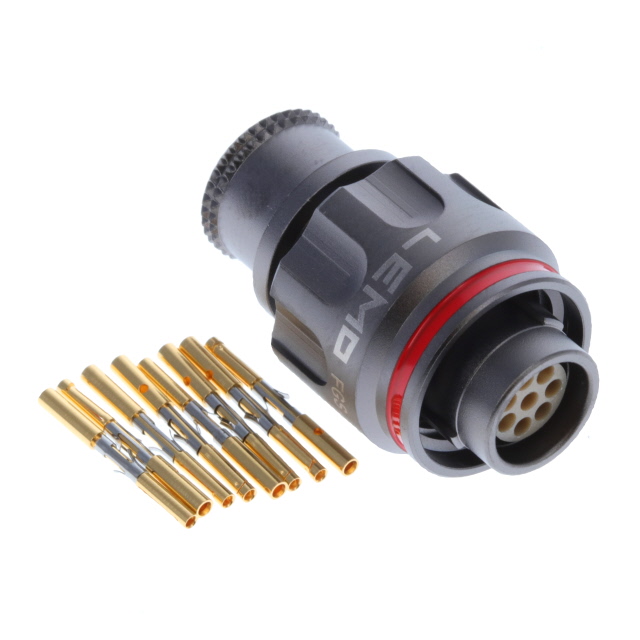

CONN PLUG FMALE 8POS GOLD CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

FGS.1M.308.XLMT

Active

LEMO

CONN PLUG FMALE 8POS GOLD CRIMP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 88.41
		10	$ 81.13
		25	$ 78.01
		50	$ 75.41
		100	$ 71.25

Description

General part information

FGS.1M Series

8 Position Circular Connector Plug, Female Sockets Crimp

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	FGS.1M.308.XLMT	FGS.1M Series

Applications	Military, Aerospace, Automotive, Aviation	Military, Aerospace, Automotive, Aviation
Cable Opening	-	9.7 mm
Cable Opening	-	0.191 in
Cable Opening	-	0.382 in
Cable Opening	-	4.85 mm
Cable Opening [custom]	9.7 mm	9.7 mm
Cable Opening [custom]	0.382 in	0.382 in
Color	Gray	Gray
Connector Type	Female Sockets, Plug	Female Sockets, Plug
Contact Finish - Mating	Gold	Gold
Contact Finish Thickness - Mating	59 Áin	59 Áin
Contact Finish Thickness - Mating	1.5 Ám	1.5 Ám
Contact Material	Bronze	Bronze
Current Rating (Amps)	5 A	5 - 9 A
Features	Coupling Nut	Coupling Nut
Ingress Protection	IP68 - Dust Tight, Waterproof	IP68 - Dust Tight, Waterproof
Insert Material	Polyetheretherketone (PEEK)	Polyetheretherketone (PEEK)
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions	8	7 - 8
Operating Temperature [Max]	200 °C	200 °C
Operating Temperature [Min]	-55 °C	-55 °C
Orientation	S	S
Primary Material	Metal	Metal
Shell Finish	Nickel	Nickel
Shell Material	Aluminum Alloy	Aluminum Alloy
Shell Size - Insert	308	305 - 308
Shielding	Shielded	Shielded
Termination	Crimp	Crimp

FGS.1M Series

CIRCULAR CONNECTORS &AMP; CABLE CONNECTORS ROHS

Part	Number of Positions	Orientation	Mounting Type	Features	Primary Material	Cable Opening [custom]	Cable Opening [custom]	Termination	Ingress Protection	Color	Operating Temperature [Min]	Operating Temperature [Max]	Shell Finish	Applications	Shell Material	Shell Size - Insert	Current Rating (Amps)	Connector Type	Insert Material	Contact Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Mating	Shielding	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]
LEMO FGS.1M.307.XLMT	7	S	Free Hanging (In-Line)	Coupling Nut	Metal	9.7 mm	0.382 in	Crimp	IP68 - Dust Tight, Waterproof	Gray	-55 °C	200 °C	Nickel	Aerospace, Automotive, Aviation, Military	Aluminum Alloy	307	7 A	Female Sockets, Plug	Polyetheretherketone (PEEK)	Bronze	59 Áin	1.5 Ám	Gold	Shielded
LEMO FGS.1M.308.XLMM	8	S	Free Hanging (In-Line)	Coupling Nut	Metal			Crimp	IP68 - Dust Tight, Waterproof	Gray	-55 °C	200 °C	Nickel	Aerospace, Automotive, Aviation, Military	Aluminum Alloy	308	5 A	Female Sockets, Plug	Polyetheretherketone (PEEK)	Bronze	59 Áin	1.5 Ám	Gold	Shielded
LEMO FGS.1M.305.XLMT		S	Free Hanging (In-Line)	Coupling Nut	Metal	9.7 mm	0.382 in	Crimp	IP68 - Dust Tight, Waterproof	Gray	-55 °C	200 °C	Nickel	Aerospace, Automotive, Aviation, Military	Aluminum Alloy	305	9 A	Female Sockets, Plug	Polyetheretherketone (PEEK)	Bronze	59 Áin	1.5 Ám	Gold	Shielded
LEMO FGS.1M.308.XLMT	8	S	Free Hanging (In-Line)	Coupling Nut	Metal	9.7 mm	0.382 in	Crimp	IP68 - Dust Tight, Waterproof	Gray	-55 °C	200 °C	Nickel	Aerospace, Automotive, Aviation, Military	Aluminum Alloy	308	5 A	Female Sockets, Plug	Polyetheretherketone (PEEK)	Bronze	59 Áin	1.5 Ám	Gold	Shielded
LEMO FGS.1M.308.XLMTY	8	S	Free Hanging (In-Line)	Coupling Nut	Metal			Crimp	IP68 - Dust Tight, Waterproof	Gray	-55 °C	200 °C	Nickel	Aerospace, Automotive, Aviation, Military	Aluminum Alloy	308	5 A	Female Sockets, Plug	Polyetheretherketone (PEEK)	Bronze	59 Áin	1.5 Ám	Gold	Shielded	9.7 mm	0.191 in	0.382 in	4.85 mm
