MV10-8FBX-BOTTLE

Active

3M (TC)

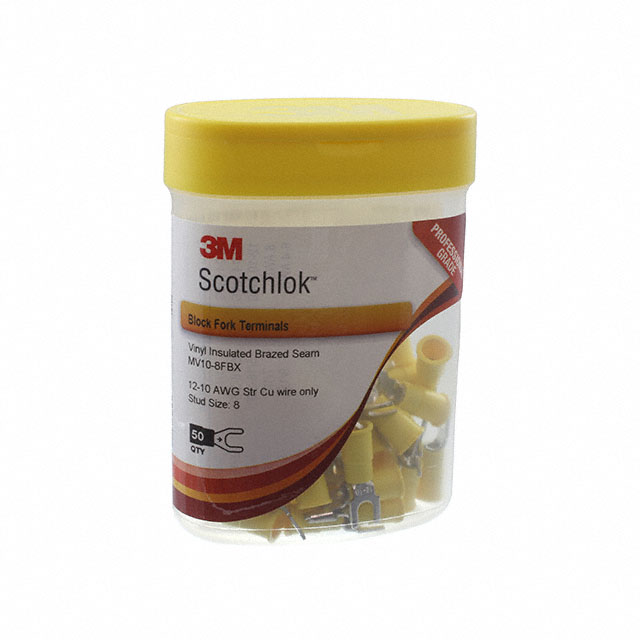

CONN SPADE TERM 10-12AWG #8 50PC

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

MV10-8FBX-BOTTLE

Active

3M (TC)

CONN SPADE TERM 10-12AWG #8 50PC

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MV10-8FBX-BOTTLE

Color	Yellow
Contact Finish	Tin
Contact Material	ETP, Copper
Features	Brazed Seam
Insulation	Insulated
Insulation Diameter	0.25 "
Insulation Diameter	6.35 mm
Length - Overall	26.16 mm
Length - Overall [x]	1.03 in
Length - Ring Center to Termination	0.29 in
Length - Ring Center to Termination	7.37 mm
Length - Termination	13.97 mm
Length - Termination	0.55 in
Material - Insulation	Vinyl
Mounting Type	Free Hanging (In-Line)
Stud/Tab Size	8 Stud
Terminal Type	Standard
Termination	Crimp
Width - Outer Edges [y]	8.13 mm
Width - Outer Edges [y]	0.32 in
Wire Gauge [Max]	12 AWG
Wire Gauge [Min]	10 AWG

MV10 Series

Part	Length - Termination	Length - Termination	Features	Wire Gauge [Max]	Wire Gauge [Min]	Contact Material	Stud/Tab Size	Mounting Type	Terminal Type	Material - Insulation	Contact Finish	Insulation Diameter	Insulation Diameter	Insulation	Length - Ring Center to Termination	Length - Ring Center to Termination	Termination	Length - Overall [x]	Length - Overall	Color	Width - Outer Edges [y]	Width - Outer Edges [y]	Thickness	Thickness	Length - Overall [x]	Stud/Tab Size	Number of Wire Entries	Length - Ring Center to Termination [x]	Length - Ring Center to Termination [x]	Width - Outer Edges [x]	Width - Outer Edges [x]	Width - Outer Edges	Width - Outer Edges	Length - Overall
3M (TC) MV10-6FBK	13.97 mm	0.55 in	Brazed Seam	12 AWG	10 AWG	Copper ETP	6 Stud	Free Hanging (In-Line)	Standard	Vinyl	Tin	0.25 "	6.35 mm	Insulated	0.29 in	7.37 mm	Crimp	1.03 in	26.16 mm	Yellow	8.13 mm	0.32 in
3M (TC) MV10-12RK			Brazed Seam	12 AWG	10 AWG	Copper ETP		Free Hanging (In-Line)	Circular	Vinyl	Tin	0.25 "	6.35 mm	Insulated			Crimp	1.5 in		Yellow	19.05 mm	0.75 in	0.04 in	1.02 mm	38.1 mm	1/2 Stud
3M (TC) MV10BCX-BOTTLE				12 AWG	10 AWG				Butt Splice Individual Openings Inline					Fully Insulated			Crimp			Yellow							2
3M (TC) MV10-14FLK	13.97 mm	0.55 in	Brazed Seam	12 AWG	10 AWG	Copper ETP	0.25 Stud	Free Hanging (In-Line)	Snap Spring	Vinyl	Tin	0.25 "	6.35 mm	Insulated			Crimp	1.24 in		Yellow	10.92 mm	0.43 "			31.5 mm			0.44 in	11.18 mm
3M (TC) MV10-8FK	13.97 mm	0.55 in	Brazed Seam	12 AWG	10 AWG	Copper ETP		Free Hanging (In-Line)	Standard	Vinyl	Tin	0.25 "	6.35 mm	Insulated	0.29 in	7.37 mm	Crimp	1.03 in	26.16 mm	Yellow						8 Stud				9.65 mm	0.38 "
3M (TC) MV10-8FLK	13.97 mm	0.55 in	Brazed Seam	12 AWG	10 AWG	Copper ETP		Free Hanging (In-Line)	Snap Spring	Vinyl	Tin	0.25 "	6.35 mm	Insulated	0.28 in	7.11 mm	Crimp	1.03 in	26.16 mm	Yellow	8.13 mm	0.32 in				8 Stud
3M (TC) MV10-8FBX-BOTTLE	13.97 mm	0.55 in	Brazed Seam	12 AWG	10 AWG	Copper ETP		Free Hanging (In-Line)	Standard	Vinyl	Tin	0.25 "	6.35 mm	Insulated	0.29 in	7.37 mm	Crimp	1.03 in	26.16 mm	Yellow	8.13 mm	0.32 in				8 Stud
3M (TC) MV10-10FLX	13.97 mm	0.55 in	Brazed Seam	12 AWG	10 AWG	Copper ETP	10 Stud	Free Hanging (In-Line)	Snap Spring	Vinyl	Tin	0.25 "	6.35 mm	Insulated	0.28 in	7.11 mm	Crimp	1.03 in	26.16 mm	Yellow	8.13 mm	0.32 in
3M (TC) MV10-8FLX-BOTTLE	13.97 mm	0.55 in	Brazed Seam	12 AWG	10 AWG	Copper ETP		Free Hanging (In-Line)	Snap Spring	Vinyl	Tin	0.25 "	6.35 mm	Insulated	0.28 in	7.11 mm	Crimp	1.03 in	26.16 mm	Yellow	8.13 mm	0.32 in				8 Stud
3M (TC) MV10-610RX-BOTTLE			Brazed Seam	12 AWG	10 AWG	Copper ETP	6 Stud 8 Stud 10 Stud	Free Hanging (In-Line)	Multi-Stud	Vinyl	Tin	0.25 "	6.35 mm	Insulated			Crimp		30.23 mm	Yellow			0.04 in	1.02 mm								9.91 mm	0.39 in	1.19 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 54.77

Description

General part information

MV10 Series

Yellow 8 Stud Spade Terminal Connector Crimp 10-12 AWG
