H8PPS-1006M

Active

Assmann WSW Components

DIP CABLE - HDP10S/AE10M/HDP10S

Search across all available documentation for this part.

Active

Assmann WSW Components

DIP CABLE - HDP10S/AE10M/HDP10S

Technical Specifications

Parameters and characteristics commom to parts in this series

DIP CABLE - HDP10S/AE10M/HDP10S

Part	Shielding	Color	Pitch - Cable	Pitch - Cable	Length	Length	Length	Usage	Number of Rows	Pitch - Connector	Pitch - Connector	Cable Termination	Number of Positions	Contact Finish	Connector Type	Length [x]	Length [x]
Assmann WSW Components H8PPS-1006M	Unshielded	Multiple, Ribbon	0.05 "	1.27 mm	152.4 mm	6 "	0.5 '	Board In, Socket (0.3")	2	0.1 in	2.54 mm	IDC	10	Tin	DIP to DIP, Reversed
Assmann WSW Components H8PPS-1018M	Unshielded	Multiple, Ribbon	0.05 "	1.27 mm				Board In, Socket (0.3")	2	0.1 in	2.54 mm	IDC	10	Tin	DIP to DIP, Reversed	457.2 mm	1.5 ft
Assmann WSW Components H8PPS-1036G	Unshielded		0.05 "	1.27 mm				Board In, Socket (0.3")	2	0.1 in	2.54 mm	IDC	10	Tin	DIP to DIP, Reversed	914.4 mm	3 ft

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

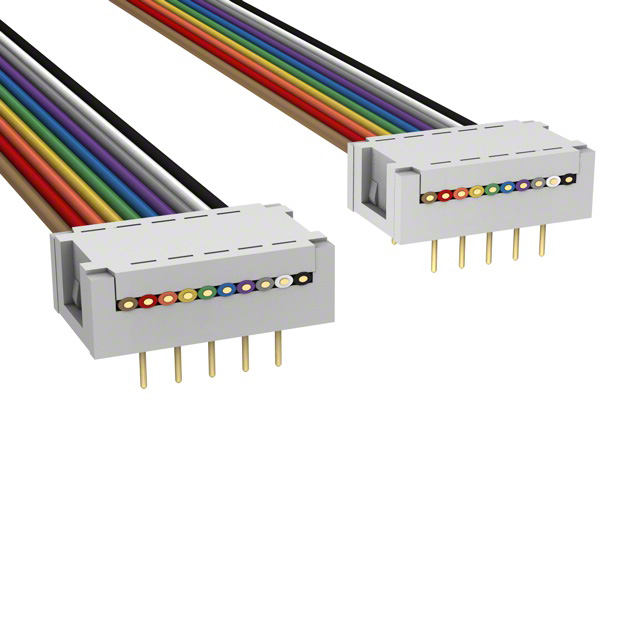

10 Position Cable Assembly Rectangular DIP to DIP, Reversed 0.500' (152.40mm, 6.00")
