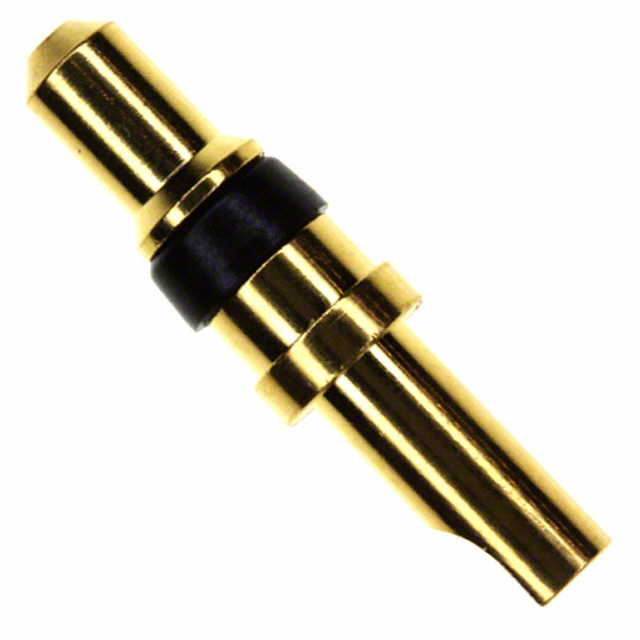

L17DM537457

Active

Amphenol ICC (Commercial Products)

CONN D-SUB PIN 14-12AWG SLDR CUP

Search across all available documentation for this part.

Active

Amphenol ICC (Commercial Products)

CONN D-SUB PIN 14-12AWG SLDR CUP

Technical Specifications

Parameters and characteristics for this part

Part	Contact Material	Termination Finish	Contact Termination	Type	Contact Finish	Contact Type	Contact Finish Thickness	Contact Finish Thickness	Wire Gauge	Wire Gauge [Min]	Wire Gauge [Max]	Wire Gauge
Amphenol ICC (Commercial Products) L17DM537403	Brass	Gold	Crimp	Coaxial	Gold	Male Pin
Amphenol ICC (Commercial Products) L17DM53744204	Phosphor Bronze		Crimp	Power	Gold	Female Socket	15 µin	0.38 µm
Amphenol ICC (Commercial Products) L17DM537425006	Phosphor Bronze	Gold	Crimp and Solder	Coaxial	Gold	Female Socket			RG-178
Amphenol ICC (Commercial Products) L17DM537457	Copper Nickel Alloy	Gold	Solder Cup	Power	Gold	Male Pin	20 µin	0.51 µm		14 AWG	12 AWG
Amphenol ICC (Commercial Products) L17DM53745217	Copper Alloy		Crimp	Power	Gold	Male Pin	15 µin	0.38 µm
Amphenol ICC (Commercial Products) L17DM53745208	Brass	Gold	Crimp	Power	Gold	Male Pin
Amphenol ICC (Commercial Products) L17DM537441	Copper Nickel Alloy	Gold	Solder Cup	Power	Gold	Female Socket	19.7 µin	0.5 µm				6 AWG
Amphenol ICC (Commercial Products) L17DM537425002	Brass	Gold	Crimp and Solder	Coaxial	Gold	Female Socket	19.7 µin	0.5 µm	RG-58C
Amphenol ICC (Commercial Products) L17DM537435001	Phosphor Bronze	Gold	Crimp and Solder	Coaxial	Gold	Female Socket Right Angle	31.5 µin	0.8 µm	RG-179 B/U			316
Amphenol ICC (Commercial Products) L17DM53745204

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

D-Sub Contact Male Pin Gold 14-12 AWG Solder Cup Machined
