BMA150-TRIBOX

Obsolete

Bosch Sensortec

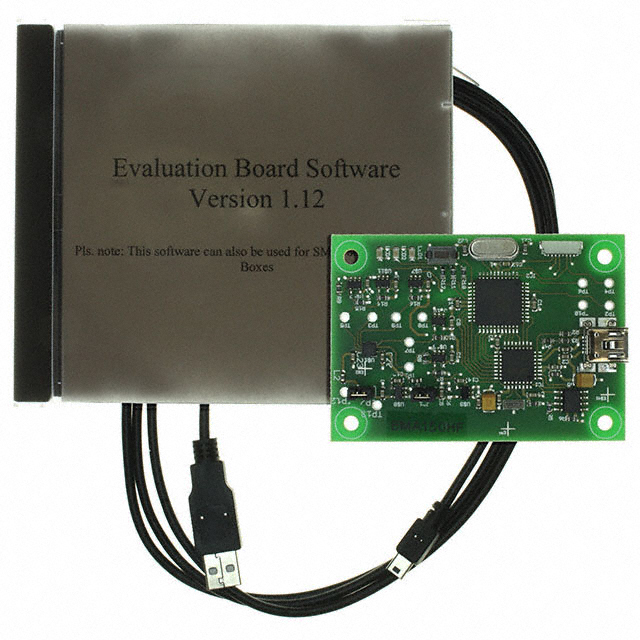

TRIBOX BOARD BMA150

Search across all available documentation for this part.

Obsolete

Bosch Sensortec

TRIBOX BOARD BMA150

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	BMA150-TRIBOX	BMA150 Series

Acceleration Range	-	4 - 8 g
Acceleration Range	-	-2 g
Acceleration Range	-	2 g
Axis	-	Z
Axis	-	Y
Axis	-	X
Bandwidth	-	750 Hz
Bandwidth	-	25 Hz
Contents	Board(s)	Board(s)
Features	-	Sleep Mode, Temperature Sensor
Function	Accelerometer	Accelerometer
Mounting Type	-	Surface Mount
Operating Temperature	-	85 °C
Operating Temperature	-	-40 °C
Output Type	-	I2C, SPI
Package / Case	-	12-VFLGA
Sensitivity (mV/g)	-	64 - 256 mV/g
Supplier Device Package	-	12-LGA (3x3)
Type	Sensor	Sensor, Digital
Utilized IC / Part	BMA150	BMA150
Voltage - Supply	-	2.4 V
Voltage - Supply	-	3.6 V

TRIBOX BOARD BMA150

Part	Utilized IC / Part	Function	Type	Contents	Package / Case	Mounting Type	Bandwidth [Max]	Bandwidth [Min]	Acceleration Range	Acceleration Range [Min]	Acceleration Range [Max]	Sensitivity (mV/g)	Axis [z]	Axis [y]	Axis [x]	Output Type	Supplier Device Package	Features	Voltage - Supply [Min]	Voltage - Supply [Max]	Operating Temperature [Max]	Operating Temperature [Min]
Bosch Sensortec BMA150-TRIBOX	BMA150	Accelerometer	Sensor	Board(s)
Bosch Sensortec BMA150			Digital		12-VFLGA	Surface Mount	750 Hz	25 Hz	4 g, 8 g	-2 g	2 g	64 mV/g, 256 mV/g	Z	Y	X	I2C, SPI	12-LGA (3x3)	Sleep Mode, Temperature Sensor	2.4 V	3.6 V	85 °C	-40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

BMA150 Accelerometer Sensor Platform Evaluation Expansion Board
