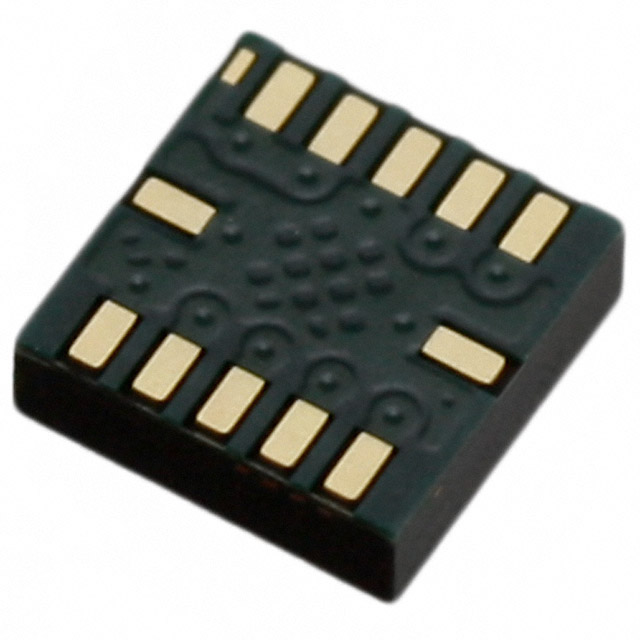

BMA150

Obsolete

Bosch Sensortec

ACCELEROMETER 2-8G I2C/SPI 12LGA

Search across all available documentation for this part.

Obsolete

Bosch Sensortec

ACCELEROMETER 2-8G I2C/SPI 12LGA

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	BMA150	BMA150 Series

Acceleration Range	4 g, 8 g	4 - 8 g
Acceleration Range [Max]	2 g	2 g
Acceleration Range [Min]	-2 g	-2 g
Axis [x]	X	X
Axis [y]	Y	Y
Axis [z]	Z	Z
Bandwidth [Max]	750 Hz	750 Hz
Bandwidth [Min]	25 Hz	25 Hz
Contents	-	Board(s)
Features	Sleep Mode, Temperature Sensor	Sleep Mode, Temperature Sensor
Function	-	Accelerometer
Mounting Type	Surface Mount	Surface Mount
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Output Type	I2C, SPI	I2C, SPI
Package / Case	12-VFLGA	12-VFLGA
Sensitivity (mV/g)	64 mV/g, 256 mV/g	64 - 256 mV/g
Supplier Device Package	12-LGA (3x3)	12-LGA (3x3)
Type	Digital	Sensor, Digital
Utilized IC / Part	-	BMA150
Voltage - Supply [Max]	3.6 V	3.6 V
Voltage - Supply [Min]	2.4 V	2.4 V

TRIBOX BOARD BMA150

Part	Utilized IC / Part	Function	Type	Contents	Package / Case	Mounting Type	Bandwidth [Max]	Bandwidth [Min]	Acceleration Range	Acceleration Range [Min]	Acceleration Range [Max]	Sensitivity (mV/g)	Axis [z]	Axis [y]	Axis [x]	Output Type	Supplier Device Package	Features	Voltage - Supply [Min]	Voltage - Supply [Max]	Operating Temperature [Max]	Operating Temperature [Min]
Bosch Sensortec BMA150-TRIBOX	BMA150	Accelerometer	Sensor	Board(s)
Bosch Sensortec BMA150			Digital		12-VFLGA	Surface Mount	750 Hz	25 Hz	4 g, 8 g	-2 g	2 g	64 mV/g, 256 mV/g	Z	Y	X	I2C, SPI	12-LGA (3x3)	Sleep Mode, Temperature Sensor	2.4 V	3.6 V	85 °C	-40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Accelerometer X, Y, Z Axis ±2g, 4g, 8g 25Hz ~ 750Hz 12-LGA (3x3)
