2E2H-DD-505-ISG

Active

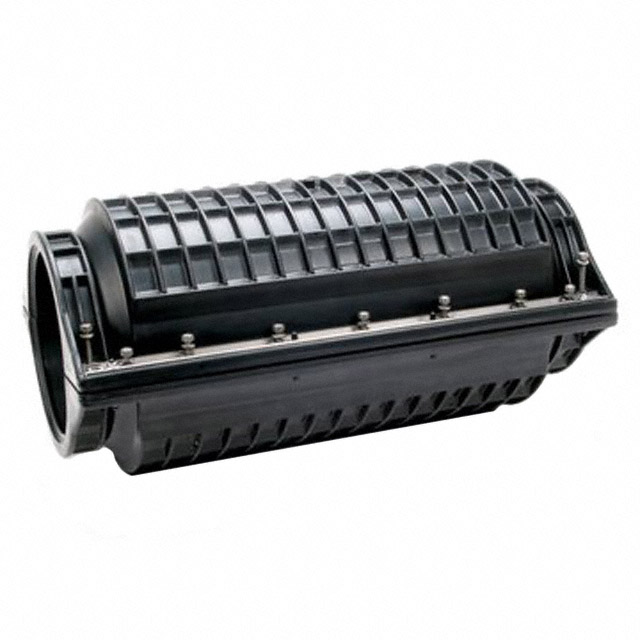

WIRE SPLICE ENCLOSURE SYS 4200PR

Search across all available documentation for this part.

Active

WIRE SPLICE ENCLOSURE SYS 4200PR

Technical Specifications

Parameters and characteristics for this part

Specification	2E2H-DD-505-ISG

Diameter - Inside [diameter]	12 in
Diameter - Inside [diameter]	304.8 mm
Features	Modular Connectors
Length - Overall [x]	1.7 m
Length - Overall [x]	65.5 "
Number of Cable Pairs	4200 Pairs
Number of Cable Pairs [Max]	26 AWG
Number of Cable Pairs [Min]	24 AWG
Sheath Opening	1.4 m
Sheath Opening	57 "
Type	Enclosure System, Installed Sealing Gasket

WIRE SPLICE ENCLOSURE SYS 4200PR

Part	Diameter - Inside [diameter]	Diameter - Inside [diameter]	Features	Sheath Opening	Sheath Opening	Number of Cable Pairs	Number of Cable Pairs [Max]	Number of Cable Pairs [Min]	Length - Overall [x]	Length - Overall [x]	Type
3M 2E2H-DD-505-ISG	12 in	304.8 mm	Modular Connectors	1.4 m	57 "	4200 Pairs	26 AWG	24 AWG	1.7 m	65.5 "	Enclosure System, Installed Sealing Gasket

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Wire Splice Enclosure System, Installed Sealing Gasket 65.50" (1.7m) 4200 Pairs @ 24-26 AWG
