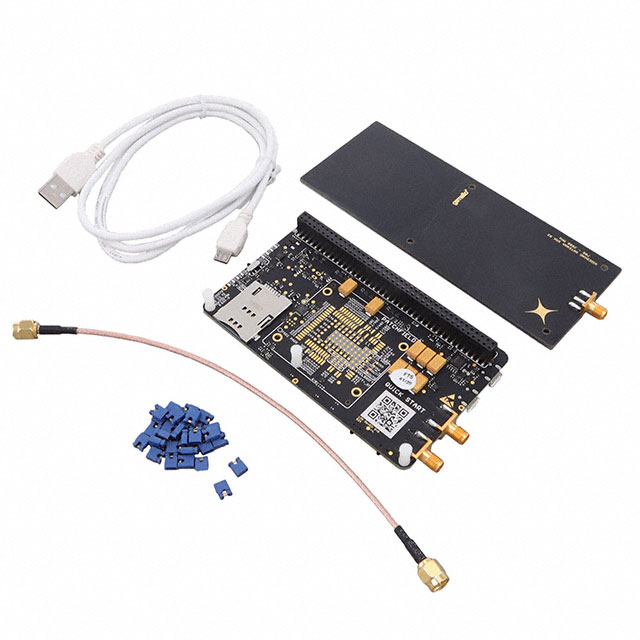

DEVKIT EXS82-W LPWAN

Active

Telit Cinterion

LPWAN DEV KIT WITH EXS82 MODULE

Search across all available documentation for this part.

Active

Telit Cinterion

LPWAN DEV KIT WITH EXS82 MODULE

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 103.63

General part information

Cinterion® Cellular 700MHz, 800MHz, 850MHz, 900MHz, 1.7GHz, AWS, 1.8GHz, 1.9GHz, 2.1GHz Evaluation Board

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	DEVKIT EXS82-W LPWAN	EXS82 Series

Antenna Type	-	Antenna Not Included
Current - Receiving	-	770 µA
Data Rate	-	1.1 Mbps
Frequency	1900 MHz, 900 MHz, 2100 MHz, 700 MHz, 1800 MHz, 1.7 GHz, 800 MHz, 850 MHz	1.7 - 2100 MHz
Frequency	AWS	AWS
Mounting Type	-	Surface Mount
Operating Temperature	-	90 °C
Operating Temperature	-	-40 °C
Package / Case	-	Module
Power - Output	-	20 dBm
Protocol	-	LTE, GNSS, GPS, Galileo, GLONASS, GPRS, Beidou
RF Family/Standard	-	Cellular, Navigation
Serial Interfaces	-	USB, PWM, I2C, SPI
Supplied Contents	Board(s)	Board(s)
Utilized IC / Part	-	EXS82
Voltage - Supply	-	2.6 V
Voltage - Supply	-	4.8 V

RF TXRX MOD CELL NAV SMD

Part	Voltage - Supply [Min]	Voltage - Supply [Max]	Antenna Type	Serial Interfaces	Current - Receiving	Protocol	RF Family/Standard	Data Rate	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Utilized IC / Part	Frequency	Package / Case	Power - Output	Frequency	Supplied Contents
Telit Cinterion EXS82-W REL.1.2 VZ	2.6 V	4.8 V	Antenna Not Included	I2C, PWM, SPI, USB	770 µA	Beidou, Galileo, GLONASS, GNSS, GPRS, GPS, LTE	Cellular, Navigation	1.1 Mbps	Surface Mount	90 °C	-40 °C	EXS82	850 MHz, 900 MHz, 1800 MHz, 1900 MHz	Module	20 dBm
Telit Cinterion EXS82-W REL.1.2	2.6 V	4.8 V	Antenna Not Included	I2C, PWM, SPI, USB	770 µA	Beidou, Galileo, GLONASS, GNSS, GPRS, GPS, LTE	Cellular, Navigation	1.1 Mbps	Surface Mount	90 °C	-40 °C	EXS82	850 MHz, 900 MHz, 1800 MHz, 1900 MHz	Module	20 dBm
Telit Cinterion DEVKIT EXS82-W LPWAN													1.7 GHz, 700 MHz, 800 MHz, 850 MHz, 900 MHz, 1800 MHz, 1900 MHz, 2100 MHz			AWS	Board(s)
Telit Cinterion EXS82-W REL.1.1	2.6 V	4.8 V	Antenna Not Included	I2C, PWM, SPI, USB	770 µA	Beidou, Galileo, GLONASS, GNSS, GPRS, GPS, LTE	Cellular, Navigation	1.1 Mbps	Surface Mount	90 °C	-40 °C	EXS82	850 MHz, 900 MHz, 1800 MHz, 1900 MHz	Module	20 dBm
