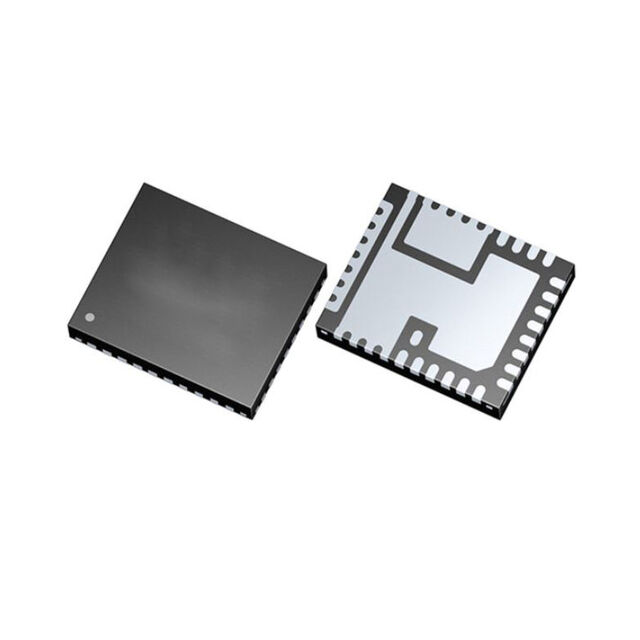

TDA386400000AUMA1 - TDA38725A0000AUMA1

TDA386400000AUMA1

Active
Infineon Technologies

OPTIMOS™ SINGLE-VOLTAGE SYNCHRONOUS BUCK REGULATOR 40 A WITH SVID AND I2C

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsOrderable Part Number OPN Translation TableDatasheet+1
TDA386400000AUMA1 - TDA38725A0000AUMA1

TDA386400000AUMA1

Active
Infineon Technologies

OPTIMOS™ SINGLE-VOLTAGE SYNCHRONOUS BUCK REGULATOR 40 A WITH SVID AND I2C

Deep-Dive with AI

DocumentsOrderable Part Number OPN Translation TableDatasheet+1

Technical Specifications

Parameters and characteristics for this part

SpecificationTDA386400000AUMA1
Current - Output40 A
Frequency - Switching [Max]2 MHz
Frequency - Switching [Min]400 kHz
FunctionStep-Down
GradeAutomotive
Mounting TypeSurface Mount
Number of Outputs1
Operating Temperature [Max]125 ¯C
Operating Temperature [Min]-40 °C
Output ConfigurationPositive
Output TypeProgrammable
QualificationAEC-Q101
Supplier Device PackagePG-IQFN-36-3
Synchronous RectifierTrue
TopologyBuck
Voltage - Input (Max) [Max]17 V
Voltage - Input (Min) [Min]3 V
Voltage - Output (Max) [Max]3.04 V
Voltage - Output (Min/Fixed)0.25 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyCut Tape (CT) 1$ 4.96
10$ 3.78
25$ 3.48
100$ 3.16
250$ 3.00
500$ 2.91
1000$ 2.83
2500$ 2.75
Digi-Reel® 1$ 4.96
10$ 3.78
25$ 3.48
100$ 3.16
250$ 3.00
500$ 2.91
1000$ 2.83
2500$ 2.75
Tape & Reel (TR) 5000$ 2.70

Description

General part information

TDA386400000 Series

The TDA38640 OptiMOS™ IPOL is an easy-to-use, fully integrated and highly efficient 40A synchronous buck regulator with Intel SVID and I2C interfaces. The TDA38640 can be used for Intel VR12, VR 12.5, VR13, VR14, IMPVP8 designs and DDR memory without significant changes to the bill of materials (BOM). The required mode is selected in MTP and the pin-out, VID table and other relevant functions are automatically configured. This greatly reduces time-to-market and eliminates the need to manage and inventory different PWM controllers. The device configuration can be easily defined using Infineon’s XDP™ Designer GUI and is stored in the on-chip memory.
