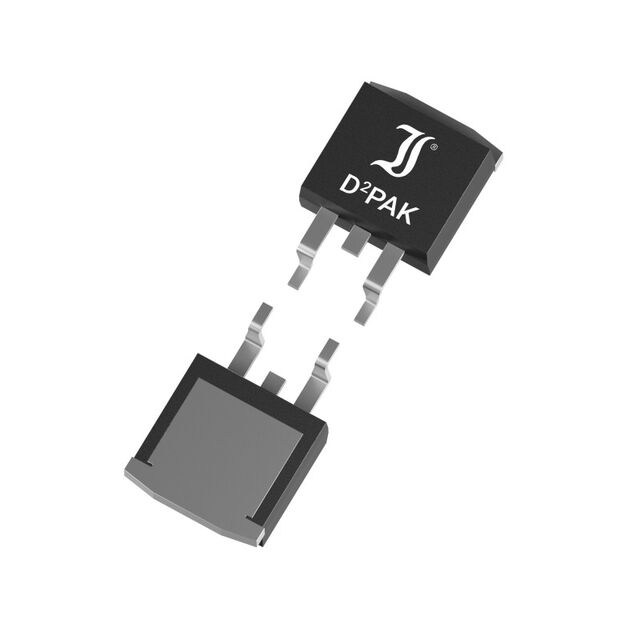

30CTQ045S

Active

Diotec Semiconductor

Search across all available documentation for this part.

Active

Diotec Semiconductor

Technical Specifications

Parameters and characteristics for this part

Specification	30CTQ045S

Current - Average Rectified (Io) (per Diode)	15 A
Current - Reverse Leakage @ Vr	50 µA
Diode Configuration	1 Pair Common Cathode
Mounting Type	Surface Mount
Operating Temperature - Junction [Max]	175 ░C
Operating Temperature - Junction [Min]	-50 °C
Package / Case	D2PAK (2 Leads + Tab), TO-263AB, TO-263-3
Speed	200 mA, 500 ns
Supplier Device Package	TO-263AB (D2PAK)
Technology	Schottky
Voltage - DC Reverse (Vr) (Max) [Max]	45 V
Voltage - Forward (Vf) (Max) @ If	620 mV

Part	Package / Case	Speed	Current - Reverse Leakage @ Vr	Current - Average Rectified (Io) (per Diode)	Supplier Device Package	Diode Configuration	Mounting Type	Voltage - Forward (Vf) (Max) @ If	Technology	Operating Temperature - Junction [Min]	Operating Temperature - Junction [Max]	Voltage - DC Reverse (Vr) (Max) [Max]
Diotec Semiconductor 30CTQ045S	D2PAK (2 Leads + Tab), TO-263-3, TO-263AB	200 mA, 500 ns	50 µA	15 A	TO-263AB (D2PAK)	1 Pair Common Cathode	Surface Mount	620 mV	Schottky	-50 °C	175 ░C	45 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Diode Array 1 Pair Common Cathode 45 V 15A Surface Mount TO-263-3, D2PAK (2 Leads + Tab), TO-263AB
