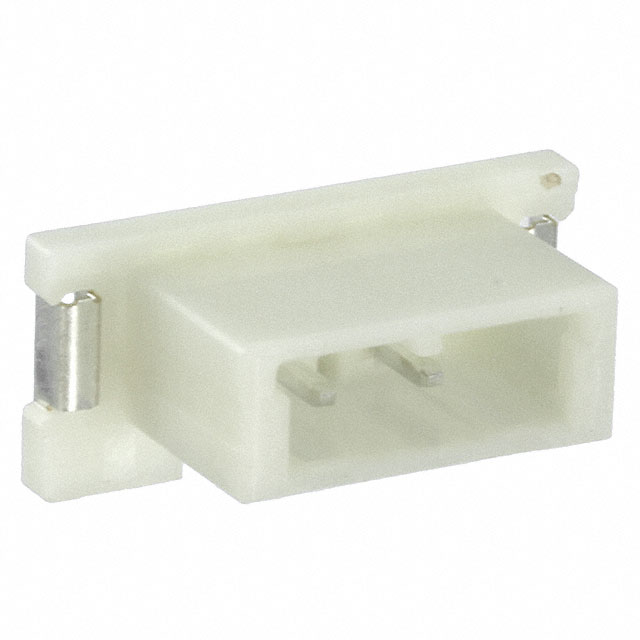

EM02B-LEXSS-TF
ActiveJST Sales America Inc.
CONN SSL HDR 2POS 2.5MM SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
EM02B-LEXSS-TF
ActiveJST Sales America Inc.
CONN SSL HDR 2POS 2.5MM SOLDER
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | EM02B-LEXSS-TF |
|---|---|
| Connector Type | Header, Male Pins |
| Contact Finish | Tin |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 3 A |
| Features | Solder Retention |
| Housing Color | Natural |
| Housing Material | Polyamide (PA9T), Nylon 9T |
| Mounting Type | Surface Mount |
| Number of Positions | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Pitch [x] | 0.098 in |
| Pitch [x] | 2.5 mm |
| Style | Board to Cable/Wire |
| Termination | Solder |
| Voltage Rating | 300 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.66 | |
| 10 | $ 0.57 | |||
| 100 | $ 0.47 | |||
| 500 | $ 0.41 | |||
| Digi-Reel® | 1 | $ 0.66 | ||
| 10 | $ 0.57 | |||
| 100 | $ 0.47 | |||
| 500 | $ 0.41 | |||
| Tape & Reel (TR) | 1600 | $ 0.31 | ||
| 3200 | $ 0.29 | |||
| 4800 | $ 0.28 | |||
| 8000 | $ 0.26 | |||
| 16000 | $ 0.26 | |||
Description
General part information
EM02B-LE Series
SSL Connector 2 Position Header, Male Pins Board to Cable/Wire 0.098" (2.50mm) Solder
