CONN QMA JACK STR 50OHM SOLDER

Search across all available documentation for this part.

Active

Amphenol RF

CONN QMA JACK STR 50OHM SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	134106

Body Finish	White Bronze
Body Material	Brass
Cable Group	58C, 9907, 58B, LMR-195, 58A, 303, 141, Belden B7806A, RG-58
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	11 GHz
Housing Color	Silver
Impedance	50 Ohms
Includes	1 Connector, 1 Lockwasher, 1 Ferrule, 1 Contact, 1 Nut
Mounting Feature	Bulkhead - Front Side Nut
Number of Ports	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Shield Termination	Crimp

Part	Number of Ports	Dielectric Material	Body Finish	Contact Termination	Center Contact Plating	Body Material	Includes	Cable Group	Housing Color	Connector Type	Shield Termination	Fastening Type	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Frequency - Max [Max]	Impedance	Center Contact Material	Mounting Feature
Amphenol RF 134105	1	Polytetrafluoroethylene (PTFE)	White Bronze	Solder	Gold	Brass	1 Connector 1 End Cap 1 Ferrule	Belden 9258 LMR-240	Silver	Male Pin Plug	Crimp	Snap-On	Free Hanging (In-Line) Right Angle	-40 °C	80 C	6000 MHz	50 Ohms	Brass
Amphenol RF 134106	1	Polytetrafluoroethylene (PTFE)	White Bronze	Solder	Gold	Brass	1 Connector 1 Contact 1 Ferrule 1 Lockwasher 1 Nut	141 303 58A 58B 58C 9907 Belden B7806A LMR-195 RG-58	Silver	Female Socket Jack	Crimp	Snap-On		-40 °C	85 °C	11 GHz	50 Ohms	Beryllium Copper	Bulkhead - Front Side Nut

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

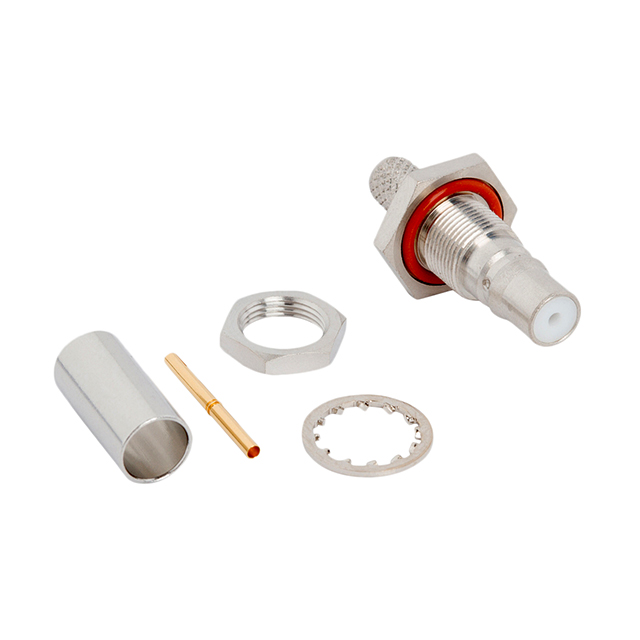

QMA Connector Jack, Female Socket 50 Ohms Panel Mount Solder
