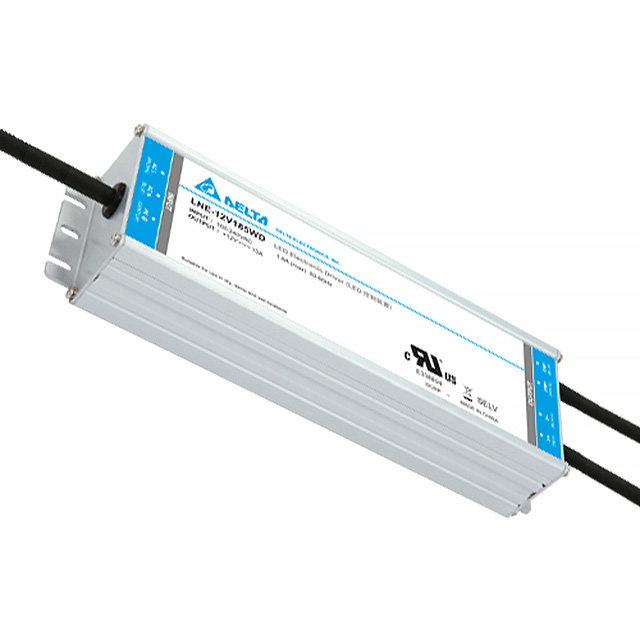

LNE-12V185WDAA

Obsolete

Delta Electronics

AC/DC LED POWER SUPPLY 156W SINGLE 7-PIN

Search across all available documentation for this part.

Obsolete

Delta Electronics

AC/DC LED POWER SUPPLY 156W SINGLE 7-PIN

Technical Specifications

Parameters and characteristics for this part

Part	Operating Temperature [Min]	Operating Temperature [Max]	Termination Style	Standard Number	Current - Output (Max) [Max]	Approval Agency	Dimming	Power (Watts)	Ratings	Features	Efficiency	Voltage - Input (Max) [Max]	Topology	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Voltage - Output [Min]	Voltage - Output [Max]	Number of Outputs	Voltage - Isolation	Voltage - Input (Min) [Min]	Mounting Type	Type	Weight	Weight	Size / Dimension [y]	Size / Dimension [z]
Delta Electronics LNE-12V185WDAA	-40 °C	70 °C	Wire Leads	50581 60950-1 8750	13 A	UL	Analog PWM	185 W	IP67	OCP OTP OVP SCP	91.5 %	305 VAC	AC DC Converter	68 mm	38.8 mm	1.53 in	8.03 "	204 mm	2.68 "	6 V	12 V	1	3.85 kV	90 VAC	Chassis Mount	Constant Current Voltage	2.4 lbs	1.1 kg
Delta Electronics LNE-12V120WAAA	-40 °C	70 °C	Wire Leads	50581 60950-1 8750	10 A	UL		120 W	IP65	OCP OTP OVP SCP	92 %	305 VAC	AC DC Converter	68 mm	38.8 mm	1.53 in	7.72 "	196 mm	2.68 "	6 V	12 V	1	3.85 kV	90 VAC	Chassis Mount	Constant Current Voltage	2.2 lbs	997.9 g
Delta Electronics LNE-12V320WDAA	-40 °C	70 °C	Wire Leads	50581 60950-1 8750	22.5 A	UL	Analog PWM	320 W	IP67	OCP OTP OVP SCP	91 %	305 VAC	AC DC Converter			1.72 in	9.92 in	252 mm	3.54 in	6 V	12 V	1	3.85 kV	90 VAC	Chassis Mount	Constant Current Voltage			89.9 mm	43.7 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Arrow	N/A	1	$ 18.33

General part information

13A 6 ~ 12V Constant Current, Voltage LED Driver AC DC Converter Topology 1 Output
