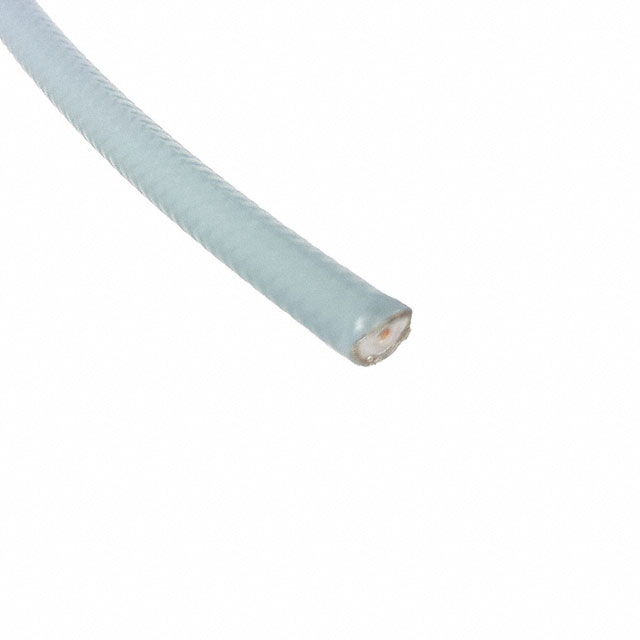

88127-L25

Active

Cinch Connectivity Solutions Semflex

CABLE HP 190S 25 FT LENGTH

Search across all available documentation for this part.

Active

Cinch Connectivity Solutions Semflex

CABLE HP 190S 25 FT LENGTH

Technical Specifications

Parameters and characteristics for this part

Specification	88127-L25

Cable Group	HP190S
Cable Type	Coaxial
Conductor Material	Copper, Silver Coated
Conductor Strand	Solid
Dielectric Diameter [diameter]	3.84 mm
Dielectric Diameter [diameter]	0.151 in
Dielectric Material	Polytetrafluoroethylene (PTFE)
Impedance	50 Ohms
Jacket (Insulation) Diameter [diameter]	5.97 mm
Jacket (Insulation) Diameter [diameter]	0.235 in
Jacket (Insulation) Material	Fluorinated Ethylene-Propylene (FEP), Polyurethane (PU)
Jacket Color	Blue
Length	25 ft
Length	7.62 m
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-65 ░C
Shield Material	Copper, Silver Coated
Shield Type	Foil, Braid
VoP, Velocity of Propagation	75

CABLE HP 190S 25 FT LENGTH

Part	VoP, Velocity of Propagation	Operating Temperature [Min]	Operating Temperature [Max]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Shield Material	Shield Type	Conductor Strand	Conductor Material	Jacket (Insulation) Material	Cable Type	Dielectric Diameter [diameter]	Dielectric Diameter [diameter]	Jacket Color	Dielectric Material	Cable Group	Impedance	Length	Length
Cinch Connectivity Solutions Semflex 88127-L25	75	-65 ░C	200 °C	5.97 mm	0.235 in	Copper, Silver Coated	Braid, Foil	Solid	Copper, Silver Coated	Fluorinated Ethylene-Propylene (FEP), Polyurethane (PU)	Coaxial	3.84 mm	0.151 in	Blue	Polytetrafluoroethylene (PTFE)	HP190S	50 Ohms	25 ft	7.62 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Coaxial Cable HP190S 25.0' (7.62m) 50 Ohms
