TE Connectivity ALCOSWITCH Switches

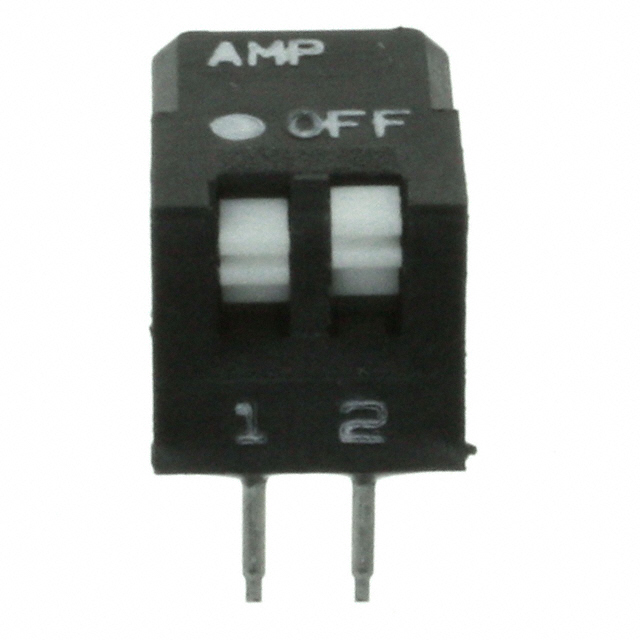

SWITCH PIANO DIP SPST 0.025A 24V

Search across all available documentation for this part.

Active

TE Connectivity ALCOSWITCH Switches

SWITCH PIANO DIP SPST 0.025A 24V

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1-5435802-0	1-5435802 Series

Actuator Level	Flush, Recessed	Flush, Recessed, Raised
Actuator Type	Piano	Piano
Body Material	Polyester (PET), Glass Filled	Polyester (PET), Glass Filled
Circuit	SPST	SPST
Contact Finish	Gold	Gold
Contact Material	Copper Alloy	Copper Alloy
Current Rating (Amps)	25 mA	25 mA
Electrical Life	7000 Cycles	7000 Cycles
Features	-	Tape Seal
Height Above Board	0.29 in	0.29 in
Height Above Board	7.37 mm	7.37 mm
Length	7.11 mm	7.11 - 14.73 mm
Length	0.28 "	0.28 - 0.58 "
Mounting Type	Through Hole, Right Angle	Through Hole, Right Angle, Through Hole
Number of Positions	2	2 - 12
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-55 °C	-55 °C
Pitch	Full	Full
Pitch [x]	0.1 in	0.1 in
Pitch [x]	2.54 mm	2.54 mm
Termination Style	PC Pin	PC Pin
Voltage Rating	24 VDC	24 VDC
Washable	False	False, True

SWITCH PIANO DIP SPST 0.025A 24V

Part	Length	Length	Number of Positions	Contact Finish	Voltage Rating	Actuator Type	Height Above Board	Height Above Board	Actuator Level	Pitch [x]	Pitch	Pitch [x]	Current Rating (Amps)	Body Material	Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Circuit	Electrical Life	Mounting Type	Termination Style	Features
TE Connectivity ALCOSWITCH Switches 1-5435802-0	7.11 mm	0.28 "	2	Gold	24 VDC	Piano	0.29 in	7.37 mm	Flush, Recessed	0.1 in	Full	2.54 mm	25 mA	Polyester (PET), Glass Filled	Copper Alloy	105 ░C	-55 °C	SPST	7000 Cycles	Through Hole, Right Angle	PC Pin
TE Connectivity ALCOSWITCH Switches 1-5435802-2			12			Piano			Raised									SPST		Through Hole
TE Connectivity ALCOSWITCH Switches 1-5435802-6	14.73 mm	0.58 in		Gold	24 VDC	Piano	0.29 in	7.37 mm	Raised	0.1 in	Full	2.54 mm	25 mA	Polyester (PET), Glass Filled	Copper Alloy	105 ░C	-55 °C	SPST	7000 Cycles	Through Hole, Right Angle	PC Pin	Tape Seal

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	3612	$ 4.54

General part information

Dip Switch SPST 2 Position Through Hole, Right Angle Piano Actuator 25mA 24VDC
