Specification	AT04-6P-RD01BLK

Color	Black
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Male Pin
Fastening Type	Latch Holder
Features	Sealed
Insulation Material	Thermoplastic
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	6
Number of Rows	3
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C

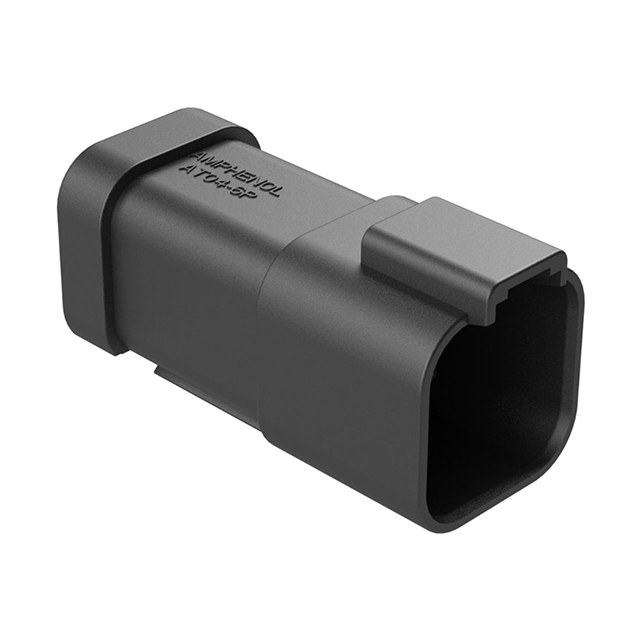

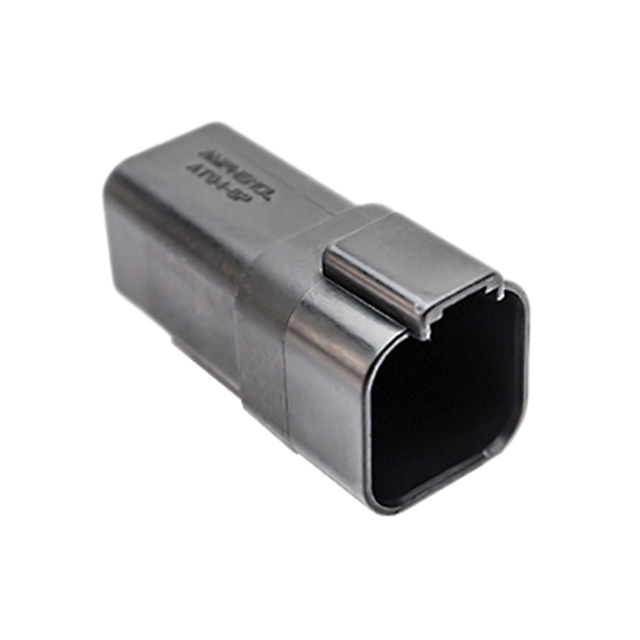

AT04-6P Series

Part	Note	Fastening Type	Features	Contact Termination	Insulation Material	Color	Operating Temperature (Max)	Operating Temperature (Min)	Number of Rows	Number of Positions	Connector Type	Mounting Type	Contact Type	Contact Finish	Wire Type	Cable Termination	Contact Finish - Mating	Shrouding	Contact Material	Style	Current Rating	Insulation Color	Contact Shape	Ingress Protection	Insulation Height	Number of Positions Loaded	Termination	Applications
McGill Microwave Systems AT04-6P-ORG	Contacts Not Included	Latch Holder	Sealed	Crimp	Thermoplastic	Orange	125 °C	-55 °C	2	6	Receptacle	Free Hanging (In-Line)	Male Pin

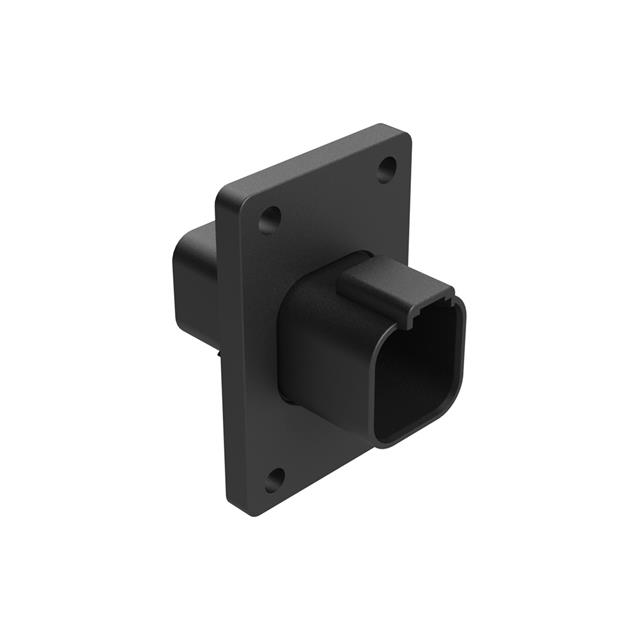

McGill Microwave Systems AT04-6P-CL06	Contacts Not Included	Latch Holder	Mounting Flange Sealed	Crimp	Thermoplastic	Black	125 °C	-55 °C	3	6	Receptacle	Panel Mount	Male Pin
McGill Microwave Systems AT04-6P-RD01BLK	Contacts Not Included	Latch Holder	Sealed	Crimp	Thermoplastic	Black	125 °C	-55 °C	3	6	Receptacle	Free Hanging (In-Line)	Male Pin

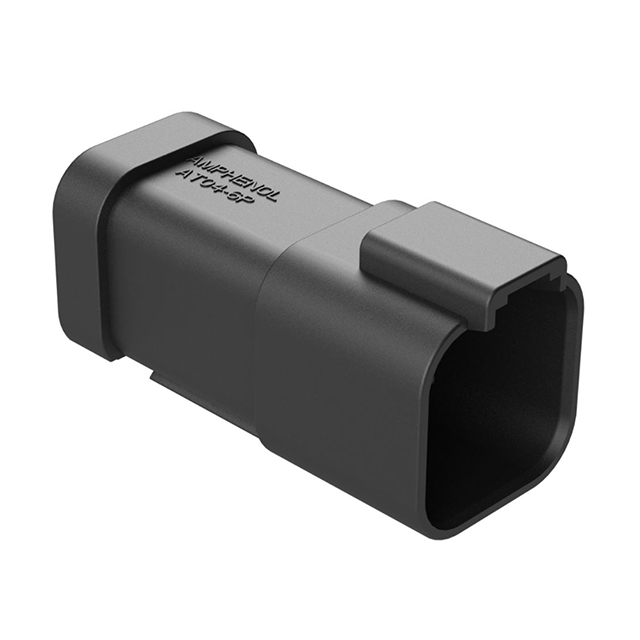

McGill Microwave Systems AT04-6P-EP13		Latch Holder	Cap (Cover) IP67 Sealed			Black			3	6	Receptacle	Free Hanging (In-Line)	Male Pin	Nickel	Discrete	Crimp
McGill Microwave Systems AT04-6P-BM04		Latch Holder	Board Lock Potting Wall		Thermoplastic		125 °C	-55 °C	2	6	Receptacle	Through Hole	Male Pin				Nickel	Shrouded - 4 Wall	Copper Alloy	Board Cable/Wire	13 A	Black	Circular	IP67	0.835 in	All	Solder	Automotive General Purpose Industrial

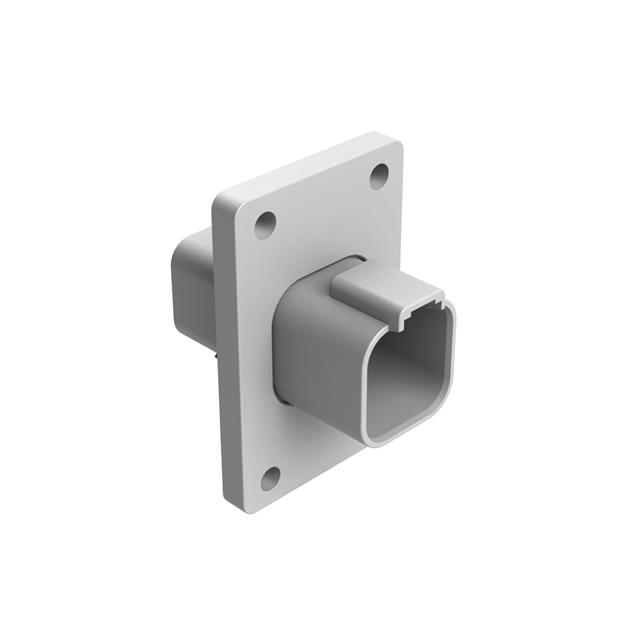

McGill Microwave Systems AT04-6P-L012	Contacts Not Included	Latch Holder	Mounting Flange Sealed	Crimp	Thermoplastic	Gray	125 °C	-55 °C	3	6	Receptacle	Panel Mount	Male Pin

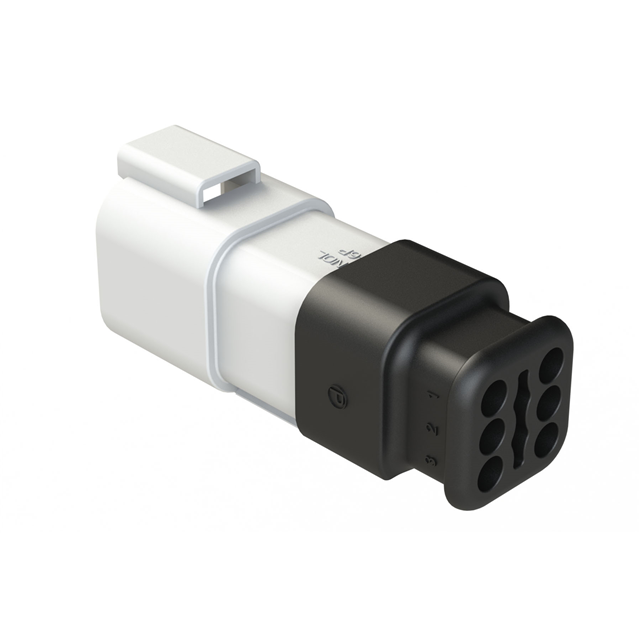

McGill Microwave Systems AT04-6P-SR01WHT		Latch Holder	Cap (Cover) IP68 IP69K Sealed Strain Relief	Crimp	Thermoplastic	White	125 °C	-55 °C	3	6	Receptacle	Free Hanging (In-Line)	Male Pin

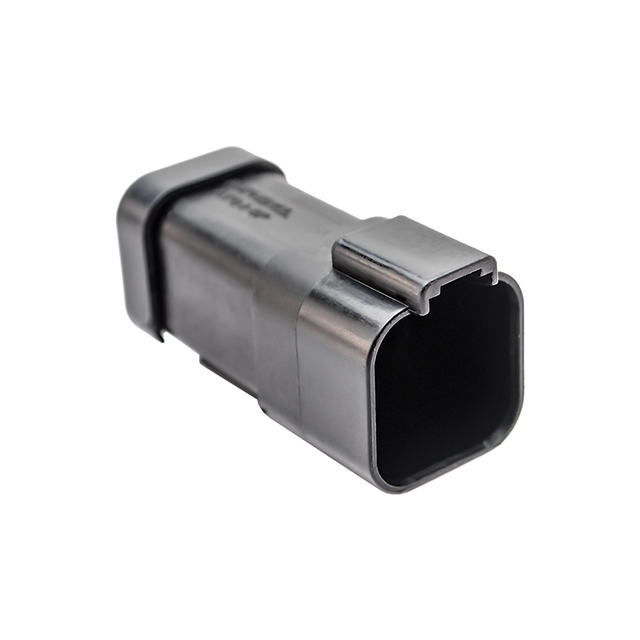

McGill Microwave Systems AT04-6P-MM01BLK	Contacts Not Included	Latch Holder	Cap (Cover) Sealed	Crimp	Thermoplastic	Black	125 °C	-55 °C	3	6	Receptacle	Free Hanging (In-Line)	Male Pin
McGill Microwave Systems AT04-6P-RD01	Contacts Not Included	Latch Holder	Sealed	Crimp	Thermoplastic	Gray	125 °C	-55 °C	3	6	Receptacle	Free Hanging (In-Line)	Male Pin
McGill Microwave Systems AT04-6P-EP14		Latch Holder	Cap (Cover) IP67 Sealed			Black			3	6	Receptacle	Free Hanging (In-Line)	Male Pin	Nickel	Discrete	Crimp
