Q131310PCE

Active

Hoffman Enclosures, Inc.

BOX PLASTIC GRAY 4.92"L X 4.92"W

Search across all available documentation for this part.

Active

Hoffman Enclosures, Inc.

BOX PLASTIC GRAY 4.92"L X 4.92"W

Technical Specifications

Parameters and characteristics for this part

Specification	Q131310PCE

Area (L x W)	24.2 in˛
Area (L x W)	156 cm˛
Color	Gray
Container Type	Box
Design	Cover Included
Features	PCB Supports, Card Guides, Sealing Gasket
Height [z]	100 mm
Height [z]	3.937 in
Material	Plastic, Polycarbonate
Ratings	4X, 12, IP67, 13, UL-508A, NEMA 4, 6
Size / Dimension [x]	4.921 in
Size / Dimension [x]	125 mm
Size / Dimension [y]	4.921 "
Size / Dimension [y]	125 mm
Thickness	3 mm
Thickness	0.118 in
Weight	453.59 g
Weight	1 lbs

BOX PLASTIC GRAY 4.92"L X 4.92"W

Part	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Color	Ratings	Container Type	Features	Weight	Weight	Design	Material	Thickness	Thickness	Area (L x W)	Area (L x W)	Height [z]	Height [z]
Hoffman Enclosures, Inc. Q131310PCE	4.921 "	125 mm	4.921 in	125 mm	Gray	12, 13, 4X, 6, IP67, NEMA 4, UL-508A	Box	Card Guides, PCB Supports, Sealing Gasket	453.59 g	1 lbs	Cover Included	Plastic, Polycarbonate	3 mm	0.118 in	24.2 in˛	156 cm˛	100 mm	3.937 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

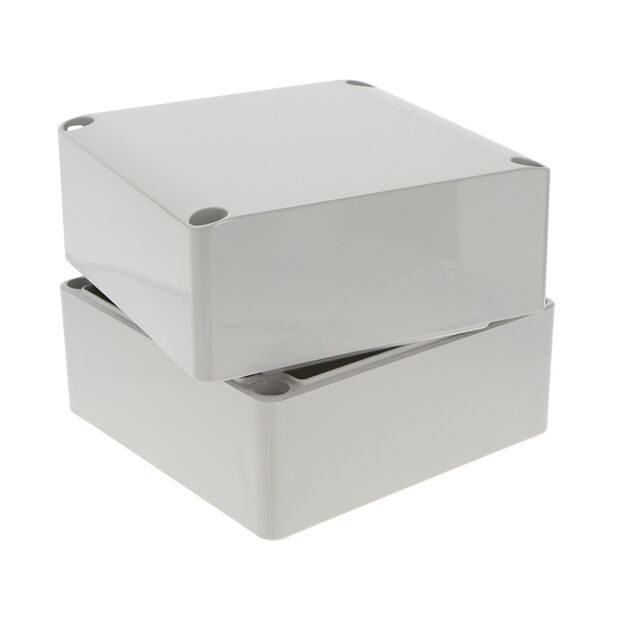

Box Plastic, Polycarbonate Gray Cover Included 4.921" L x 4.921" W (125.00mm x 125.00mm) X 3.937" (100.00mm)
