Q-0J04E00030.5M

Active

Amphenol Custom Cable

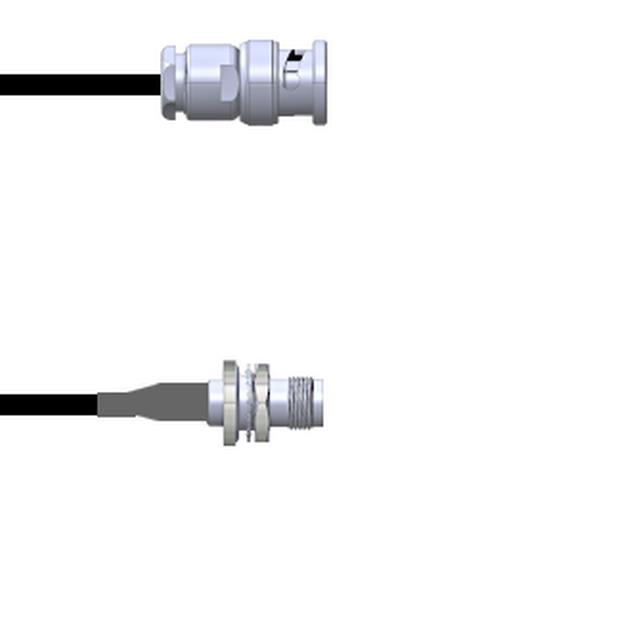

CBL ASSY BNC-TNC PLG-JACK 19.69"

Deep-Dive with AI

Search across all available documentation for this part.

Q-0J04E00030.5M

Active

Amphenol Custom Cable

CBL ASSY BNC-TNC PLG-JACK 19.69"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-0J04E00030.5M

1st Connector	BNC Plug
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	TNC Jack
2nd Connector Mounting Feature	Bulkhead - Front Side Nut
2nd Connector Mounting Type	Panel Mount
2nd Contact Gender	Female
Cable Type	RG-174
Color	Black
Features	Shielded
Frequency - Max [Max]	4 GHz
Length	50 cm
Length	19.69 "
Overall Impedance	50 Ohms
Style	BNC to TNC

Q-0J04E0 Series

Part	1st Contact Gender	2nd Connector	Color	Features	2nd Connector Mounting Type	Cable Type	Overall Impedance	Length	Length	Length	1st Connector Mounting Type	2nd Connector Mounting Feature	Style	2nd Contact Gender	1st Connector	Frequency - Max [Max]	Length [x]	Length [x]
Amphenol Custom Cable Q-0J04E0003084i	Male	TNC Jack	Black	Shielded	Panel Mount	RG-174	50 Ohms	84 in	2.1 m	7 ft	Free Hanging (In-Line)	Bulkhead - Front Side Nut	BNC to TNC	Female	BNC Plug	4 GHz
Amphenol Custom Cable Q-0J04E0003018i	Male	TNC Jack	Black	Shielded	Panel Mount	RG-174	50 Ohms				Free Hanging (In-Line)	Bulkhead - Front Side Nut	BNC to TNC	Female	BNC Plug	4 GHz	457.2 mm	457.2 mm
Amphenol Custom Cable Q-0J04E0005060i	Male	TNC Jack	Copper	Shielded	Panel Mount	RG-316	50 Ohms	5 '	1.5 m	5 ft	Free Hanging (In-Line)	Bulkhead - Front Side Nut	BNC to TNC	Female	BNC Plug	4 GHz
Amphenol Custom Cable Q-0J04E0003003i	Male	TNC Jack	Black	Shielded	Panel Mount	RG-174	50 Ohms	3 in	76.2 mm		Free Hanging (In-Line)	Bulkhead - Front Side Nut	BNC to TNC	Female	BNC Plug	4 GHz
Amphenol Custom Cable Q-0J04E0005006i	Male	TNC Jack	Copper	Shielded	Panel Mount	RG-316	50 Ohms	6 in	152.4 mm		Free Hanging (In-Line)	Bulkhead - Front Side Nut	BNC to TNC	Female	BNC Plug	4 GHz
Amphenol Custom Cable Q-0J04E00052.5M	Male	TNC Jack	Copper	Shielded	Panel Mount	RG-316	50 Ohms	98.4 in	2.5 m	8.2 '	Free Hanging (In-Line)	Bulkhead - Front Side Nut	BNC to TNC	Female	BNC Plug	4 GHz
Amphenol Custom Cable Q-0J04E0005084i	Male	TNC Jack	Copper	Shielded	Panel Mount	RG-316	50 Ohms	84 in	2.1 m	7 ft	Free Hanging (In-Line)	Bulkhead - Front Side Nut	BNC to TNC	Female	BNC Plug	4 GHz
Amphenol Custom Cable Q-0J04E00030.5M	Male	TNC Jack	Black	Shielded	Panel Mount	RG-174	50 Ohms	19.69 "	50 cm		Free Hanging (In-Line)	Bulkhead - Front Side Nut	BNC to TNC	Female	BNC Plug	4 GHz
Amphenol Custom Cable Q-0J04E0005048i	Male	TNC Jack	Copper	Shielded	Panel Mount	RG-316	50 Ohms	48 in	1200 mm	4 ft	Free Hanging (In-Line)	Bulkhead - Front Side Nut	BNC to TNC	Female	BNC Plug	4 GHz
Amphenol Custom Cable Q-0J04E0005002M	Male	TNC Jack	Copper	Shielded	Panel Mount	RG-316	50 Ohms	78.7 in	2 m	6.6 ft	Free Hanging (In-Line)	Bulkhead - Front Side Nut	BNC to TNC	Female	BNC Plug	4 GHz

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 73.85
		25	$ 72.43
		50	$ 71.00
		100	$ 69.58
		250	$ 68.16

Description

General part information

Q-0J04E0 Series

Cable Assembly Coaxial BNC to TNC RG-174 19.69" (500.00mm)

Documents

Technical documentation and resources

No documents available
