325001-09-0
ActiveCurtis Industries

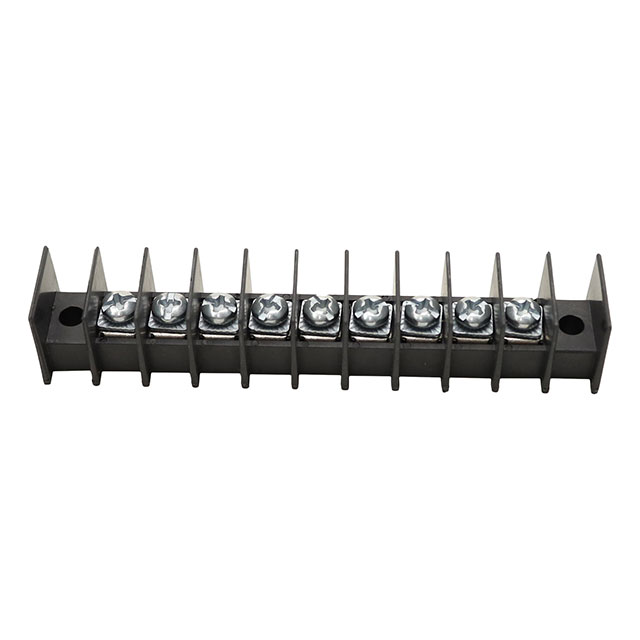

CONN BARRIER STRIP 9CIRC 0.325"
Deep-Dive with AI
Search across all available documentation for this part.
325001-09-0
ActiveCurtis Industries
CONN BARRIER STRIP 9CIRC 0.325"
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 325001-09-0 | 325001 Series |
|---|---|---|
| Barrier Type | 2 Wall (Dual) | 2 Wall (Dual) |
| Bottom Termination | Closed | Closed |
| Current Rating (Amps) | 15 A | 15 A |
| Features | Flange | Flange |
| Material - Insulation | Polypropylene (PP) | Polypropylene (PP) |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Panel, Chassis | Panel, Chassis |
| Number of Circuits | - | 3 - 24 |
| Number of Rows | 1 | 1 |
| Number of Wire Entries | 9 | 3 - 21 |
| Operating Temperature | 105 C | 105 C |
| Pitch [x] | 8.26 mm | 8.26 mm |
| Pitch [x] | 0.325 in | 0.325 in |
| Terminal Block Type | Barrier Block | Barrier Block |
| Terminal Screw Material | Steel | Steel |
| Top Termination | Screws | Screws |
| Voltage Rating | 300 VDC | 300 VDC |
| Wire Gauge [Max] | 22 AWG | 22 AWG |
| Wire Gauge [Min] | 14 AWG | 14 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 5.02 | |
| 10 | $ 3.83 | |||
| 30 | $ 3.59 | |||
| 50 | $ 3.19 | |||
| 100 | $ 3.12 | |||
| 250 | $ 3.05 | |||
325001 Series
CONN BARRIER STRIP 9CIRC 0.325"
| Part | Wire Gauge [Min] | Wire Gauge [Max] | Bottom Termination | Barrier Type | Pitch [x] | Pitch [x] | Features | Material Flammability Rating | Number of Rows | Current Rating (Amps) | Voltage Rating | Mounting Type | Terminal Screw Material | Terminal Block Type | Top Termination | Operating Temperature | Material - Insulation | Number of Wire Entries | Number of Circuits |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Curtis Industries 325001-09-0 | 14 AWG | 22 AWG | Closed | 2 Wall (Dual) | 8.26 mm | 0.325 in | Flange | UL94 V-0 | 1 | 15 A | 300 VDC | Chassis, Panel | Steel | Barrier Block | Screws | 105 C | Polypropylene (PP) | 9 | |
Curtis Industries 325001-18-0 | 14 AWG | 22 AWG | Closed | 2 Wall (Dual) | 8.26 mm | 0.325 in | Flange | UL94 V-0 | 1 | 15 A | 300 VDC | Chassis, Panel | Steel | Barrier Block | Screws | 105 C | Polypropylene (PP) | 18 | 18 |
Curtis Industries 325001-19-0 | 14 AWG | 22 AWG | Closed | 2 Wall (Dual) | 8.26 mm | 0.325 in | Flange | UL94 V-0 | 1 | 15 A | 300 VDC | Chassis, Panel | Steel | Barrier Block | Screws | 105 C | Polypropylene (PP) | 19 | 19 |
Curtis Industries 325001-03-0 | 14 AWG | 22 AWG | Closed | 2 Wall (Dual) | 8.26 mm | 0.325 in | Flange | UL94 V-0 | 1 | 15 A | 300 VDC | Chassis, Panel | Steel | Barrier Block | Screws | 105 C | Polypropylene (PP) | 3 | 3 |
Curtis Industries 325001-24-0 | 14 AWG | 22 AWG | Closed | 2 Wall (Dual) | 8.26 mm | 0.325 in | Flange | UL94 V-0 | 1 | 15 A | 300 VDC | Chassis, Panel | Steel | Barrier Block | Screws | 105 C | Polypropylene (PP) | 24 | |
Curtis Industries 325001-06-0 | 14 AWG | 22 AWG | Closed | 2 Wall (Dual) | 8.26 mm | 0.325 in | Flange | UL94 V-0 | 1 | 15 A | 300 VDC | Chassis, Panel | Steel | Barrier Block | Screws | 105 C | Polypropylene (PP) | 6 | 6 |
Curtis Industries 325001-21-0 | 14 AWG | 22 AWG | Closed | 2 Wall (Dual) | 8.26 mm | 0.325 in | Flange | UL94 V-0 | 1 | 15 A | 300 VDC | Chassis, Panel | Steel | Barrier Block | Screws | 105 C | Polypropylene (PP) | 21 | 21 |
Curtis Industries 325001-15-0 | 14 AWG | 22 AWG | Closed | 2 Wall (Dual) | 8.26 mm | 0.325 in | Flange | UL94 V-0 | 1 | 15 A | 300 VDC | Chassis, Panel | Steel | Barrier Block | Screws | 105 C | Polypropylene (PP) | 15 | 15 |
Curtis Industries 325001-07-0 | 14 AWG | 22 AWG | Closed | 2 Wall (Dual) | 8.26 mm | 0.325 in | Flange | UL94 V-0 | 1 | 15 A | 300 VDC | Chassis, Panel | Steel | Barrier Block | Screws | 105 C | Polypropylene (PP) | 7 | 7 |
Curtis Industries 325001-14-0 | 14 AWG | 22 AWG | Closed | 2 Wall (Dual) | 8.26 mm | 0.325 in | Flange | UL94 V-0 | 1 | 15 A | 300 VDC | Chassis, Panel | Steel | Barrier Block | Screws | 105 C | Polypropylene (PP) | 14 | 14 |
Description
General part information
325001 Series
9 Circuit 0.325" (8.26mm) Barrier Block Connector Screws
