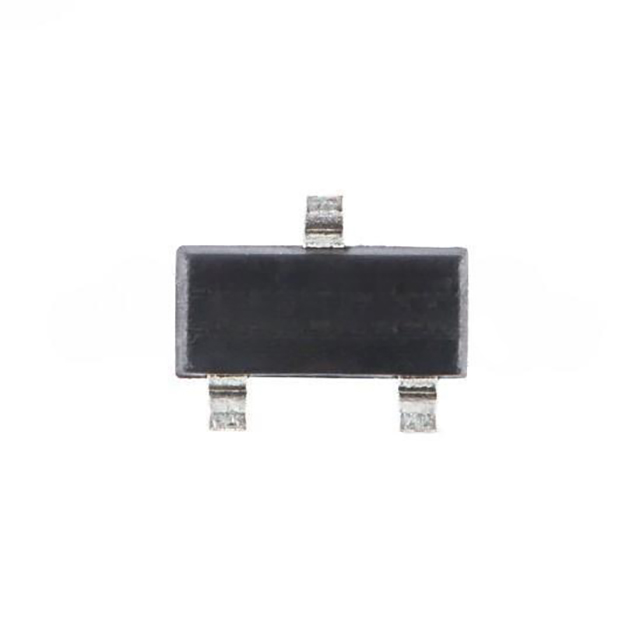

2N7002

Active

UMW

S0T-23 MOSFETS ROHS

Search across all available documentation for this part.

Active

UMW

S0T-23 MOSFETS ROHS

Technical Specifications

Parameters and characteristics for this part

Specification	2N7002

Current - Continuous Drain (Id) @ 25°C	115 mA
Drain to Source Voltage (Vdss)	60 V
Drive Voltage (Max Rds On, Min Rds On) [Max]	10 V
Drive Voltage (Max Rds On, Min Rds On) [Min]	5 V
FET Type	N-Channel
Input Capacitance (Ciss) (Max) @ Vds	50 pF
Mounting Type	Surface Mount
Operating Temperature	150 °C
Package / Case	SOT-23-3, TO-236-3, SC-59
Power Dissipation (Max)	225 mW
Rds On (Max) @ Id, Vgs	5 Ohm
Supplier Device Package	SOT-23
Technology	MOSFET (Metal Oxide)
Vgs (Max) [Max]	20 V
Vgs(th) (Max) @ Id	2.5 V

S0T-23 MOSFETS ROHS

Part	Technology	Rds On (Max) @ Id, Vgs	Drain to Source Voltage (Vdss)	Input Capacitance (Ciss) (Max) @ Vds	Current - Continuous Drain (Id) @ 25°C	Drive Voltage (Max Rds On, Min Rds On) [Max]	Drive Voltage (Max Rds On, Min Rds On) [Min]	Operating Temperature	FET Type	Mounting Type	Vgs (Max) [Max]	Package / Case	Supplier Device Package	Power Dissipation (Max)	Vgs(th) (Max) @ Id
UMW 2N7002	MOSFET (Metal Oxide)	5 Ohm	60 V	50 pF	115 mA	10 V	5 V	150 °C	N-Channel	Surface Mount	20 V	SC-59, SOT-23-3, TO-236-3	SOT-23	225 mW	2.5 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

N-Channel 60 V 115mA (Ta) 225mW (Ta) Surface Mount SOT-23
