Q-0D0140005.25M

Active

Amphenol Custom Cable

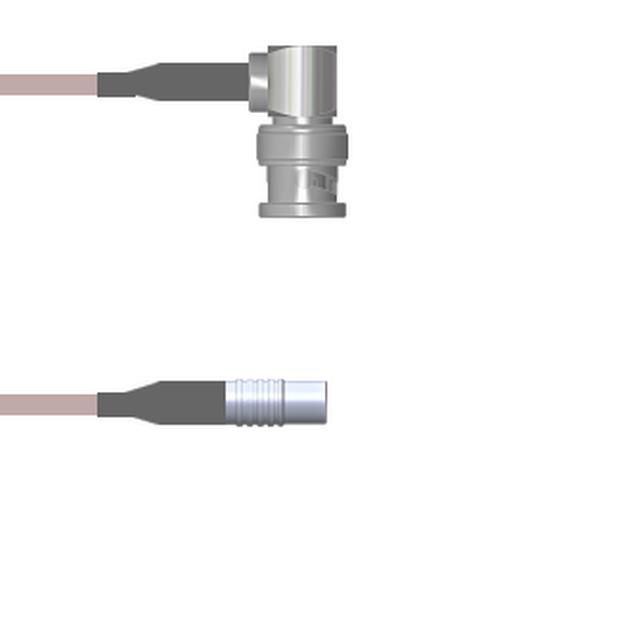

CBL ASSY BNC-MCX PLG-JACK 9.843"

Deep-Dive with AI

Search across all available documentation for this part.

Q-0D0140005.25M

Active

Amphenol Custom Cable

CBL ASSY BNC-MCX PLG-JACK 9.843"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-0D0140005.25M

1st Connector	BNC Plug, Right Angle
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	MCX Jack
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Female
Cable Type	RG-316
Color	Copper
Features	Shielded
Frequency - Max [Max]	4 GHz
Length [x]	9.843 "
Length [x]	250 mm
Overall Impedance	50 Ohms
Style	BNC to MCX

Q-0D0140 Series

Part	Features	Style	Color	2nd Connector	1st Contact Gender	1st Connector	2nd Contact Gender	Length	Length	Length	Cable Type	1st Connector Mounting Type	Frequency - Max [Max]	Overall Impedance	2nd Connector Mounting Type	Length [x]	Length [x]
Amphenol Custom Cable Q-0D0140005048i	Shielded	BNC to MCX	Copper	MCX Jack	Male	BNC Plug Right Angle	Female	1200 mm	4 ft	48 in	RG-316	Free Hanging (In-Line)	4 GHz	50 Ohms	Free Hanging (In-Line)
Amphenol Custom Cable Q-0D0140003060i	Shielded	BNC to MCX	Black	MCX Jack	Male	BNC Plug Right Angle	Female	1.5 m	5 ft	5 '	RG-174	Free Hanging (In-Line)	4 GHz	50 Ohms	Free Hanging (In-Line)
Amphenol Custom Cable Q-0D0140003006i	Shielded	BNC to MCX	Black	MCX Jack	Male	BNC Plug Right Angle	Female	152.4 mm		6 in	RG-174	Free Hanging (In-Line)	4 GHz	50 Ohms	Free Hanging (In-Line)
Amphenol Custom Cable Q-0D0140003002M	Shielded	BNC to MCX	Black	MCX Jack	Male	BNC Plug Right Angle	Female	2 m	6.6 ft	78.7 in	RG-174	Free Hanging (In-Line)	4 GHz	50 Ohms	Free Hanging (In-Line)
Amphenol Custom Cable Q-0D0140005084i	Shielded	BNC to MCX	Copper	MCX Jack	Male	BNC Plug Right Angle	Female	2.1 m	7 ft	84 in	RG-316	Free Hanging (In-Line)	4 GHz	50 Ohms	Free Hanging (In-Line)
Amphenol Custom Cable Q-0D0140005006i	Shielded	BNC to MCX	Copper	MCX Jack	Male	BNC Plug Right Angle	Female	152.4 mm		6 in	RG-316	Free Hanging (In-Line)	4 GHz	50 Ohms	Free Hanging (In-Line)
Amphenol Custom Cable Q-0D0140005072i	Shielded	BNC to MCX	Copper	MCX Jack	Male	BNC Plug Right Angle	Female	1.8 m	6 ft	72 in	RG-316	Free Hanging (In-Line)	4 GHz	50 Ohms	Free Hanging (In-Line)
Amphenol Custom Cable Q-0D0140005.25M	Shielded	BNC to MCX	Copper	MCX Jack	Male	BNC Plug Right Angle	Female				RG-316	Free Hanging (In-Line)	4 GHz	50 Ohms	Free Hanging (In-Line)	9.843 "	250 mm
Amphenol Custom Cable Q-0D0140003036i	Shielded	BNC to MCX	Black	MCX Jack	Male	BNC Plug Right Angle	Female	91.44 cm		36 in	RG-174	Free Hanging (In-Line)	4 GHz	50 Ohms	Free Hanging (In-Line)
Amphenol Custom Cable Q-0D0140005003i	Shielded	BNC to MCX	Copper	MCX Jack	Male	BNC Plug Right Angle	Female	76.2 mm		3 in	RG-316	Free Hanging (In-Line)	4 GHz	50 Ohms	Free Hanging (In-Line)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 104.58
		25	$ 102.57
		50	$ 100.55
		100	$ 98.54
		250	$ 96.52

Description

General part information

Q-0D0140 Series

Cable Assembly Coaxial BNC to MCX RG-316 9.843" (250.00mm)

Documents

Technical documentation and resources

No documents available
