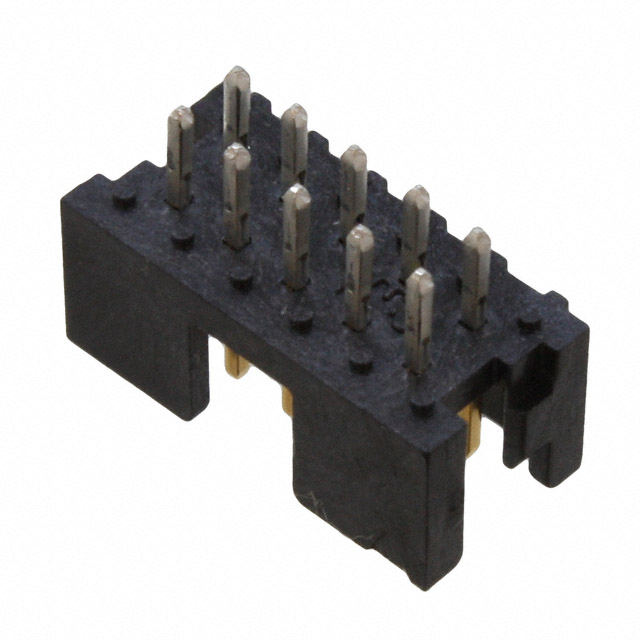

159210-6012

Active

CONN HEADER VERT 10POS 2MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

159210-6012

Active

CONN HEADER VERT 10POS 2MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	159210-6012	159210 Series

Connector Type	Header	Header
Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Tin	Tin
Contact Finish Thickness - Mating	15 µin	15 µin
Contact Finish Thickness - Mating	0.38 µm	0.38 µm
Contact Finish Thickness - Post	200 µin	200 µin
Contact Finish Thickness - Post	5.08 µm	5.08 µm
Contact Length - Mating	3.61 mm	3.61 mm
Contact Length - Mating	0.142 in	0.142 in
Contact Length - Post	2.84 mm	2.84 mm
Contact Length - Post	0.112 in	0.112 in
Contact Material	Copper Alloy	Copper Alloy
Contact Shape	Square	Square
Contact Type	Male Pin	Male Pin
Current Rating (Amps)	1.25 A	1.25 A
Fastening Type	Push-Pull	Push-Pull
Features	Keying Slot	Keying Slot
Insulation Color	Black	Black
Insulation Height	5.33 mm	5.33 - 6.13 mm
Insulation Height	0.21 in	0.21 - 0.241 in
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Surface Mount, Through Hole, Through Hole, Right Angle
Number of Positions	10	10
Number of Positions Loaded	All	All
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-55 °C	-55 °C
Pitch - Mating [x]	0.079 in	0.079 in
Pitch - Mating [x]	2 mm	2 mm
Row Spacing - Mating	0.079 in	0.079 in
Row Spacing - Mating	2 mm	2 mm
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall
Style	Board to Cable/Wire	Board to Cable/Wire
Termination	Solder	Solder
Voltage Rating	150 VDC	150 VDC

159210 Series

CONN HEADER SMD 10POS 2MM

Part	Shrouding	Insulation Color	Voltage Rating	Number of Positions	Style	Connector Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Mating	Contact Length - Mating	Contact Length - Mating	Contact Material	Material Flammability Rating	Mounting Type	Fastening Type	Termination	Features	Row Spacing - Mating	Row Spacing - Mating	Operating Temperature [Max]	Operating Temperature [Min]	Contact Shape	Contact Finish - Post	Pitch - Mating [x]	Pitch - Mating [x]	Number of Rows	Contact Type	Insulation Height	Insulation Height	Number of Positions Loaded	Current Rating (Amps)	Contact Length - Post	Contact Length - Post
3M 159210-2012	Shrouded - 4 Wall	Black	150 VDC	10	Board to Cable/Wire	Header	200 µin	5.08 µm	15 µin	0.38 µm	Gold	3.61 mm	0.142 in	Copper Alloy	UL94 V-0	Surface Mount	Push-Pull	Solder	Keying Slot	0.079 in	2 mm	105 ░C	-55 °C	Square	Tin	0.079 in	2 mm	2	Male Pin	5.33 mm	0.21 in	All	1.25 A
3M 159210-6012	Shrouded - 4 Wall	Black	150 VDC	10	Board to Cable/Wire	Header	200 µin	5.08 µm	15 µin	0.38 µm	Gold	3.61 mm	0.142 in	Copper Alloy	UL94 V-0	Through Hole	Push-Pull	Solder	Keying Slot	0.079 in	2 mm	105 ░C	-55 °C	Square	Tin	0.079 in	2 mm	2	Male Pin	5.33 mm	0.21 in	All	1.25 A	2.84 mm	0.112 in
3M 159210-5012	Shrouded - 4 Wall	Black	150 VDC	10	Board to Cable/Wire	Header	200 µin	5.08 µm	15 µin	0.38 µm	Gold	3.61 mm	0.142 in	Copper Alloy	UL94 V-0	Through Hole, Right Angle	Push-Pull	Solder	Keying Slot	0.079 in	2 mm	105 ░C	-55 °C	Square	Tin	0.079 in	2 mm	2	Male Pin	6.13 mm	0.241 in	All	1.25 A	2.84 mm	0.112 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

159210 Series

Connector Header Through Hole 10 position 0.079" (2.00mm)
