CCLB-1-3046 Series

Part	Ratings	Voltage	Termination Length	Termination Style	Current	Lens Color	Lamp Color	Lens Style	Ingress Protection	Panel Cutout Shape	Type	Viewing Angle	Millicandela Rating	Panel Cutout Dimension	Wavelength - Peak
Visual Communications Company - VCC CCLB-1-3046-9910-I	DC If (Max) Vf (Typ)	1.9 V 24 V	6 in	Wire Leads	20 mA	Red	Red	Domed Top Round	IP67	Round	LED	30 °	900 mcd	0.32 "	626 nm
Visual Communications Company - VCC CCLB-1-3046-9907-I	DC If (Max) Vf (Typ)	1.9 V 5 VDC	6 in	Wire Leads	20 mA	Red	Red	Domed Top Round	IP67	Round	LED	30 °	900 mcd	0.32 "	626 nm
Visual Communications Company - VCC CCLB-1-3046-9920-I	AC	120 V	6 in	Wire Leads	20 mA		Red	Domed Top Round	IP67	Round	LED	30 °	900 mcd	0.32 "	626 nm

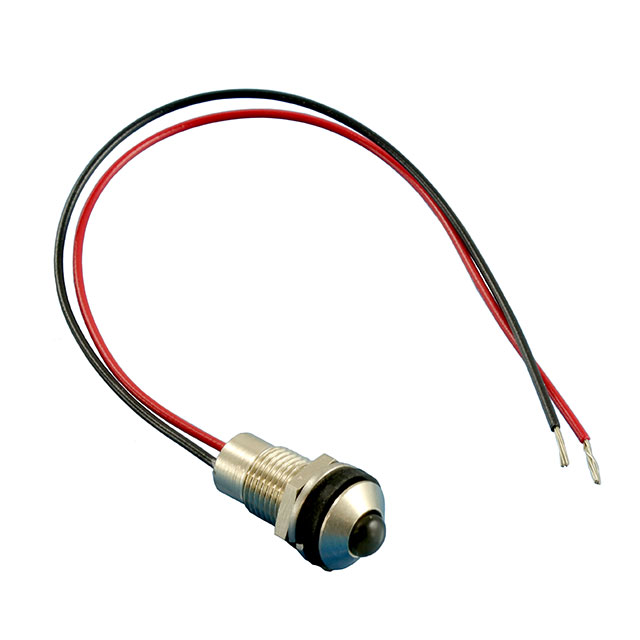

Visual Communications Company - VCC CCLB-1-3046-9908-I	DC	12 VDC	6 in	Wire Leads	20 mA		Red	Domed Top Round	IP67	Round	LED	30 °	900 mcd	0.32 "	626 nm
Visual Communications Company - VCC CCLB-1-3046-9912-I	DC If (Max) Vf (Typ)	1.9 V 48 V	6 in	Wire Leads	20 mA	Red	Red	Domed Top Round	IP67	Round	LED	30 °	900 mcd	0.32 "	626 nm
Visual Communications Company - VCC CCLB-1-3046-9923-I	DC	28 V	6 in	Wire Leads	20 mA		Red	Domed Top Round	IP67	Round	LED	30 °	900 mcd	0.32 "	626 nm
Visual Communications Company - VCC CCLB-1-3046-0000-I	If (Max) Vf (Typ)	1.9 V	6 in	Wire Leads	20 mA	Red	Red	Domed Top Round	IP67	Round	LED	30 °	900 mcd	0.32 "	626 nm
