HS2C5F20C

Active

Switchcraft Inc.

CONN PLUG FMALE 5POS GOLD CRIMP

Search across all available documentation for this part.

Active

Switchcraft Inc.

CONN PLUG FMALE 5POS GOLD CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	HS2C5F20C

Applications	Audio, Testing Equipment & Measurement, Agriculture, Medical, General
Cable Opening [Max] [diameter]	5.49 mm
Cable Opening [Max] [diameter]	0.216 in
Cable Opening [Min] [diameter]	4.57 mm
Cable Opening [Min] [diameter]	0.18 in
Color	Silver
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Fastening Type	Push-Pull
Ingress Protection	IP68, IP66, IP67
Insert Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 HF-1
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	135 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Electroless Nickel
Shell Material	Copper Alloy
Shielding	Shielded
Termination	Crimp, Solder Cup
Voltage Rating	125 VAC

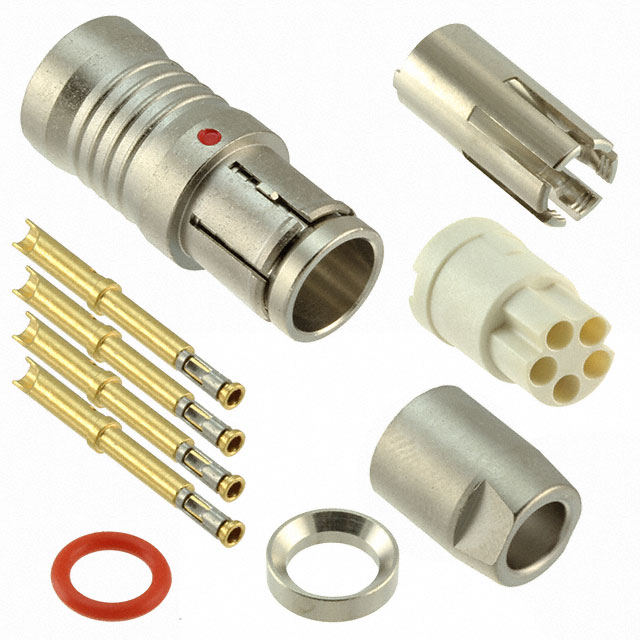

CONN PLUG FMALE 5POS GOLD CRIMP

Part	Contact Finish - Mating	Termination	Orientation	Shielding	Color	Voltage Rating	Applications	Fastening Type	Shell Finish	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Contact Material	Insert Material	Connector Type	Material Flammability Rating	Operating Temperature [Max]	Operating Temperature [Min]	Primary Material	Ingress Protection	Mounting Type	Shell Material
Switchcraft Inc. HS2C5F20C	Gold	Crimp, Solder Cup	Keyed	Shielded	Silver	125 VAC	Agriculture, Audio, General, Medical, Testing Equipment & Measurement	Push-Pull	Electroless Nickel	5.49 mm	4.57 mm	0.18 in	0.216 in	Copper Alloy	Liquid Crystal Polymer (LCP)	Female Sockets, Plug	UL94 HF-1	135 °C	-40 °C	Metal	IP66, IP67, IP68	Free Hanging (In-Line)	Copper Alloy

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

5 Position Circular Connector Plug, Female Sockets Crimp or Solder Cup
