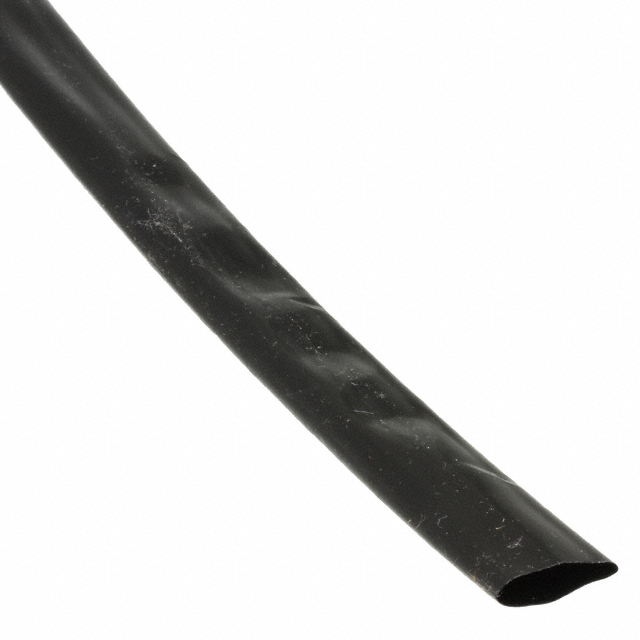

MT2000-10.0-0-SP

Unknown

TE Connectivity Raychem Cable Protection

HEAT SHRINK PO 2.5:1 .394" BLK

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsHeat Shrink Tubing Catalog Datasheet

MT2000-10.0-0-SP

Unknown

TE Connectivity Raychem Cable Protection

HEAT SHRINK PO 2.5:1 .394" BLK

Deep-Dive with AI

DocumentsHeat Shrink Tubing Catalog Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MT2000-10.0-0-SP

Color	Black
Features	Strain Resistant
Inner Diameter - Recovered [diameter]	3.99 mm
Inner Diameter - Recovered [diameter]	0.157 in
Inner Diameter - Supplied [diameter]	0.394 in
Inner Diameter - Supplied [diameter]	10.01 mm
Material	Polyolefin (PO), Irradiated
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Recovered Wall Thickness	0.014 "
Recovered Wall Thickness	0.36 mm
Shrink Temperature	110 °C
Shrinkage Ratio [Max]	2.5
Shrinkage Ratio [Min]	1
Type	Tubing, Semi Rigid

MT2000 Series

Part	Features	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Shrink Temperature	Type	Recovered Wall Thickness	Recovered Wall Thickness	Material	Shrinkage Ratio [Max]	Shrinkage Ratio [Min]	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]	Color	Length	Length	Spool Size	Spool Size	Length
TE Connectivity Raychem Cable Protection MT2000-3.0-3-SP	Strain Resistant	3.05 mm	0.12 in	-40 °C	105 ░C	110 °C	Tubing Semi Rigid	0.01 in	0.25 mm	Polyolefin (PO) Irradiated	2.5	1	0.047 in	1.19 mm
TE Connectivity Raychem Cable Protection MT2000-3.0-6-SP	Strain Resistant	3.05 mm	0.12 in	-40 °C	105 ░C	110 °C	Tubing Semi Rigid	0.01 in	0.25 mm	Polyolefin (PO) Irradiated	2.5	1	0.047 in	1.19 mm	Blue	762 m	2500 ft
TE Connectivity Raychem Cable Protection MT2000-3.0-2-SP	Strain Resistant	3.05 mm	0.12 in	-40 °C	105 ░C	110 °C	Tubing Semi Rigid	0.01 in	0.25 mm	Polyolefin (PO) Irradiated	2.5	1	0.047 in	1.19 mm	Red
TE Connectivity Raychem Cable Protection MT2000-2.0-X-SP	Strain Resistant	2.01 mm	0.079 "	-40 °C	105 ░C	110 °C	Tubing Semi Rigid	0.01 in	0.25 mm	Polyolefin (PO) Irradiated	2.5	1	0.031 in	0.79 mm	Clear	762 m	2500 ft	2500 ft	762 m	Enter Number of Feet in Order Quantity
TE Connectivity Raychem Cable Protection MT2000-10.0-0-SP	Strain Resistant	10.01 mm	0.394 in	-40 °C	105 ░C	110 °C	Tubing Semi Rigid	0.014 "	0.36 mm	Polyolefin (PO) Irradiated	2.5	1	0.157 in	3.99 mm	Black
TE Connectivity Raychem Cable Protection MT2000-6.0-0-SP	Strain Resistant	5.99 mm	0.236 in	-40 °C	105 ░C	110 °C	Tubing Semi Rigid	0.01 in	0.25 mm	Polyolefin (PO) Irradiated	2.5	1	0.095 in	2.41 mm	Black	457.2 m	1500 '
TE Connectivity Raychem Cable Protection MT2000-0.265-0-SP	Strain Resistant	6.73 mm	0.265 in	-40 °C	105 ░C	110 °C	Tubing Semi Rigid			Polyolefin (PO) Irradiated	2.5	1			Black
TE Connectivity Raychem Cable Protection MT2000-0.095-0-STK	Strain Resistant	2.41 mm	0.095 in	-40 °C	105 ░C	110 °C	Tubing Semi Rigid			Polyolefin (PO) Irradiated	2.5	1			Black
TE Connectivity Raychem Cable Protection MT2000A-3.0-X-SP		3.05 mm	0.12 in	-40 °C	105 ░C	110 °C	Tubing Semi Rigid	0.01 in	0.25 mm	Polyolefin (PO) Irradiated	2.5	1	0.047 in	1.19 mm	Clear	762 m	2500 ft
TE Connectivity Raychem Cable Protection MT2000-6.0-4-SP	Strain Resistant	5.99 mm	0.236 in	-40 °C	105 ░C	110 °C	Tubing Semi Rigid	0.01 in	0.25 mm	Polyolefin (PO) Irradiated	2.5	1	0.095 in	2.41 mm	Yellow

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

MT2000 Series

Heat Shrink Tubing, Semi Rigid 0.394" (10.01mm) 2.5 to 1 Black 1.00' (304.80mm, 12.00")

Documents

Technical documentation and resources

Heat Shrink Tubing Catalog

Datasheet
