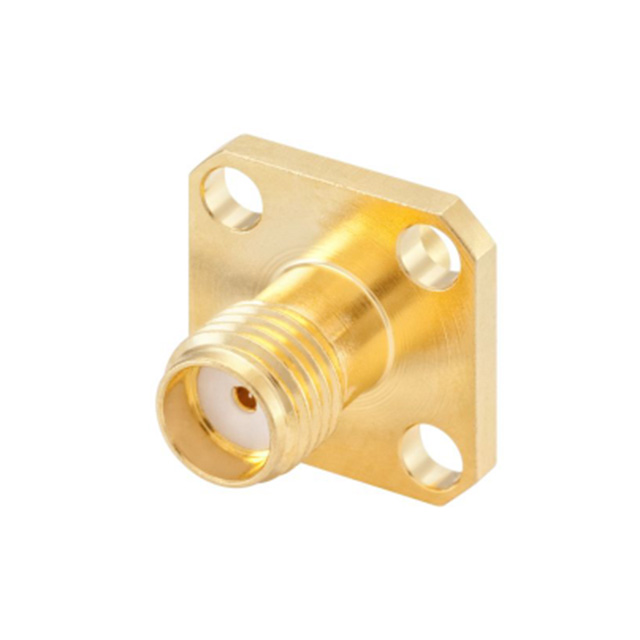

32K401-272L5

Active

Rosenberger

CONN SMA JACK STR 50OHM SOLDER

Search across all available documentation for this part.

Active

Rosenberger

CONN SMA JACK STR 50OHM SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	32K401-272L5

Body Finish	Gold
Body Material	Beryllium Copper
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMA
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	18 GHz
Housing Color	Gold
Impedance	50 Ohms
Mating Cycles	500
Mounting Feature	Flange
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder
Voltage Rating	480 V

Part	Center Contact Material	Dielectric Material	Operating Temperature [Min]	Operating Temperature [Max]	Mating Cycles	Connector Type	Impedance	Connector Style	Center Contact Plating	Voltage Rating	Number of Ports	Mounting Feature	Shield Termination	Body Material	Frequency - Max [Max]	Body Finish	Housing Color	Contact Termination
Rosenberger 32K401-272L5	Beryllium Copper	Polytetrafluoroethylene (PTFE)	-65 ░C	165 °C	500	Female Socket Jack	50 Ohms	SMA	Gold	480 V	1	Flange	Solder	Beryllium Copper	18 GHz	Gold	Gold	Solder

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

SMA Connector Jack, Female Socket 50 Ohms Panel Mount Solder

Technical documentation and resources

No documents available
