HD D SUB CONN, RCPT, 26POS, DA, SLDR CUP ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
180-026-203L021
ActiveMH Connectors
HD D SUB CONN, RCPT, 26POS, DA, SLDR CUP ROHS COMPLIANT: YES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 180-026-203L021 |
|---|---|
| Connector Style | High Density, D-Sub |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Contact Material | Brass |
| Contact Type | Signal |
| Current Rating (Amps) | 5 A |
| Dielectric Material | Polybutylene Terephthalate (PBT) |
| Features | Shielded |
| Flange Feature | Cable Side |
| Material Flammability Rating | UL94 V-0 |
| Number of Positions | 26 |
| Number of Rows | 3 |
| Shell Material, Finish | Nickel Plated, Steel |
| Shell Size, Connector Layout | 2 |
| Shell Size, Connector Layout | (DA, A) High Density |
180-026 Series
| Part | Number of Rows | Dielectric Material | Flange Feature | Contact Material | Contact Type | Features | Shell Material, Finish | Contact Finish | Contact Finish Thickness | Connector Style | Current Rating (Amps) | Material Flammability Rating | Number of Positions | Connector Type | Shell Size, Connector Layout | Shell Size, Connector Layout | Color | Mounting Type | Termination | Note | Contact Form |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
MH Connectors | 3 | Polybutylene Terephthalate (PBT) | 4-40 | Brass | Signal | Shielded | Steel Yellow Chromate Plated | Gold | Flash | D-Sub High Density | 5 A | UL94 V-0 | 26 | Male Pins Plug | 2 | (DA A) High Density | |||||
MH Connectors | 3 | Polyester Glass Filled | Housing/Shell (Unthreaded) | Signal | Gold | Flash | D-Sub High Density | 2 A | UL94 V-0 | 26 | Receptacle Female Sockets | 2 | (DA A) High Density | Black | Panel Mount Through Hole | Solder | |||||
MH Connectors | 3 | Polybutylene Terephthalate (PBT) | Cable Side | Brass | Signal | Shielded | Nickel Plated Steel | Gold | Flash | D-Sub High Density | 5 A | UL94 V-0 | 26 | Receptacle Female Sockets | 2 | (DA A) High Density | |||||
MH Connectors | 3 | Polybutylene Terephthalate (PBT) | Cable Side | Signal | Gold | Flash | D-Sub High Density | 2 A | UL94 V-0 | 26 | Receptacle Female Sockets | 2 | (DA A) High Density | Black | |||||||
MH Connectors | 3 | Polybutylene Terephthalate (PBT) | Cable Side | Brass | Signal | Shielded | Gold | Flash | D-Sub High Density | 5 A | UL94 V-0 | 26 | Receptacle Female Sockets | 2 | (DA A) High Density | ||||||
MH Connectors | 3 | Cable Side | Signal | Shielded | D-Sub High Density | 26 | Receptacle for Female Contacts | 2 | (DA A) High Density | Free Hanging (In-Line) | Contacts Not Included | ||||||||||
MH Connectors | 3 | Polybutylene Terephthalate (PBT) | Housing/Shell (Unthreaded) | Brass | Signal | Shielded | Steel Yellow Chromate Plated | Gold | Flash | D-Sub High Density | 5 A | UL94 V-0 | 26 | Male Pins Plug | 2 | (DA A) High Density | |||||
MH Connectors | 3 | Polybutylene Terephthalate (PBT) | Housing/Shell (Unthreaded) | Signal | Grounding Indents | Gold | Flash | D-Sub High Density | 2 A | UL94 V-0 | 26 | Male Pins Plug | 2 | (DA A) High Density | Black | ||||||
MH Connectors | 3 | Polybutylene Terephthalate (PBT) | 4-40 | Brass | Signal | Shielded | Steel Yellow Chromate Plated | Gold | Flash | D-Sub High Density | 5 A | UL94 V-0 | 26 | Receptacle Female Sockets | 2 | (DA A) High Density | Stamped | ||||
MH Connectors | 3 | Polybutylene Terephthalate (PBT) | Cable Side | Brass | Signal | Shielded | Nickel Plated Steel | Gold | Flash | D-Sub High Density | 5 A | UL94 V-0 | 26 | Receptacle Female Sockets | 2 | (DA A) High Density |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
180-026 Series

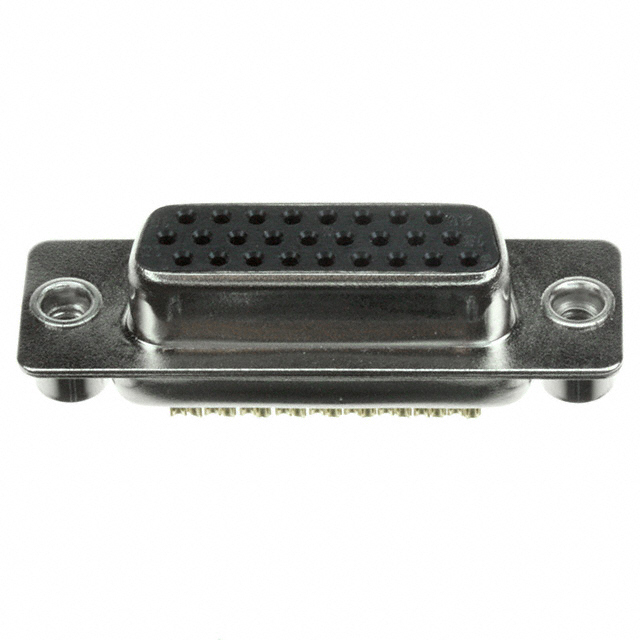

26 Position D-Sub, High Density Receptacle, Female Sockets Connector
