10220-6212PC
ActiveD SUB CONNECTOR, 20 CONTACTS, RECEPTACLE, SOLDER, MDR 102 SERIES, STEEL BODY
Deep-Dive with AI
Search across all available documentation for this part.
10220-6212PC
ActiveD SUB CONNECTOR, 20 CONTACTS, RECEPTACLE, SOLDER, MDR 102 SERIES, STEEL BODY
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 10220-6212PC | 10220 Series |
|---|---|---|
| - | - | |
| Connector Style | Outer Shroud Contacts | Outer Shroud Contacts |
| Connector Type | Receptacle | Receptacle, Stacked |
| Connector Type | - | 2 Plugs |
| Contact Finish | Gold | Gold |
| Contact Finish Thickness | 0.76 Ám | 0.203 - 0.76 Ám |
| Contact Finish Thickness | 30 Áin | 8 - 30 Áin |
| Features | Shielded | Shielded, Board Lock, Board Guide |
| Flange Feature | Housing/Shell | Housing/Shell, Housing/Shell (4-40), Latchblocks |
| Flange Feature | 2.6 M | 2.6 M |
| Mounting Type | Through Hole, Panel Mount | Through Hole, Right Angle, Panel Mount, Free Hanging (In-Line), Surface Mount, Right Angle, Through Hole, Right Angle, Surface Mount |
| Number of Positions | 20 | 20 |
| Number of Rows | 2 | 2 |
| Termination | Solder | Solder, IDC, Press-Fit |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
10220 Series
CONN MINI D RIBBON RCP 20 POS 2.54MM SOLDER RA THRU-HOLE 20 TERMINAL 1 PORT BOX
| Part | Flange Feature | Flange Feature | Number of Positions | Connector Type | Features | Connector Style | Termination | Mounting Type | Contact Finish | Number of Rows | Contact Finish Thickness | Contact Finish Thickness | Connector Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Housing/Shell | 2.6 M | 20 | Receptacle | Board Lock, Shielded | Outer Shroud Contacts | Solder | Panel Mount, Right Angle, Through Hole | Gold | 2 | 0.76 Ám | 30 Áin | ||
Housing/Shell | 2.6 M | 20 | Receptacle | Shielded | Outer Shroud Contacts | IDC | Free Hanging (In-Line) | Gold | 2 | 0.76 Ám | 30 Áin | ||
Housing/Shell | 2.6 M | 20 | Receptacle | Board Guide, Shielded | Outer Shroud Contacts | Solder | Through Hole | Gold | 2 | 0.51 µm | 20 µin | ||
Housing/Shell | 2.6 M | 20 | Receptacle | Board Lock, Shielded | Outer Shroud Contacts | Solder | Panel Mount, Right Angle, Through Hole | Gold | 2 | 0.203 çm | 8 çin | ||
Housing/Shell | 2.6 M | 20 | Receptacle | Board Guide, Shielded | Outer Shroud Contacts | Solder | Surface Mount, Right Angle | Gold | 2 | 0.51 µm | 20 µin | ||
Housing/Shell | 2.6 M | 20 | Receptacle | Shielded | Outer Shroud Contacts | Solder | Panel Mount, Through Hole | Gold | 2 | 0.76 Ám | 30 Áin | ||
Description
General part information
10220 Series

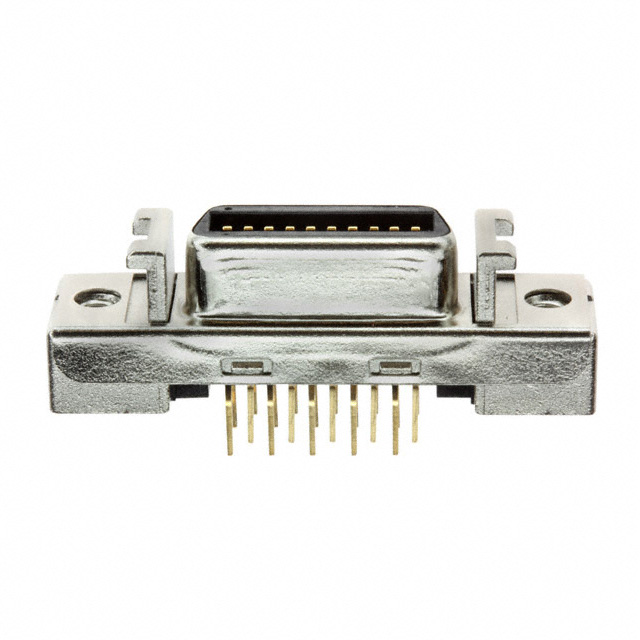

The 10220-6212PC is a 20-way 0.050-inch shielded boardmount Vertical Receptacle with gold-plated copper alloy contacts, through hole termination and PCB mounting. This 102 series connector is glass filled polyester (PBT) insulated, rugged die cast metal case construction, M2.5 (standard) lockstand thread.
