2303-2-01-80-00-00-07-0
ActiveMill-Max Manufacturing Corp.
CONN PC PIN CIRC
Deep-Dive with AI
Search across all available documentation for this part.
2303-2-01-80-00-00-07-0
ActiveMill-Max Manufacturing Corp.
CONN PC PIN CIRC
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 2303-2-01-80-00-00-07-0 |
|---|---|
| Board Thickness | 0.062 in |
| Board Thickness | 1.57 mm |
| Contact Finish | Tin |
| Contact Finish Thickness | 200 Áin |
| Contact Finish Thickness | 5.08 Ám |
| Contact Material | Brass Alloy |
| Flange Diameter [diameter] | 2.39 mm |
| Flange Diameter [diameter] | 0.094 in |
| Insulation | Non-Insulated |
| Length - Above Flange [x] | 3.96 mm |
| Length - Above Flange [x] | 0.156 in |
| Length - Below Flange [x] | 2.13 mm |
| Length - Below Flange [x] | 0.084 in |
| Length - Overall | 6.1 mm |
| Length - Overall [x] | 0.24 " |
| Mounting Hole Diameter | 1.63 mm |
| Mounting Hole Diameter [diameter] | 0.064 in |
| Mounting Type | Through Hole |
| Terminal Style | Single End, Slotted |
| Terminal Type | PC Pin |
| Termination | Swage |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.14 | |
| 10 | $ 0.12 | |||
| 25 | $ 0.11 | |||
| 50 | $ 0.10 | |||
| 100 | $ 0.09 | |||
| 250 | $ 0.08 | |||
| 500 | $ 0.08 | |||
| 1000 | $ 0.07 | |||
| 3000 | $ 0.06 | |||
Description
General part information
2303-2 Series

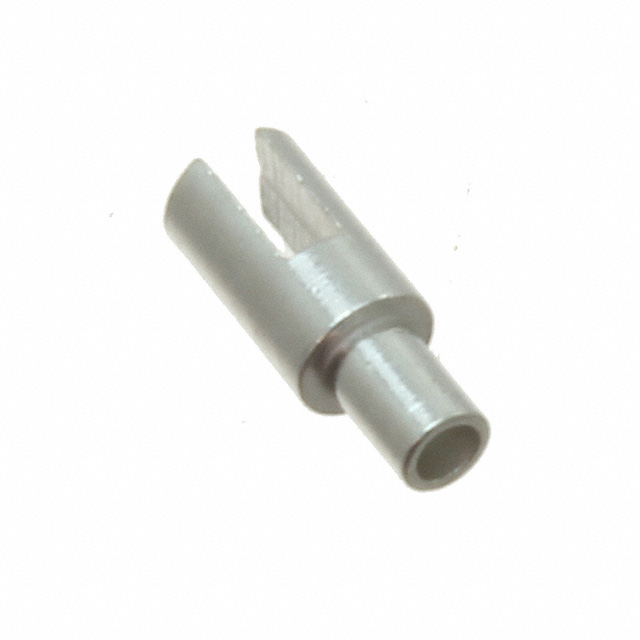

PC Pin Terminal Connector Through Hole Tin 0.094" (2.39mm) Dia
