MAX9814EVKIT+
ActiveAnalog Devices Inc./Maxim Integrated
EVALUATION KIT FOR MAX9814
Deep-Dive with AI
Search across all available documentation for this part.
MAX9814EVKIT+
ActiveAnalog Devices Inc./Maxim Integrated
EVALUATION KIT FOR MAX9814
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | MAX9814EVKIT+ | MAX9814 Series |
|---|---|---|
| Contents | Board(s) | Board(s) |
| Embedded | False | False |
| Features | - | Shutdown, Microphone, AGC |
| Function | Microphone Amp | Microphone Amp |
| Mounting Type | - | Surface Mount |
| Operating Temperature | - | 85 °C |
| Operating Temperature | - | -40 °C |
| Output Type | - | 1-Channel (Mono) |
| Package / Case | - | 14-WFDFN Exposed Pad |
| Primary Attributes | Automatic Gain Control (AGC) | Automatic Gain Control (AGC) |
| Secondary Attributes [Max] | 5.5 V | 5.5 V |
| Secondary Attributes [Min] | 2.7 V | 2.7 V |
| Supplied Contents | Board(s) | Board(s) |
| Supplier Device Package | - | 14-TDFN (3x3) |
| Type | Audio | Audio, Class AB |
| Utilized IC / Part | MAX9814 | MAX9814 |
| Voltage - Supply | - | 2.7 V |
| Voltage - Supply | - | 5.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 82.64 | |
MAX9814 Series
EVALUATION KIT FOR MAX9814
| Part | Contents | Utilized IC / Part | Embedded | Secondary Attributes [Min] | Secondary Attributes [Max] | Supplied Contents | Type | Primary Attributes | Function | Output Type | Supplier Device Package | Voltage - Supply [Min] | Voltage - Supply [Max] | Mounting Type | Package / Case | Operating Temperature [Max] | Operating Temperature [Min] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Analog Devices Inc./Maxim Integrated MAX9814EVKIT+ | Board(s) | MAX9814 | 2.7 V | 5.5 V | Board(s) | Audio | Automatic Gain Control (AGC) | Microphone Amp | ||||||||||
Analog Devices Inc./Maxim Integrated MAX9814ETD+ | Class AB | 1-Channel (Mono) | 14-TDFN (3x3) | 2.7 V | 5.5 V | Surface Mount | 14-WFDFN Exposed Pad | 85 °C | -40 °C | |||||||||
Analog Devices Inc./Maxim Integrated MAX9814ETD+T | Class AB | 1-Channel (Mono) | 14-TDFN (3x3) | 2.7 V | 5.5 V | Surface Mount | 14-WFDFN Exposed Pad | 85 °C | -40 °C | AGC, Microphone, Shutdown |
Description
General part information
MAX9814 Series

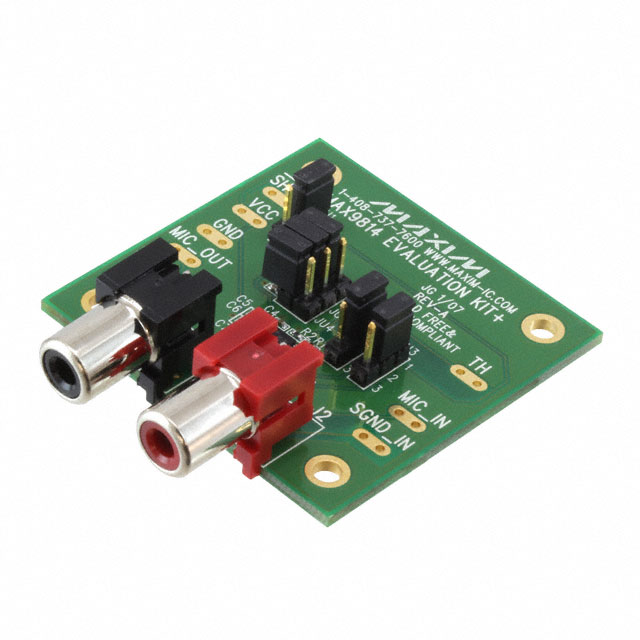

MAX9814 Microphone Amp Audio Evaluation Board
