Specification	42-00009

Backshell Material, Plating	Polyamide (PA6), Nylon 6, Glass Filled
Cable Opening (Max)	0.217 in
Cable Opening (Min)	0.157 in
Color	Black, Silver
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Zinc
Current Rating	4 A
Fastening Type	Threaded
Features	Backshell
Ingress Protection Description	Waterproof, Dust Tight
Ingress Protection IP Rating	IP67
Insert Material	Glass Filled, Nylon 6, PA6, Polyamide
Material Flammability Rating	UL94
Mounting Type	Free Hanging (In-Line)
Number of Positions	3
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-30 °C
Orientation	A
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Copper Zinc
Shell Size - Insert	M8-3
Shielding	Unshielded
Termination	Screw
Voltage Rating	60 V

42-0000 Series

Part	Termination	Orientation	Shell Material	Color	Shell Finish	Current Rating	Cable Opening (Min)	Cable Opening (Max)	Shell Size - Insert	Connector Type	Ingress Protection Description	Ingress Protection IP Rating	Shielding	Contact Finish - Mating	Operating Temperature (Max)	Operating Temperature (Min)	Number of Positions	Primary Material	Fastening Type	Voltage Rating	Features	Material Flammability Rating	Mounting Type	Contact Material	Insert Material	Backshell Material, Plating
McGill Microwave Systems 42-00008	Solder Cup	A	Zinc Die Cast	Black Silver	Nickel	3 A	0.157 in	0.217 in	M8-4	Female Sockets Plug	Dust Tight Waterproof	IP67	Unshielded	Gold	85 °C	-30 °C	4	Metal	Threaded	30 V	Backshell Coupling Nut	UL94	Free Hanging (In-Line)	Copper Zinc	Glass Filled Nylon 6 PA6 Polyamide	Glass Filled Nylon 6 Polyamide (PA6)

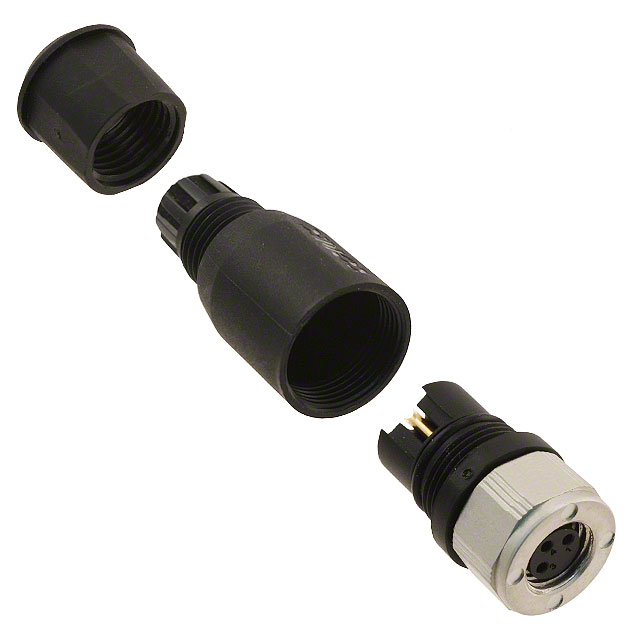

McGill Microwave Systems 42-00006	Solder Cup	A	Zinc Die Cast	Black Silver	Nickel	3 A	0.157 in	0.217 in	M8-3	Female Sockets Plug	Dust Tight Waterproof	IP67	Unshielded	Gold	85 °C	-30 °C	3	Metal	Threaded	60 V	Backshell Coupling Nut	UL94	Free Hanging (In-Line)	Copper Zinc	Glass Filled Nylon 6 PA6 Polyamide	Glass Filled Nylon 6 Polyamide (PA6)

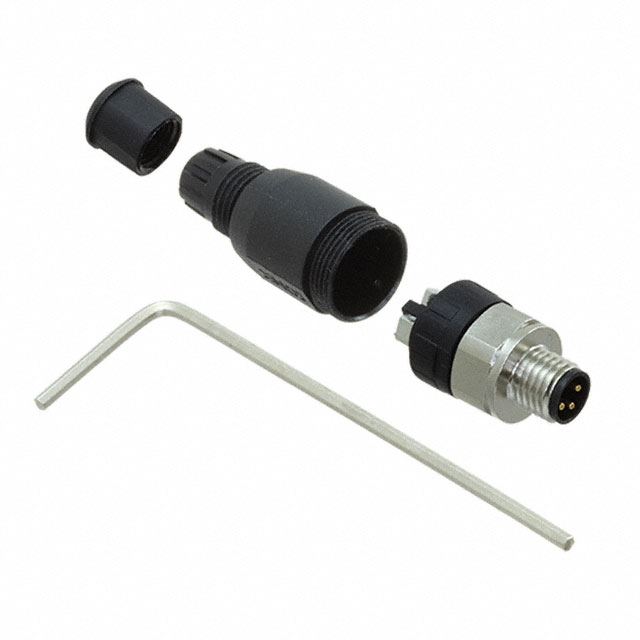

McGill Microwave Systems 42-00009	Screw	A	Copper Zinc	Black Silver	Nickel	4 A	0.157 in	0.217 in	M8-3	Male Pins Receptacle	Dust Tight Waterproof	IP67	Unshielded	Gold	85 °C	-30 °C	3	Metal	Threaded	60 V	Backshell	UL94	Free Hanging (In-Line)	Copper Zinc	Glass Filled Nylon 6 PA6 Polyamide	Glass Filled Nylon 6 Polyamide (PA6)
McGill Microwave Systems 42-00005	Solder Cup	A	Zinc Die Cast	Black Silver	Nickel	3 A	0.157 in	0.217 in	M8-3	Male Pins Receptacle	Dust Tight Waterproof	IP67	Unshielded	Gold	85 °C	-30 °C	3	Metal	Threaded	60 V	Backshell	UL94	Free Hanging (In-Line)	Copper Zinc	Glass Filled Nylon 6 PA6 Polyamide	Glass Filled Nylon 6 Polyamide (PA6)
