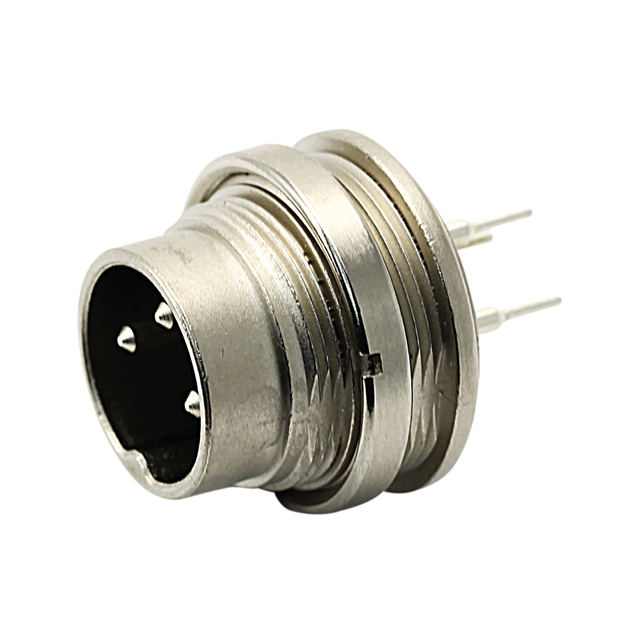

T 3506 404

Active

Amphenol Sine Systems Corp

REAR MOUNTING MALE RECEPTACLE WI

Search across all available documentation for this part.

Active

Amphenol Sine Systems Corp

REAR MOUNTING MALE RECEPTACLE WI

Technical Specifications

Parameters and characteristics for this part

Specification	T 3506 404

Applications	Marine, Industrial, Medical, Instrumentation, Testing Equipment & Measurement
Color	Silver
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Current Rating (Amps)	7 A
Ingress Protection	IP40
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Panel Mount
Number of Positions	8
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Zinc Die Cast
Shell Size - Insert	M16-8
Shielding	Shielded
Termination	Solder
Voltage Rating	250 VDC

Part	Mounting Type	Primary Material	Orientation	Voltage Rating	Contact Finish - Mating	Shielding	Mounting Feature	Color	Shell Material	Termination	Ingress Protection	Shell Size - Insert	Connector Type	Current Rating (Amps)	Applications	Shell Finish	Number of Positions	Material Flammability Rating	Insert Material	Operating Temperature [Max]	Operating Temperature [Min]	Housing Color	Note	Includes	Contact Type	Contact Shape	Contact Size	Type
Amphenol Sine Systems Corp T 3506 404	Panel Mount Through Hole	Metal	Keyed	250 VDC	Gold	Shielded	Bulkhead - Front Side Nut	Silver	Zinc Die Cast	Solder	IP40	M16-8	Male Pins Receptacle	7 A	Industrial Instrumentation Marine Medical Testing Equipment & Measurement	Nickel	8	UL94 V-0	Thermoplastic	100 °C	-40 °C
Amphenol Sine Systems Corp T 3506 150			Keyed			Shielded	Bulkhead - Front Side Nut		Die Cast		IP40	M16-8	Receptacle Housing			Nickel	8	UL94 V-0	Thermoplastic	100 °C	-40 °C	Silver	Contacts Not Included	1 Connector 1 Nut	Crimp	Circular	1.5 mm	For Male Pins

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

8 Position Circular Connector Receptacle, Male Pins Solder
