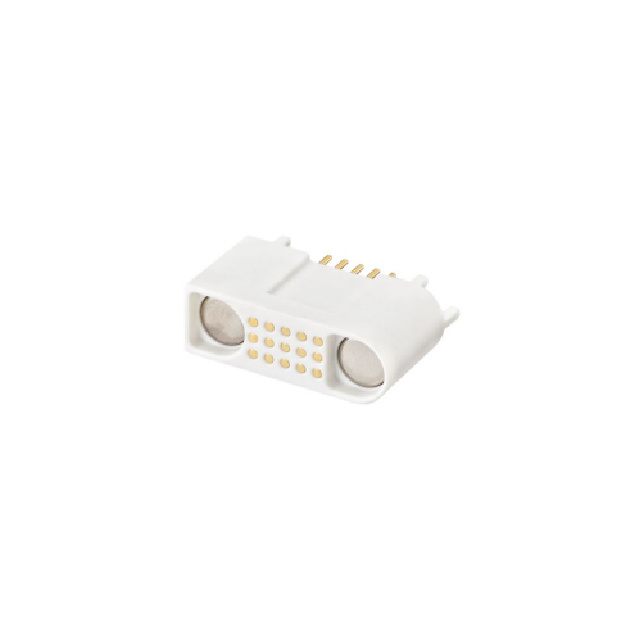

Specification	M9K115-400L

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Material	Brass
Contact Shape	Circular
Contact Type	Female Socket
Current Rating (Per Contact)	1.5 A
Fastening Type	Latch Holder
Features	Board Guide
Insulation Color	White
Insulation Height	0.768 in
Insulation Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	15
Number of Positions Loaded	All
Number of Rows	3
Operating Temperature (Max)	65 °C
Operating Temperature (Min)	-25 °C
Pitch - Mating	0.1 in
Row Spacing - Mating	0.1 in
Style	Cable/Wire, Board
Termination	Solder
Voltage Rating	12 V

M9K115 Series

Part	Current Rating (Per Contact)	Number of Rows	Termination	Row Spacing - Mating	Number of Positions	Operating Temperature (Min)	Operating Temperature (Max)	Features	Voltage Rating	Mounting Type	Material Flammability Rating	Fastening Type	Insulation Height	Contact Type	Insulation Color	Contact Finish - Mating	Style	Pitch - Mating	Number of Positions Loaded	Connector Type	Contact Shape	Contact Material	Insulation Material
Rosenberger M9K115-400L	1.5 A	3	Solder	0.1 in	15	-25 °C	65 °C	Board Guide	12 V	Through Hole	UL94 V-0	Latch Holder	0.768 in	Female Socket	White	Gold	Board Cable/Wire	0.1 in	All	Receptacle	Circular	Brass	Polybutylene Terephthalate (PBT)
