Specification	VS-30TPS16LHM3

Current - Gate Trigger (Igt) (Max)	45 mA
Current - Hold (Ih) (Max)	150 mA
Current - Non Rep. Surge (Itsm)	300 A
Current - Non Rep. Surge Frequencies	50Hz, 60Hz
Current - Non Rep. Surge Type	Itsm
Current - Off State (Max)	10 mA
Current - On State (It (RMS)) (Max)	30 A
Current - On State (Max)	20 A
Grade	Automotive
Mounting Type	Through Hole
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-40 °C

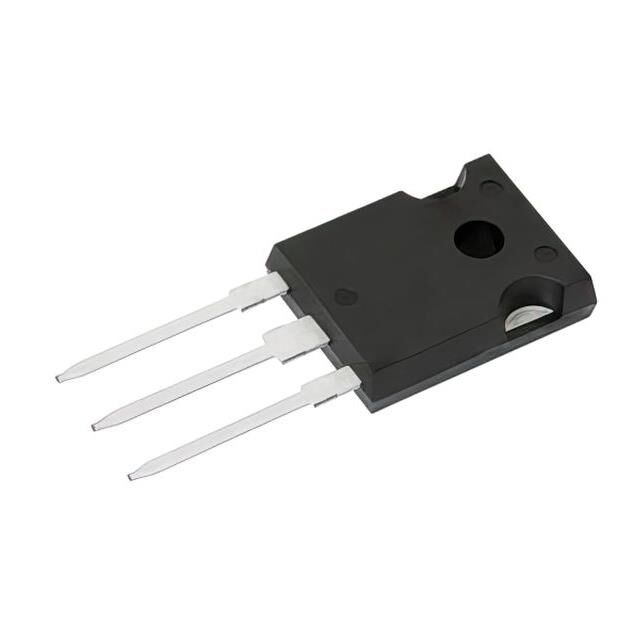

Package / Case	TO-247-3
Package Name	TO-247AD
Qualification	AEC-Q101
SCR Type	Standard Recovery
Voltage - Gate Trigger (Vgt) (Max)	2 V
Voltage - Off State	1.6 kV
Voltage - On State (Vtm) (Max)	1.3 V

30TPS16 Series

Part	Grade	Operating Temperature (Max)	Operating Temperature (Min)	Current - Gate Trigger (Igt) (Max)	Current - Hold (Ih) (Max)	Current - On State (Max)	Voltage - Gate Trigger (Vgt) (Max)	Current - Off State (Max)	Current - On State (It (RMS)) (Max)	Current - Non Rep. Surge Type	Current - Non Rep. Surge Frequencies	Current - Non Rep. Surge (Itsm)	Mounting Type	SCR Type	Package / Case	Voltage - On State (Vtm) (Max)	Package Name	Qualification	Voltage - Off State
Vishay General Semiconductor - Diodes Division VS-30TPS16LHM3	Automotive	125 °C	-40 °C	45 mA	150 mA	20 A	2 V	10 mA	30 A	Itsm	50Hz 60Hz	300 A	Through Hole	Standard Recovery	TO-247-3	1.3 V	TO-247AD	AEC-Q101	1.6 kV
Vishay General Semiconductor - Diodes Division VS-30TPS16L-M3		125 °C	-40 °C	45 mA	150 mA	20 A	2 V	500 µA	30 A	Itsm	50Hz 60Hz	300 A 314 A	Through Hole	Standard Recovery	TO-247-3	1.3 V	TO-247AD		1.6 kV
