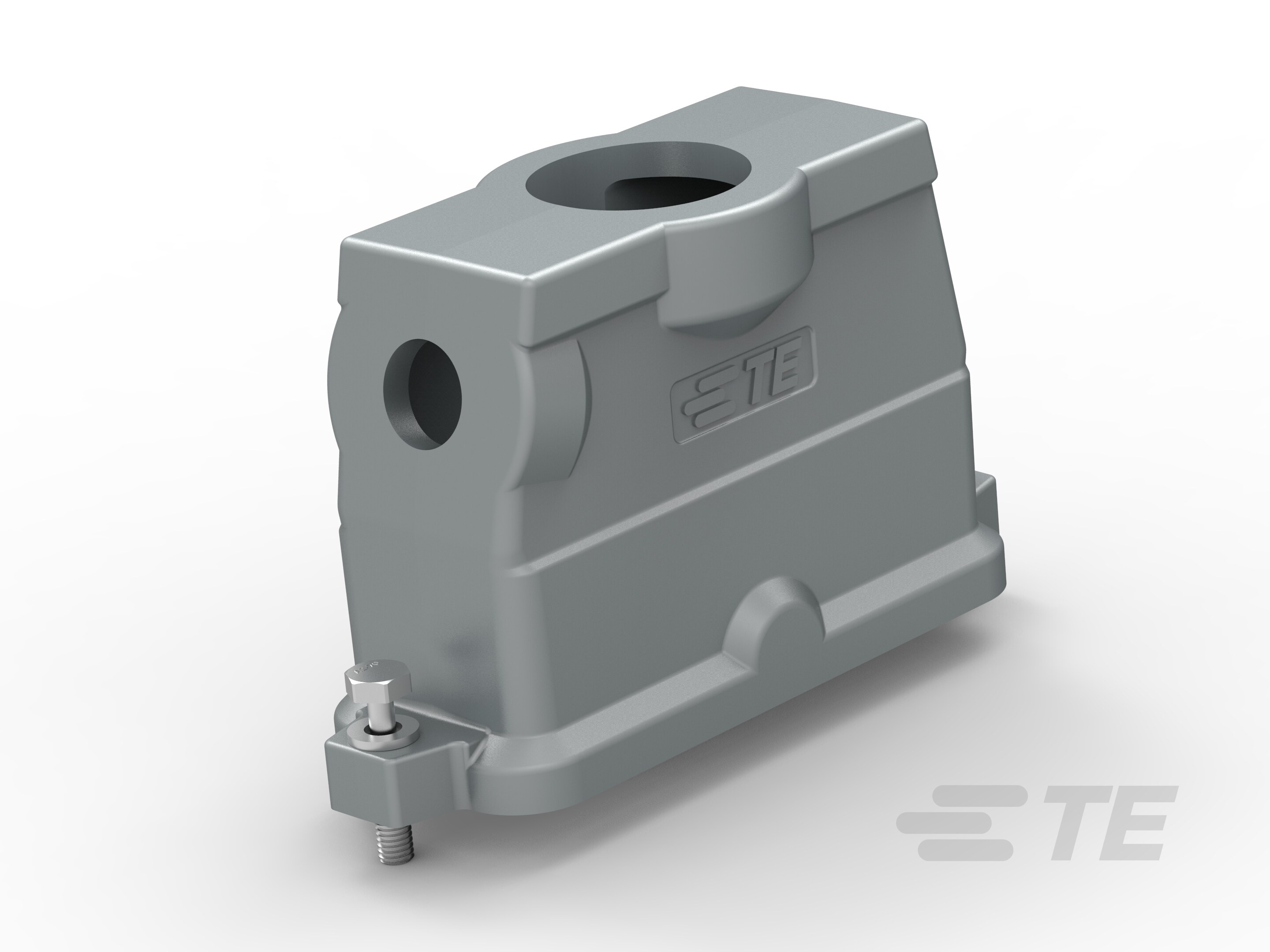

T1902244020-000

Active

TE Connectivity Raychem Cable Protection

T1902244020-000

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

T1902244020-000

Active

TE Connectivity Raychem Cable Protection

T1902244020-000

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	T1902244020-000

Connector Type	Hood
Housing Color	Gray
Housing Finish	Powder Coated
Housing Material	Aluminum Alloy, Die Cast
Ingress Protection	IP68 - Dust Tight, Waterproof
Lock Location	Screw Locks on Hood
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	H24B
Size / Dimension [x]	156 mm
Size / Dimension [x]	6.142 in
Size / Dimension [y]	2.244 "
Size / Dimension [y]	57 mm
Size / Dimension [z]	3.543 in
Size / Dimension [z]	90 mm
Style	Side and Top Entry
Thread Size	M40, M20

T190 Series

Part	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Housing Material	Housing Finish	Housing Color	Features	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Thread Size	Ingress Protection	Style	Lock Location	Size	Size / Dimension [z]	Size / Dimension [y]
TE Connectivity Raychem Cable Protection T1902163240-109	80 mm	3.15 "	5.118 in	2.094 "	53.2 mm	130 mm	Aluminum Alloy Die Cast	Powder Coated	Black	Corrosion Resistant EMC Resistant	Hood	125 °C	-40 °C	M32 M40	IP68 - Dust Tight Waterproof	Side and Top Entry	Screw Locks on Hood	H16B
TE Connectivity Raychem Cable Protection T1902241232-000		3.543 in	6.142 in	2.244 "		156 mm	Aluminum Alloy Die Cast	Powder Coated	Gray		Hood	125 °C	-40 °C	M32	IP68 - Dust Tight Waterproof	Side and Top Entry	Screw Locks on Hood	H24B	90 mm	57 mm
TE Connectivity Raychem Cable Protection T1902240229-009	3.543 " 90 mm				2.094 " 53.2 mm	5.591 " 142 mm	Aluminum Alloy Die Cast	Powder Coated	Black	Corrosion Resistant EMC Resistant	Hood	125 °C	-40 °C	PG29	IP68 - Dust Tight Waterproof	Side and Top Entry	Screw Locks on Hood	H24B
TE Connectivity Raychem Cable Protection T1902243240-000		3.543 in	6.142 in	2.244 "		156 mm	Aluminum Alloy Die Cast	Powder Coated	Gray		Hood	125 °C	-40 °C	M32 M40	IP68 - Dust Tight Waterproof	Side and Top Entry	Screw Locks on Hood	H24B	90 mm	57 mm
TE Connectivity Raychem Cable Protection T1902244020-000		3.543 in	6.142 in	2.244 "		156 mm	Aluminum Alloy Die Cast	Powder Coated	Gray		Hood	125 °C	-40 °C	M20 M40	IP68 - Dust Tight Waterproof	Side and Top Entry	Screw Locks on Hood	H24B	90 mm	57 mm
TE Connectivity Raychem Cable Protection T1902242240-000		3.543 in	6.142 in	2.244 "		156 mm	Aluminum Alloy Die Cast	Powder Coated	Gray		Hood	125 °C	-40 °C		IP68 - Dust Tight Waterproof	Side and Top Entry	Screw Locks on Hood	H24B	90 mm	57 mm
TE Connectivity Raychem Cable Protection T1902241240-000		3.543 in	6.142 in	2.244 "		156 mm	Aluminum Alloy Die Cast	Powder Coated	Gray		Hood	125 °C	-40 °C		IP68 - Dust Tight Waterproof	Side and Top Entry	Screw Locks on Hood	H24B	90 mm	57 mm
TE Connectivity Raychem Cable Protection T1902244025-000		3.543 in	6.142 in	2.244 "		156 mm	Aluminum Alloy Die Cast	Powder Coated	Gray		Hood	125 °C	-40 °C	M25 M40	IP68 - Dust Tight Waterproof	Side and Top Entry	Screw Locks on Hood	H24B	90 mm	57 mm
TE Connectivity Raychem Cable Protection T1902101229-000											Hood	125 °C	-40 °C	PG29	IP65 - Dust Tight Water Resistant	Side and Top Entry	Screw Locks on Hood	H10B
TE Connectivity Raychem Cable Protection T1900102232-000											Hood	125 °C	-40 °C	M32	IP65 - Dust Tight Water Resistant	Side and Top Entry	Screw Locks on Hood	H10B

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	20	$ 29.36

Description

General part information

T190 Series

Hood Connector Side and Top Entry M20 and M40 H24B IP68 - Dust Tight, Waterproof
