TJA1124BHG/0Z

Active

NXP USA Inc.

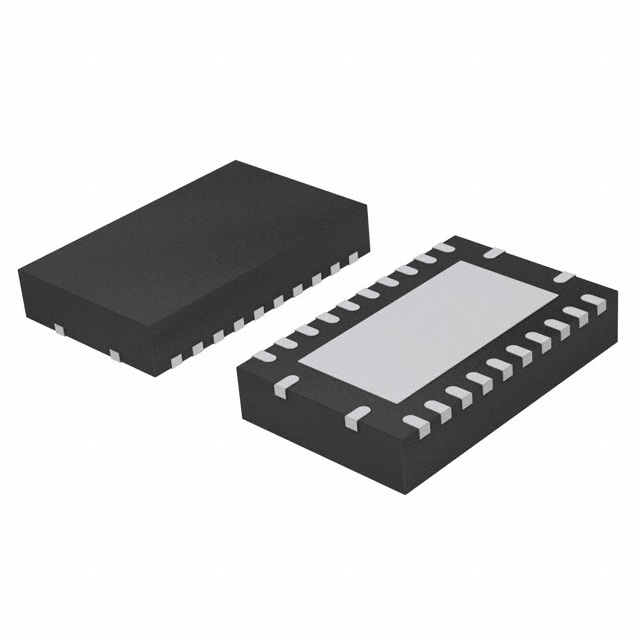

IC TRANSCEIVER FULL 4/4 24DHVQFN

Search across all available documentation for this part.

Active

NXP USA Inc.

IC TRANSCEIVER FULL 4/4 24DHVQFN

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	TJA1124BHG/0Z	TJA1124 Series

Data Rate	20 kBd	20 kBd
Duplex	Full	Full
Grade	Automotive	Automotive
Mounting Type	Surface Mount	Surface Mount
Number of Drivers/Receivers [custom]	4	4
Number of Drivers/Receivers [custom]	4	4
Operating Temperature [Max]	150 °C	150 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	24-VFQFN Exposed Pad	24-VFQFN Exposed Pad
Protocol	LIN	LIN
Qualification	AEC-Q100	AEC-Q100
Supplier Device Package	24-DHVQFN	24-DHVQFN
Supplier Device Package [x]	5.5	5.5
Supplier Device Package [y]	3.5	3.5
Type	Transceiver	Transceiver
Voltage - Supply [Max]	28 V	28 V
Voltage - Supply [Min]	5 V	5 V

IC TRANSCEIVER FULL 4/4 24DHVQFN

Part	Qualification	Type	Duplex	Mounting Type	Voltage - Supply [Min]	Voltage - Supply [Max]	Package / Case	Number of Drivers/Receivers [custom]	Number of Drivers/Receivers [custom]	Data Rate	Operating Temperature [Max]	Operating Temperature [Min]	Grade	Protocol	Supplier Device Package	Supplier Device Package [x]	Supplier Device Package [y]
NXP USA Inc. TJA1124BHG/0Z	AEC-Q100	Transceiver	Full	Surface Mount	5 V	28 V	24-VFQFN Exposed Pad	4	4	20 kBd	150 °C	-40 °C	Automotive	LIN	24-DHVQFN	5.5	3.5
NXP USA Inc. TJA1124AHG/0Z	AEC-Q100	Transceiver	Full	Surface Mount	5 V	28 V	24-VFQFN Exposed Pad	4	4	20 kBd	150 °C	-40 °C	Automotive	LIN	24-DHVQFN	5.5	3.5

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4/4 Transceiver Full LIN 24-DHVQFN (5.5x3.5)
