Q-2C0420005009i

Active

Amphenol Custom Cable

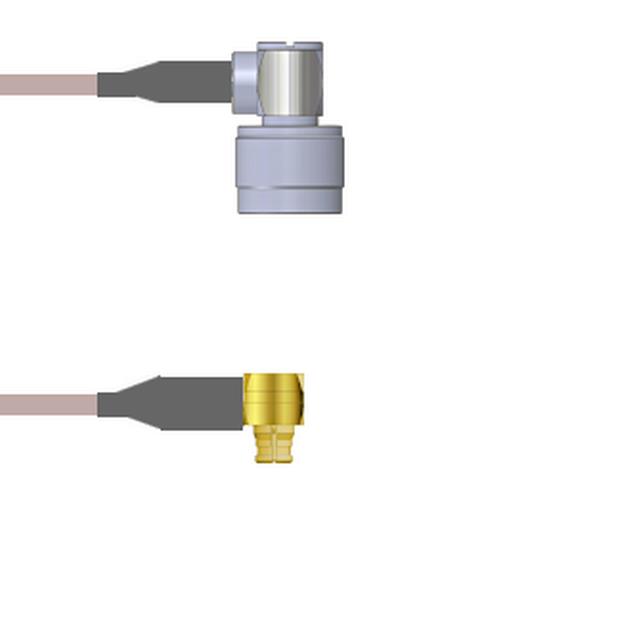

CBL ASSY SMP-NTYPE PLUG-PLUG 9"

Deep-Dive with AI

Search across all available documentation for this part.

Q-2C0420005009i

Active

Amphenol Custom Cable

CBL ASSY SMP-NTYPE PLUG-PLUG 9"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-2C0420005009i

1st Connector	SMP Plug, Right Angle
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	N-Type Plug, Right Angle
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Type	RG-316
Color	Copper
Features	Shielded
Frequency - Max [Max]	11 GHz
Length	9 "
Length	228.6 mm
Overall Impedance	50 Ohms
Style	SMP to N-Type

Q-2C0420 Series

Part	Cable Type	2nd Contact Gender	Length	Length	Length	Frequency - Max [Max]	Style	1st Connector Mounting Type	2nd Connector Mounting Type	Color	1st Connector	1st Contact Gender	Overall Impedance	2nd Connector	Features	Length [x]	Length [x]
Amphenol Custom Cable Q-2C0420005084i	RG-316	Male	84 in	2.1 m	7 ft	11 GHz	SMP to N-Type	Free Hanging (In-Line)	Free Hanging (In-Line)	Copper	SMP Plug Right Angle	Male	50 Ohms	N-Type Plug Right Angle	Shielded
Amphenol Custom Cable Q-2C0420005060i	RG-316	Male	5 '	1.5 m	5 ft	11 GHz	SMP to N-Type	Free Hanging (In-Line)	Free Hanging (In-Line)	Copper	SMP Plug Right Angle	Male	50 Ohms	N-Type Plug Right Angle	Shielded
Amphenol Custom Cable Q-2C04200030.5M	RG-174	Male	19.69 "	50 cm		11 GHz	SMP to N-Type	Free Hanging (In-Line)	Free Hanging (In-Line)	Black	SMP Plug Right Angle	Male	50 Ohms	N-Type Plug Right Angle	Shielded
Amphenol Custom Cable Q-2C0420003048i	RG-174	Male	48 in	1200 mm	4 ft	11 GHz	SMP to N-Type	Free Hanging (In-Line)	Free Hanging (In-Line)	Black	SMP Plug Right Angle	Male	50 Ohms	N-Type Plug Right Angle	Shielded
Amphenol Custom Cable Q-2C0420003084i	RG-174	Male	84 in	2.1 m	7 ft	11 GHz	SMP to N-Type	Free Hanging (In-Line)	Free Hanging (In-Line)	Black	SMP Plug Right Angle	Male	50 Ohms	N-Type Plug Right Angle	Shielded
Amphenol Custom Cable Q-2C0420003003i	RG-174	Male	3 in	76.2 mm		11 GHz	SMP to N-Type	Free Hanging (In-Line)	Free Hanging (In-Line)	Black	SMP Plug Right Angle	Male	50 Ohms	N-Type Plug Right Angle	Shielded
Amphenol Custom Cable Q-2C0420003001M	RG-174	Male	39.4 in	1 m	3.3 ft	11 GHz	SMP to N-Type	Free Hanging (In-Line)	Free Hanging (In-Line)	Black	SMP Plug Right Angle	Male	50 Ohms	N-Type Plug Right Angle	Shielded
Amphenol Custom Cable Q-2C0420005009i	RG-316	Male	9 "	228.6 mm		11 GHz	SMP to N-Type	Free Hanging (In-Line)	Free Hanging (In-Line)	Copper	SMP Plug Right Angle	Male	50 Ohms	N-Type Plug Right Angle	Shielded
Amphenol Custom Cable Q-2C0420005.25M	RG-316	Male				11 GHz	SMP to N-Type	Free Hanging (In-Line)	Free Hanging (In-Line)	Copper	SMP Plug Right Angle	Male	50 Ohms	N-Type Plug Right Angle	Shielded	9.843 "	250 mm
Amphenol Custom Cable Q-2C04200031.5M	RG-174	Male	59.1 in	1.5 m	4.9 ft	11 GHz	SMP to N-Type	Free Hanging (In-Line)	Free Hanging (In-Line)	Black	SMP Plug Right Angle	Male	50 Ohms	N-Type Plug Right Angle	Shielded

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 96.35
		25	$ 94.48
		50	$ 92.61
		100	$ 90.74
		250	$ 88.87

Description

General part information

Q-2C0420 Series

Cable Assembly Coaxial SMP to N-Type RG-316 9.000" (228.60mm)

Documents

Technical documentation and resources

No documents available
