M402VF-3-010-03NR

Obsolete

Harwin Inc.

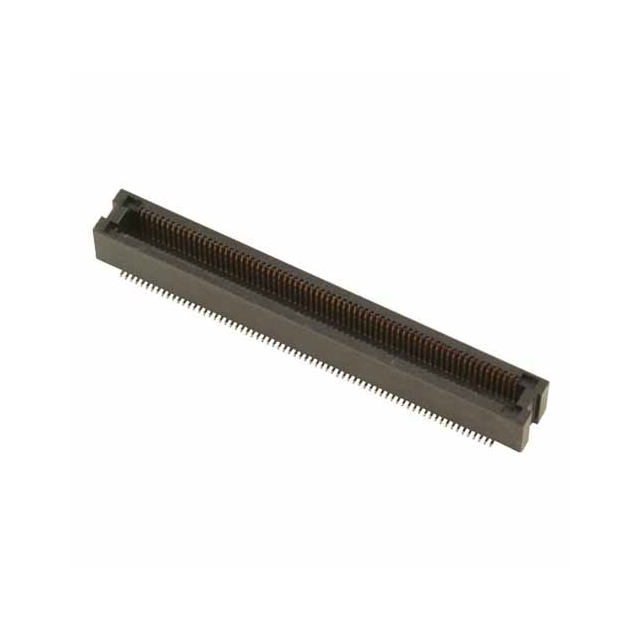

CONN RCPT 10POS SMD TIN

Search across all available documentation for this part.

Obsolete

Harwin Inc.

CONN RCPT 10POS SMD TIN

Technical Specifications

Parameters and characteristics for this part

Specification	M402VF-3-010-03NR

Connector Type	Receptacle, Outer Shroud Contacts
Contact Finish	Tin
Contact Finish Thickness	51.2 Áin
Contact Finish Thickness	1.3 Ám
Features	Pick and Place, Board Guide, Solder Retention
Height Above Board	0.098 in
Height Above Board	2.5 mm
Mated Stacking Heights	3 mm
Mounting Type	Surface Mount
Number of Positions	10
Number of Rows	2
Pitch [x]	0.5 mm
Pitch [x]	0.02 in

Part	Connector Type	Mated Stacking Heights	Contact Finish Thickness	Contact Finish Thickness	Pitch [x]	Pitch [x]	Height Above Board	Height Above Board	Contact Finish	Number of Positions	Features	Number of Rows	Mounting Type	Height Above Board [z]	Height Above Board [z]	Number of Positions
Harwin Inc. M402VF-3-010-03NR	Receptacle Outer Shroud Contacts	3 mm	51.2 Áin	1.3 Ám	0.5 mm	0.02 in	0.098 in	2.5 mm	Tin	10	Board Guide Pick and Place Solder Retention	2	Surface Mount
Harwin Inc. M402VF-3-030-05NR	Receptacle Outer Shroud Contacts	5 mm	51.2 Áin	1.3 Ám	0.5 mm	0.02 in			Tin	30	Board Guide Pick and Place Solder Retention	2	Surface Mount	4 mm	0.157 "
Harwin Inc. M402VF-3-016-02NR	Receptacle Outer Shroud Contacts	2.5 mm	51.2 Áin	1.3 Ám	0.5 mm	0.02 in	0.079 in	2 mm	Tin		Board Guide Pick and Place Solder Retention	2	Surface Mount			16

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

10 Position Connector Receptacle, Outer Shroud Contacts Surface Mount Tin
