CLS-TO11A125S00Y

Active

Lumex Opto/Components Inc.

SWITCH TOGGLE SPST 10A 125V

Search across all available documentation for this part.

Active

Lumex Opto/Components Inc.

SWITCH TOGGLE SPST 10A 125V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

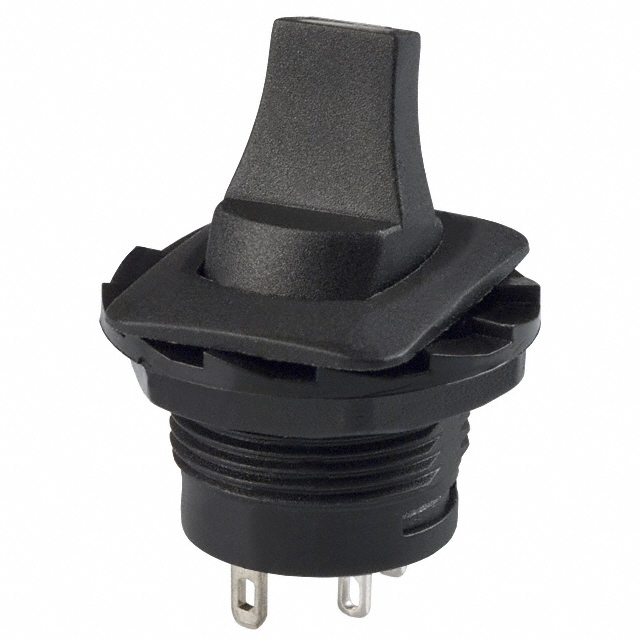

Toggle Switch SPST Panel Mount

Technical documentation and resources

No documents available

Specification	CLS-TO11A125S00Y	CLS-TO11 Series

Actuator Length [x]	13 mm	13 mm
Actuator Type	Flatted	Flatted
Bushing Thread	M18 x 1	M18 x 1
Circuit	SPST	SPST
Current Rating (Amps)	10 A	10 A
Illumination	Illuminated	Illuminated
Illumination Type, Color	LED, Yellow	LED, Green, Yellow, Red
Illumination Voltage (Nominal)	12 VDC	12 VDC
Panel Cutout Dimensions [diameter]	18 mm	18 mm
Switch Function	On-Off	On-Off
Termination Style	Solder Lug	Solder Lug
Voltage Rating - AC	125 V	125 V

Part	Actuator Type	Voltage Rating - AC	Actuator Length [x]	Illumination Voltage (Nominal)	Circuit	Illumination Type, Color	Termination Style	Panel Cutout Dimensions [diameter]	Illumination	Bushing Thread	Switch Function	Current Rating (Amps)
Lumex Opto/Components Inc. CLS-TO11A125S00G	Flatted	125 V	13 mm	12 VDC	SPST	Green, LED	Solder Lug	18 mm	Illuminated	M18 x 1	On-Off	10 A
Lumex Opto/Components Inc. CLS-TO11A125S00Y	Flatted	125 V	13 mm	12 VDC	SPST	LED, Yellow	Solder Lug	18 mm	Illuminated	M18 x 1	On-Off	10 A
Lumex Opto/Components Inc. CLS-TO11A125S00R	Flatted	125 V	13 mm	12 VDC	SPST	LED, Red	Solder Lug	18 mm	Illuminated	M18 x 1	On-Off	10 A
