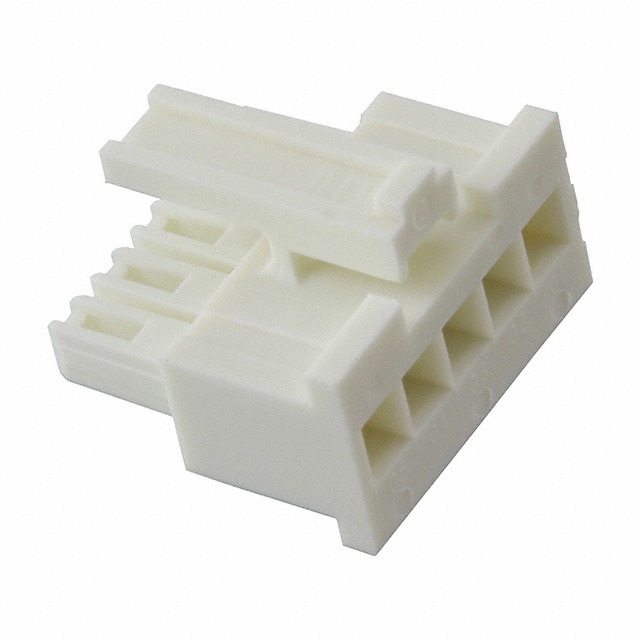

IPD1-05-S-K

Active

Samtec Inc.

CONN RCPT HSG 5POS 2.54MM

Search across all available documentation for this part.

Active

Samtec Inc.

CONN RCPT HSG 5POS 2.54MM

Technical Specifications

Parameters and characteristics for this part

Part	Note	Number of Rows	Features	Connector Type	Row Spacing [x]	Row Spacing	Pitch [x]	Pitch [x]	Contact Type	Insulation Material	Fastening Type	Mounting Type	Number of Positions	Color	Contact Termination
Samtec Inc. IPD1-05-D-GP-M	Contacts Not Included	2	Guide Post	Receptacle	0.1 in	2.54 mm	2.54 mm	0.1 in	Female Socket	Polyamide (PA66) Nylon 6/6	Latch Lock	Free Hanging (In-Line)	10	White	Crimp
Samtec Inc. IPD1-05-S-K	Contacts Not Included	1	Polarizing Key	Receptacle			2.54 mm	0.1 in	Female Socket	Polyamide (PA66) Nylon 6/6	Latch Lock	Free Hanging (In-Line)		White	Crimp
Samtec Inc. IPD1-05-D-R	Contacts Not Included	2		Receptacle	0.1 in	2.54 mm	2.54 mm	0.1 in	Female Socket	Polyamide (PA66) Nylon 6/6	Latch Lock	Free Hanging (In-Line)	10	White	Crimp
Samtec Inc. IPD1-05-D-K-M	Contacts Not Included	2	Pick and Place Polarizing Key	Receptacle	0.1 in	2.54 mm	2.54 mm	0.1 in	Female Socket	Polyamide (PA66) Nylon 6/6	Latch Lock	Free Hanging (In-Line)	10	White	Crimp
Samtec Inc. IPD1-05-D-K-R	Contacts Not Included	2	Polarizing Key	Receptacle	0.1 in	2.54 mm	2.54 mm	0.1 in	Female Socket	Polyamide (PA66) Nylon 6/6	Latch Lock	Free Hanging (In-Line)	10	White	Crimp
