EVALSTGAP2HDM
ActiveDEMONSTRATION BOARD FOR STGAP2HDM ISOLATED 4 A HALF-BRIDGE GATE DRIVER
Deep-Dive with AI
Search across all available documentation for this part.
EVALSTGAP2HDM
ActiveDEMONSTRATION BOARD FOR STGAP2HDM ISOLATED 4 A HALF-BRIDGE GATE DRIVER
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | EVALSTGAP2HDM |
|---|---|
| Function | Gate Driver |
| Supplied Contents | Board(s) |
| Type | Power Management |
| Utilized IC / Part | STGAP2HDM |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
EVALSTGAP2HDM Series

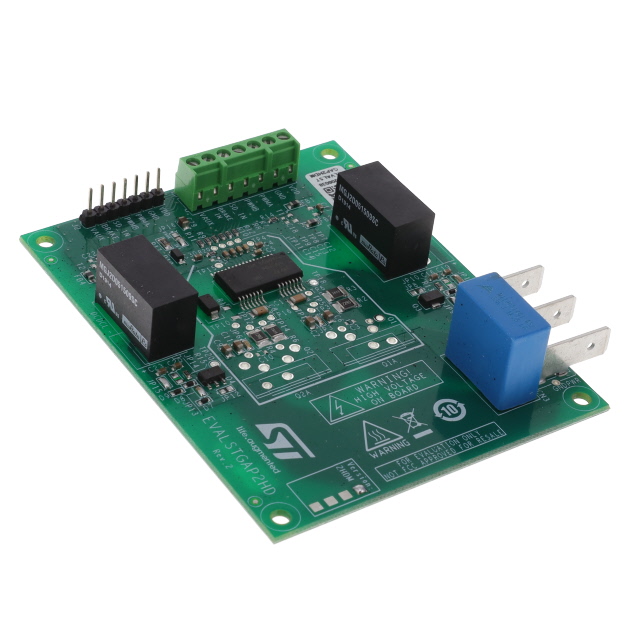

The EVALSTGAP2HDM is an half bridge evaluation board designed to evaluate the STGAP2HD isolated dual gate driver
The gate driver is characterized by 4 A current capability and rail-to-rail outputs, making the device suitable also for high power applications such as motor drivers in industrial applications equipped with MOSFET, IGBT power switches.
The device integrates protection functions: dedicated SD and BRAKE pins are available, UVLO and thermal shutdown are included to easily design high reliability systems, and the interlocking function prevents outputs from being high at the same time.
